5C Shank ER40 Chuck with 15 pcs Collet Set, 1/8&quot; - 1&quot; by 16th

Buy Now

Specifications

attribute-list

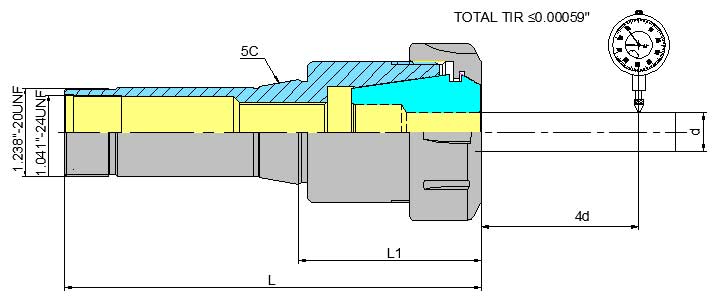

Size	5C ER40
TOTAL TIR	≤0.00059"
Through Coolant	YES
Collet Nut Diameter	2-31/64"
I.D Thread	1.041"-24UNF
Collet Qty	15 Pcs
Collet Range	1/8" - 1"
GROSS WEIGHT	11.57 lbs
Projection L1	2.54"
Overall Length (L)	5.84"
Meas	14.17 x 8.66 x 2.99 in.
Net weight	11.03 lbs

Description

5C Shank ER40 Chuck with 15 pcs Collet Set, 1/8" - 1" by 16th

About this product

1. 15pc ER40 collet set : 1/8" - 1" by 16th (1/8", 3/16", 1/4", 5/16", 3/8", 7/16",1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1")

2. All collets are made of high quality alloy spring steel 0.0005" accuracy

3. I.D Thread is 1.041"-24UNF, O.D is 1.238-20UNF

4. 1pc5C-ER40 collet chuck, 15PCS ER40 collets, 1pc ER40 spanner

1. 15pc ER40 collet set : 1/8" - 1" by 16th (1/8", 3/16", 1/4", 5/16", 3/8", 7/16",1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1")

2. All collets are made of high quality alloy spring steel 0.0005" accuracy

3. I.D Thread is 1.041"-24UNF, O.D is 1.238-20UNF

4. Hardened and precision ground

5. 1pc 5C-ER40 collet chuck, 15PCS ER40 collets, 1pc ER40 spanner

6. Fitted plastic case
