NEW nc servo feeder steel coil feeder press machine for thin plate

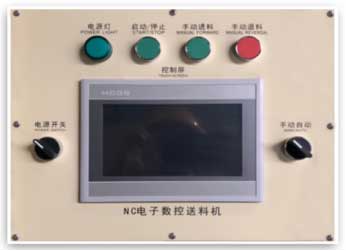

1. The human-machine interface adopts Taiwan PanelMaster 's 7-inch high-definition large screen with uniform color and fine texture.It is used in most industrial environments,supports serial port and network communication synchronously and has high reliability.

2. The switch adopts sliding contact with self-cleaning function. Normal closed and normal open contacts use separate knot structure, which can work at different poles, with anti-rotation positioning and loose mounting gasket.

3. It uses self-resetting flat button, which is light in weight, moderate in key stroke and adopts modular structure. The contact adopts a ketone-based composite point, which has strong electrical conductivity and large carrying current, and its life span is 1 million times.

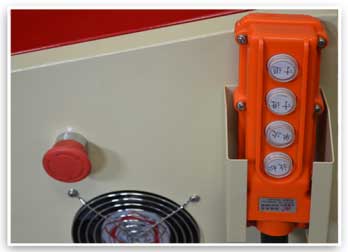

Operating handle

1. The electric control box has a separate operation box , which is convenient to change position and save time. And it is water-proof and dust-proof, with high material strength, good electrical conductivity and long service life.

2. The electric control box is equipped with an emergency stop button, which is safe and reliable, and effectively reduces the opening and closing of the electric control box and protects the operation panel.

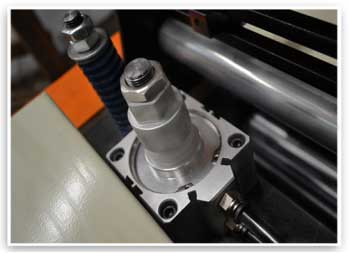

Feed cylinder

It adopts genuine AirTAC cylinder, alloy cylinder, hard oxidation, riveting without leaking.It uses solid aluminum for CNC precision machining. And the inner wall is smooth and not stuck.Therefore it has high working efficiency, high strength operation and durability that is suitable for various working conditions.

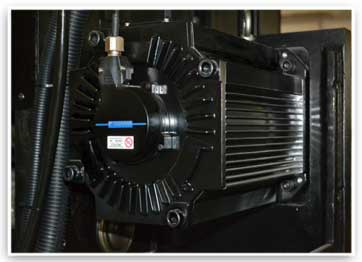

Servo Motor

Both the servo motor and the driver use the Yaskawa brand (optional) to greatly improve the performance of the device and maximize device performance and solve problems.

Yaskawa's original "free adjustment function" is further deepened. There is no need for tedious tuning work and its operation is stable. It can be used in harsh environments and is energy-saving, and meets safety standards for visualization.

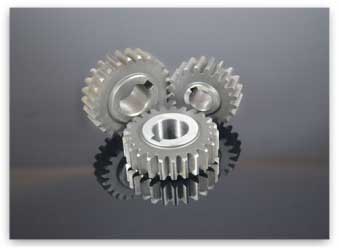

Transmission gear

The gear processing process includes the following processes: gear grinding processing - tooth surface processing - heat treatment- tooth surface finish grinding. The hair cultivating parts are mainly used for forging, and the normalizing treatment is carried out to improve the cutting.

The gears are designed according to the drawings, followed by roughing, and then semi-finishing, car, rolling, and gear shaping, so that the gears are basically formed;then heat treatment is performed to improve the mechanical properties. According to the design requirements of the drawings, the final finishing, finishing the benchmark, finishing the tooth type. After the above treatment, our gear grade can reach 6 grades, high wear resistance, high strength and long service life.

Parts Brand:

1.     Bearing: Ha Er Bing, Or Wa Fang Dian (Chinese top brand)

2.     Servo motor: Yaskawa, Dahua

3.     User-machine interface screen: Ping Tong (Taiwan good brand)

4.     PLC: MITSUBUSHI (Japanese good brand)

5.     Electromagnetic valve: Pu Nan( Chinese good brand

6.     Pneumatic cylinder: AirTAC (Taiwan brand)

7.     Electric transformer: Jin Huan Long (Chinese good brand)

8.     Proximity switch: Ming Wei (Taiwan good brand)

9.     Switch power: Ming Wei (Taiwan good brand)

10.  Electric relay: Omron (Japanese good brand)

11.  General switch, contactor, button switch, lamp: CHINT (Chinese good brand)
