40mm Rotary Pneumatic Cylinder, Vane Type 1pc
Brief
Description
Magnetic adjustable rotating vane cylinder for sale, bore size 20mm, 30mm, and 40mm, thickened base design, strong impact resistance, making rotary vane cylinder pressure resistant and stable. Rotary actuator cylinder small in size, easy to carry and store.
Specification
| Model | SCJ009687 | ||
| Bore Size | 20mm | 30mm | 40mm |
| Swing Angle | 90°, 180°, 270° | ||
| Fluid Used | Air (no oil) | ||
| Pressure Resistance Test Pressure | 1.5MPa | ||
| Ambient Temperature and Fluid Temperature | 5~ 60°C | ||
| Maximum Operating Pressure | 0.7MPa | 1.0MPa | |
| Minimum Operating Pressure | 0.15MPa | ||
| Swing Time Adjustment Range （Note 1) | 0.03~0.3 s/90° | 0.04~0.3 s/90° | 0.07~0.5 s/90° |
| Allowable Kinetic Energy (Note 2) | 0.003J | 0.02J | 0.04J |
| 0.0004J | 0.015J | 0.03J | |
| Allowable Radial Load | 25N | 30N | 60N |
| Allowable Axial Load | 20N | 25N | 40N |
| Vent Position | Main body side or axial | ||
| Size of the Opening (Body Side, Axial Direction) | M5 | ||
| Adjustable Angle Range of Components (Note 3) | 0~240° | 0~230° | |
- Note 1: If the speed limit exceeds the upper limit (0.3s/90°), crawling or inactivity may occur, so it should be used within the adjustable speed range.
- Note 2: The upper part of the table shows the kinetic energy value when the pad cushion is used (for the swing end), and the lower part shows the kinetic energy value when the pad cushion is not used.
- Note 3: The adjustment range in the table is 270°.
Features
- Thickened base, strong impact resistance, making the rotary vane cylinder stable and compressive.
- The cylinder body of the rotary vane cylinder is thick, smooth and burr-free inside, with high-quality double sealing rings, the sealing performance is good, smooth and not stuck.
- The piston rod is made of stainless steel fine grinding, which is strong and hard, wear-resistant and air-leakage-proof.
- High-strength cap end, strong impact resistance, improve the overall stability of the rotary vane cylinder, extend rotary cylinder life.

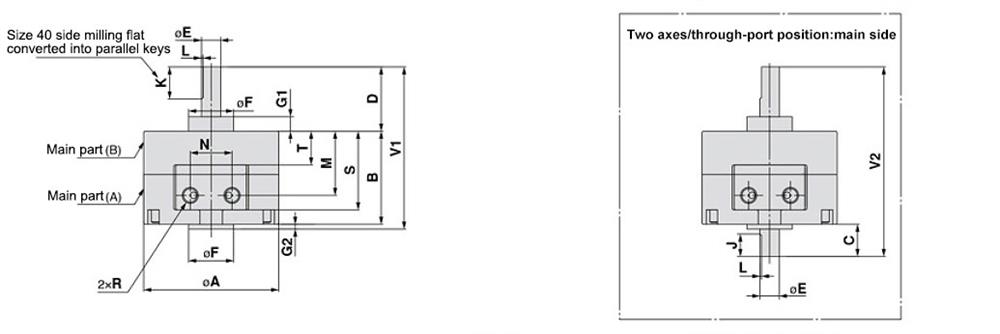

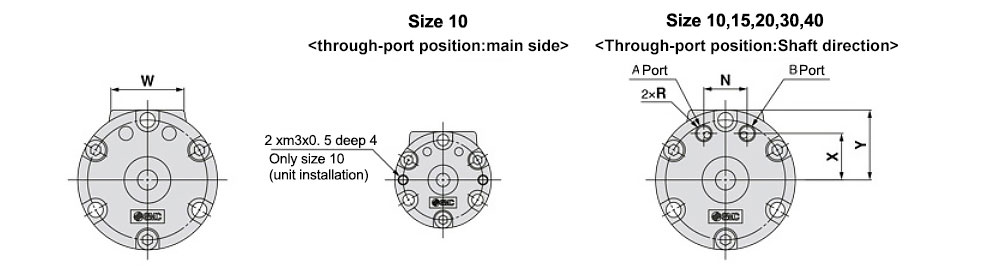

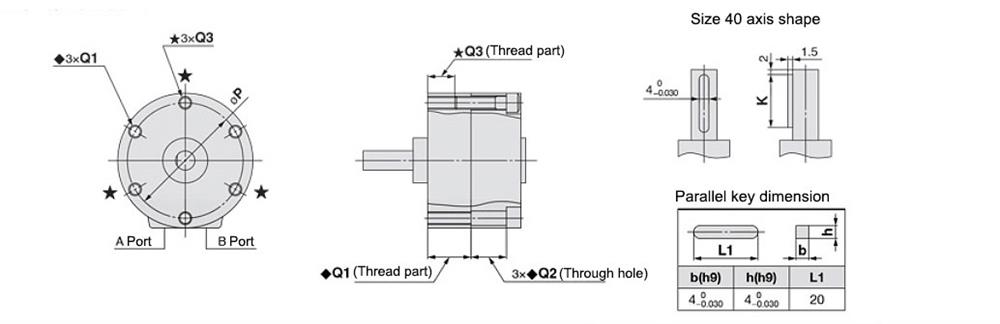

Dimension (Unit mm)
| Size | A | B | C | D | E (g7) | F (h9) | G1 | G2 | J | K | M | N | P |
| 10 | 29 | 15 | 8 | 14 | 4-0.004 -0.016 | 90-0.006 | 3 | 1 | 5 | 9 | 9.5 | 9.5 | 24 |
| 15 | 34 | 20 | 9 | 18 | 5-0.004-0.016 | 120-0.043 | 4 | 1.5 | 6 | 10 | 14 | 10 | 29 |
| 20 | 42 | 29 | 10 | 20 | 6-0.004 -0.016 | 140-0.043 | 4.5 | 1.5 | 7 | 10 | 20 | 13 | 36 |
| 30 | 50 | 40 | 13 | 22 | 8-0.004-0.016 | 160-0.043 | 5 | 2 | 8 | 12 | 26 | 14 | 43 |
| 40 | 63 | 45 | 15 | 30 | 10-0.004 -0.016 | 250-0.052 | 6.5 | 4.5 | 9 | 20 | 31 | 20 | 56 |
| Size | Q1 | Q2 | Q3 | R | S | T | V1 | V2 | W | X | Y |
| 10 | M3x0.5 Deep6 | 6 | / | M3x0.5 | 14 | 3.6 | 30 | 37 | 19.8 | 8.5 | 14.5 |
| 15 | M3x0.5 Deep10 | 6 | M3X0.5 Deep 5 | M3x0.5 | 19 | 7.6 | 39.5 | 47 | 21 | 11 | 17 |
| 20 | M4x0.7 Deep13.5 | 11 | M4X0.7 Deep 7.5 | M5x0.8 | 24.5 | 10.5 | 50.5 | 59 | 22 | 14 | 21 |
| 30 | M5x0.8 Deep18 | 16.5 | M5X0.8 Deep 10 | M5x0.8 | 34.5 | 14 | 64 | 75 | 24 | 15.5 | 25 |
| 40 | M5x0.8 Deep16 | 17.5 | M5X0.8 Deep 10 | M5x0.8 | 39.8 | 17 | 79.5 | 90 | 30 | 21 | 31.6 |
Tips: What is a rotary actuator?
Rotary actuators are cylinders that are used to provide rotary or angular movements, allowing oscillating movements within a defined angle. They are durable and provide relatively high forces (torques) for their size. Rotary actuators simplify design and can reduce maintenance problems.
Rotary cylinders are pneumatic actuators that use compressed air to drive the output shaft in a reciprocating rotary motion over a range of angles. Rotary actuators are used for turning and pulling objects, turning, sorting, clamping, opening and closing valves, and for robot arm movements.
