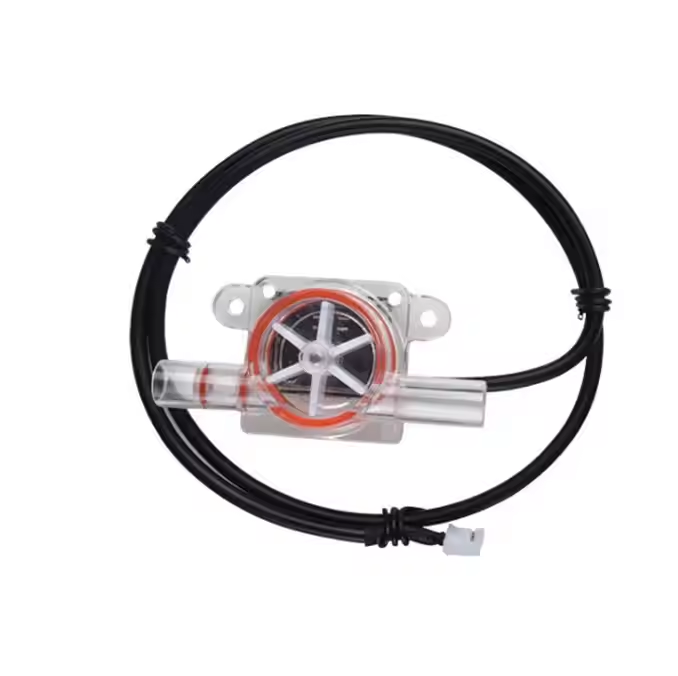

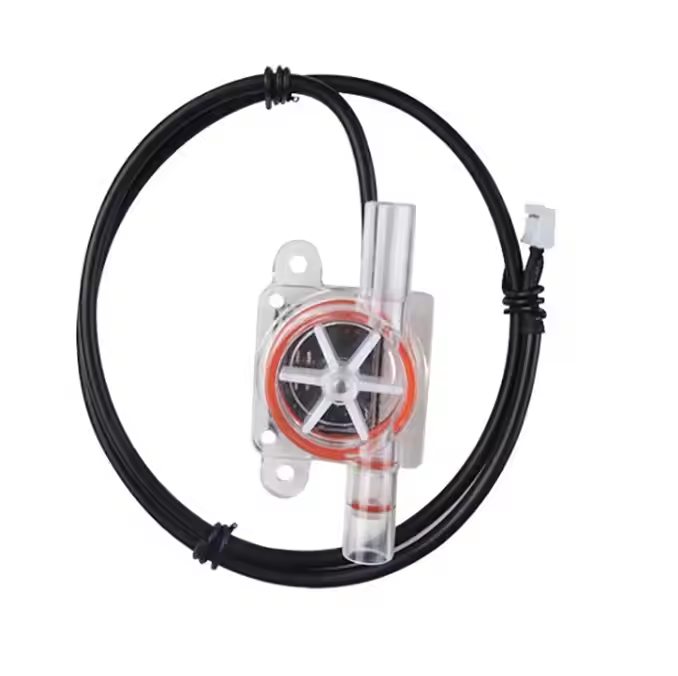

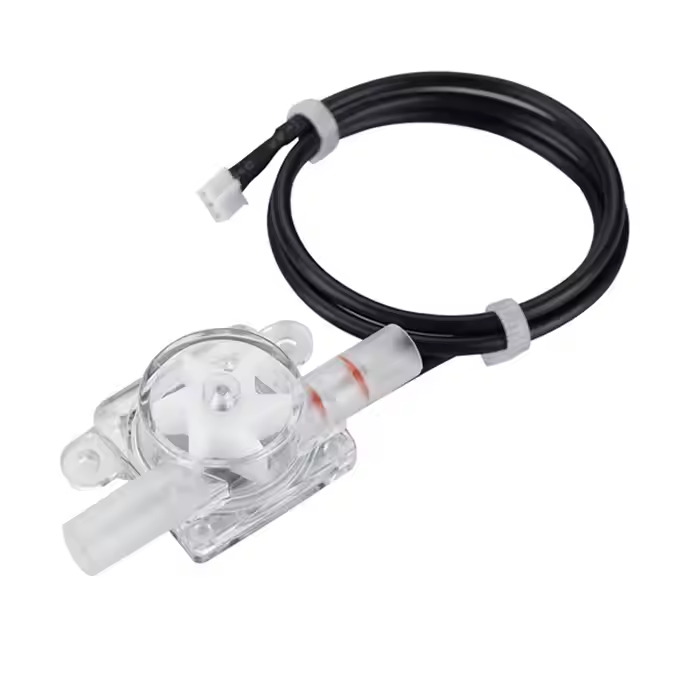

Micro Optical Water Flow Sensor Heat Pump Water Flow Switch Sensor PVC Fluid Water Flowmeter Switching Sensor

01.Small size, light weight, and convenient installation

02. High flow accuracy, good reliability, and long service life

03.Photoelectric type does not cause secondary pollution to water quality

Buy Now

Technical Parameters

Use

Electrical appliances and equipment's etc.

Other attributes

Mounting Type

Built in installation

Description

High and low levels

Model Number

SCJ2300126J

Type

Liquid Level Sensor

Series

Tubular water flow sensor

Features

Terminal Link

Place of Origin

China

Brand Name

SCJ

Theory

Any direction liquid detecting

Output

Description

Water flow sensor

working voltage

12-24V

Water output voltage

<0.3V

Waterless output voltage

>11.5V

Working current

<12mA

working temperature

-20℃~100℃

Storage temperature

-40℃~120℃

working life

30000H

Packaging and delivery

Selling Units:

Single item

Single package size:

10X10X10 cm

Single gross weight:

0.500 kg

Description

This micro-optical water flow sensor detects liquid movement in heat pumps, PVC piping, and water heaters. It works by sending ‌on/off electrical signals‌ when water flows or stops, helping control connected devices like heat pump units‌.
