Mini On-On PCB Slide Switch SPDT 0.5A 36VDC

Buy Now

Specifications

Attributes List
Actuation	Latching
MOQ	5
Contact Configuration	SPDT
Contact Rating	0.5A 36VDC
Current Rating	0.5A
Electrical Life	10,000 Cycles
Mounting Style	PCB
Number of Poles	1
Number of Positions	2
Operating Temperature	0°C to +85°C
Switch Operation	On-On
Terminal Type	PCB
Voltage Rating	36VDC

Description

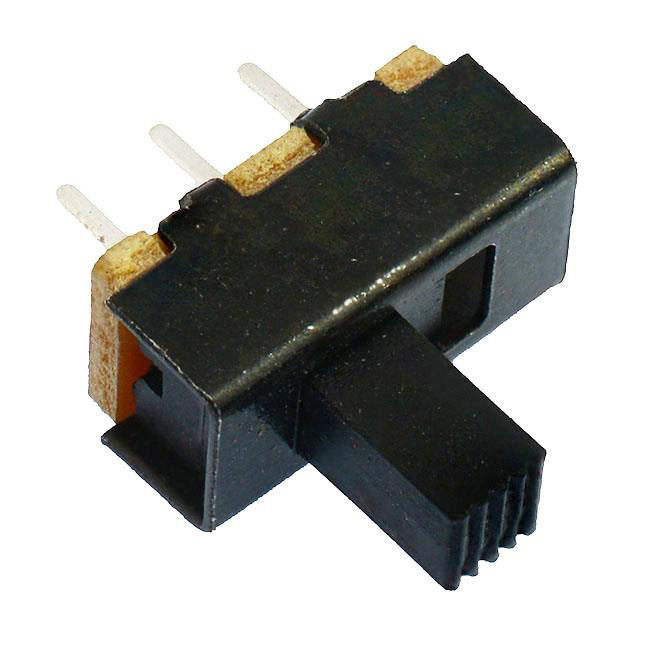

Miniature On-On vertical slide switch featuring SPDT contacts, suitable for PCB mounting.

On-On operation

SPDT contacts

Rating: 0.5A 36VDC

Actuator height: 5mm

Terminal pitch: 3.2mm

Dimensions: 5.8 x 11.5 x 13.8mm (Width x Length x Height)
