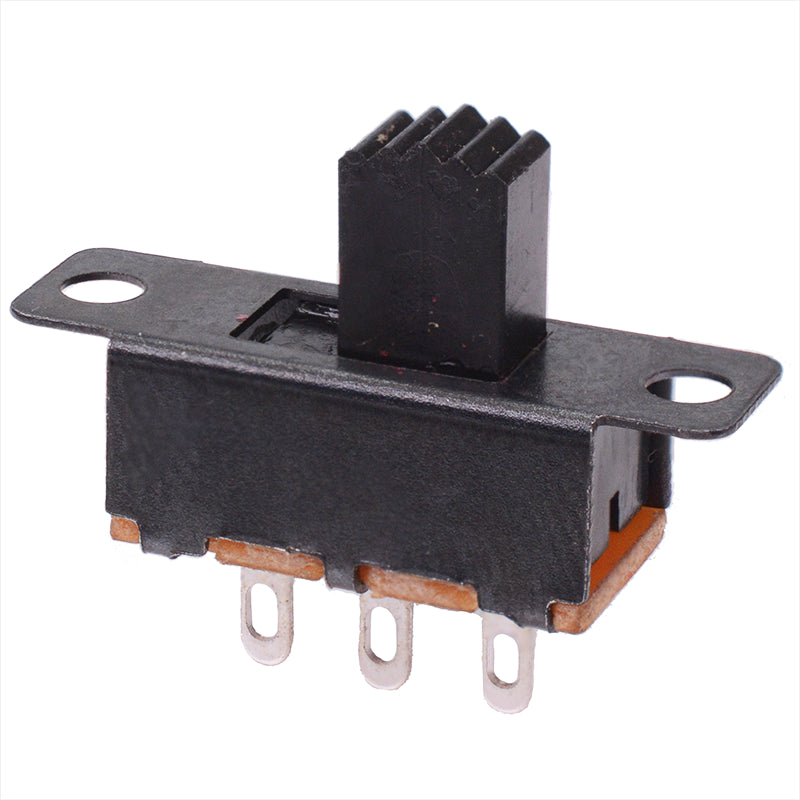

Miniature On-On Slide Switch 3-Pin SPDT

Buy Now

Specifications

Attributes List
Actuation	Latching
MOQ	5
Contact Configuration	SPDT
Contact Rating	0.5A 50VDC
Current Rating	0.5A
Electrical Life	10,000 Cycles
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	50VDC

Description

Miniature slide switch with SPDT contacts and solder tag terminals suitable for a wide range of applications.

SPDT contacts

On-On action

Screw holes 19mm apart

7mm actuator height

Dimensions: 24 x 19 x 7.5mm (Length x Height x Width)
