1.5 kW CNC ATC Spindle, 60000 rpm
Brief
Description
Low cost 1.5 kW water cooled ATC spindle motor, 60000 rpm speed, 0.28 Nm torque, Φ3- Φ6 collet, 1000Hz frequency, 3 phase 220V AC rated voltage, widely used in CNC drilling and milling equipment.
Features
- Reasonable structure design, simple and compact configuration, easy to take apart.
- High precision, inflexibility and efficiency, long operation life.
- With high grade size, shape, position precision, and quality of the surface.
- Enough abrasive resistance, vibration resistance, suitable size.
- Work stable, low noise, enough fatigue strength.
Specifications
| Model | SCJ009535 |
| Motor power | 1500 W |
| Rated voltage | 200V AC |
| Phase | Three phase |
| Max speed | 60000 rpm |
| Max current | 10 A |
| Max frequency | 1000 Hz |
| Torque | 0.28 N·M |
| Cone at the end of the shaft pulsates | ≤0.001 mm |
| Tooling releasing air pressure | 5.6-6.0 Kgf/cm² |
| Tooling change method | Automatic tool changer |
| Tooling pulling force | ≥1200 N |
| Tooling back air pressure | No |
| Tooling connection | Φ3- Φ6 collet |
| Cooling | Water cooling |
| Encoder | No |
| Coolant pressure | ≥2.5 Kgf/cm² |
| Approach switch | No |
| Bearing lubrication method | Grease |
| Balance level | G1 |
| Install method | Clamp |
| Vibration Value | ≤0.8 mm/s |
| Weight | 3.9 Kg |
Note: The spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor. Otherwise, it will burn the spindle motor if the settings are not correct.

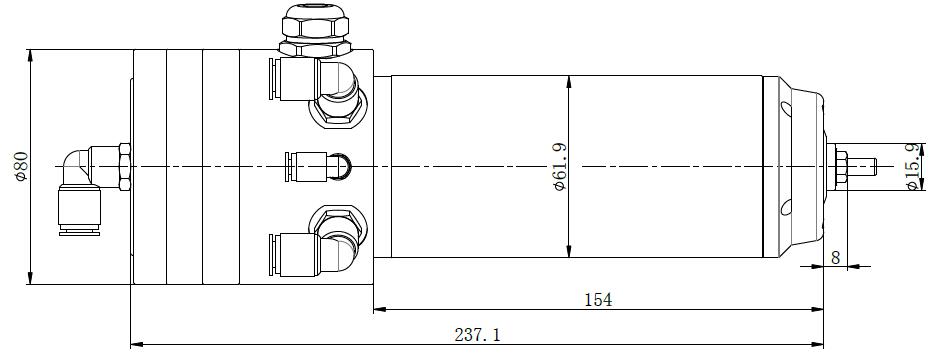

Dimension (Unit: mm)

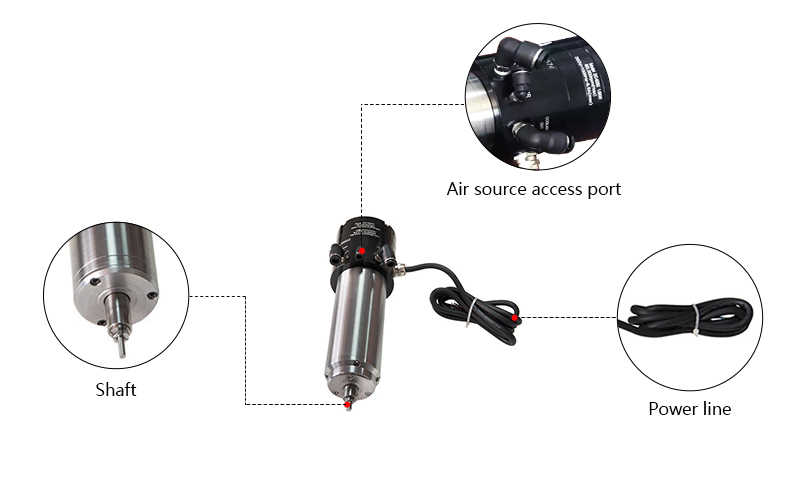

Details
Tips: Working Principle of the ATC Spindle
The rear part of the main shaft is a cylinder structure. The inside of the cylinder uses air pressure to push the thimble against the middle rod to extend the chuck so that the tool falls off, and then the equipment can use the shaft platform to automatically grab the tool. The solenoid valve at the back of the spindle is used to release the air pressure to clamp the tool. This process is called automatic tool change, or ATC for short.
