1.5hp (1.2kW) Pneumatic Vane Air Motor 3000rpm
from
$464.45
Ex Tax: $464.45
- Stock: In Stock
- Model: SCJ009597
- SKU: SCJ009597
- UPC: 315972715624
Products Sold: 0
Product Views: 380
Ask a Question About This Product
- Description
1.5hp (1.2kw) Pneumatic Vane Air Motor
Brief
1200 watt pneumatic vane air motor with maximum torque rotated speed 300rpm, three kinds of installation methods can be chosen, gray color. It is widely used in rock drilling of mine, drilling, ship, metallurgy, chemical engineering, and papermaking etc.
Description
Lower cost vane air motor online for sale, with 1.7hp rated power, 3000rpm rotate speed, 78 cfm air consumption. Light weight, easy to operate, low noise and long lifetime.
Specification
| Model | Operation Data | Maximum Torque | Weight | Installation Method | Color | Certification | Warranty | ||||||||
| Power | Torque | Rotate Speed | Air Consumption | Rotate Speed | Torque | ||||||||||
| hp | kW | Nm | lb.in | rpm | m³/ h | cfm | rpm | Nm | lb.in | kg | |||||

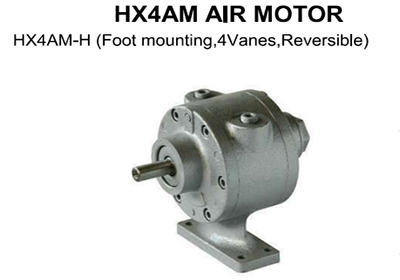

| HX4AM-H | 1.5 | 1.2 | 4.1 | 36 | 3000 | 132.5 | 78 | 300 | 6.3 | 56 | 3.3 | Foot Mounting | Gray | CE | 12 months |

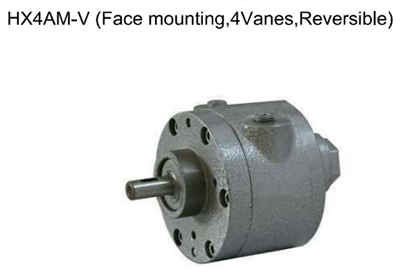

| HX4AM-V | 3.5 | Face Mounting | |||||||||||||

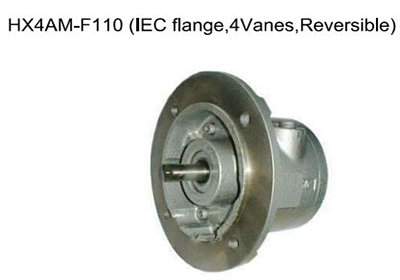

| HX4AM-F110 | 4.7 | IEC Flange | |||||||||||||

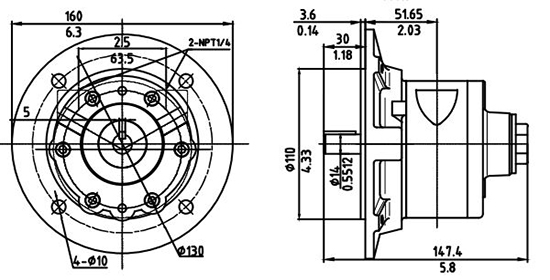

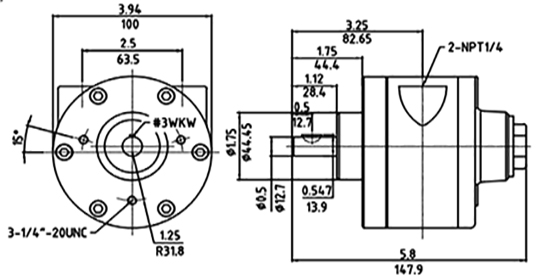

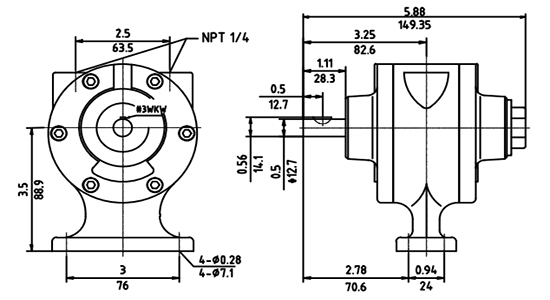

Dimension (unit=inch/mm)
Details
Tips: The Features of Pneumatic Vane Air Motor.
Van air motors have some prominent characteristics, in some industrial occasions. It is more suitable than electric motors and hydraulic motors. These features are:
- It has explosion-proof performance. Due to the characteristics of the working medium of the air motor and the consideration of structural design, it can not produce sparks during work, so it is suitable for explosive, high temperature and dusty occasions, and can be used in extremely humid air Environment without the risk of leakage.
- The soft characteristics of the motor itself enable it to work at full load for a long time, with a small temperature rise and overload protection.
- It has higher starting torque and can start with load.
- Easy to follow directions. The operation is simple, and stepless speed regulation can be realized.
However, pneumatic motors also have shortcomings such as low output power, large air consumption, low efficiency, high noise, and easy vibration.
