1 hp (750W) 1-phase/3-Phase AC Gear Motor Ratio 3~100
from
$811.69
Ex Tax: $811.69
- Stock: In Stock
- Model: SCJ009243
- SKU: SCJ009243
Products Sold: 0
Product Views: 930
Available Options
Ask a Question About This Product
- Description
1 hp (750W) 1-phase/3-Phase AC Gear Motor, Ratio 3~100
Brief
3-phase AC gear motor works at 1 hp rated power, gear ratio 3:1~100:1 for selection, torque 1.1~43.2 kg.m, shaft diameter 28mm/32mm, power supply 1-phase/3-phase 110V/220V/380V, horizontal/vertical installation. 750W electric gear motor can operated with a 90V brake to control power cutting.
Description
1 hp 3 -phase AC gear motor is the electric motor for speed control, producing high torque, matched brake is optional, different gear ratio to choose (3~100:1), the smaller reduction ratio, the higher gearbox output speed.
Basic Specification
Model | SCJ009243((Ratio:3~25) , SOCOJE-CH32-750((Ratio:30~120) |
Rated Power | 750W (1 hp) |
Rated Voltage | Single-phase 110V, 50/60Hz Single-phase 220V, 50/60Hz 3-phase 220V, 50/60Hz 3-phase 380-415V, 50/60Hz |
Gear Ratio | 3:1/ 5:1/ 10:1/ 15:1/ 20:1/ 25:1/ 30:1/ 40:1/ 50:1/ 60:1/ 70:1/ 80:1/ 90:1/ 100:1 |
Working Efficiency | 75% |
Insulation Grade | Class B, Class F can be customized |
Protection Grade | IP54 |
Duty | Continuous running |
Working Environment | Temperature 10℃~+40℃ Humidity ≤90% |
Pole | 4P (6P) |
Working Height | ≤1000m |
Standard | GB755/IEC-60034 |
Download Attachments | 750W 3 Phase AC Gear Motor Datasheet |

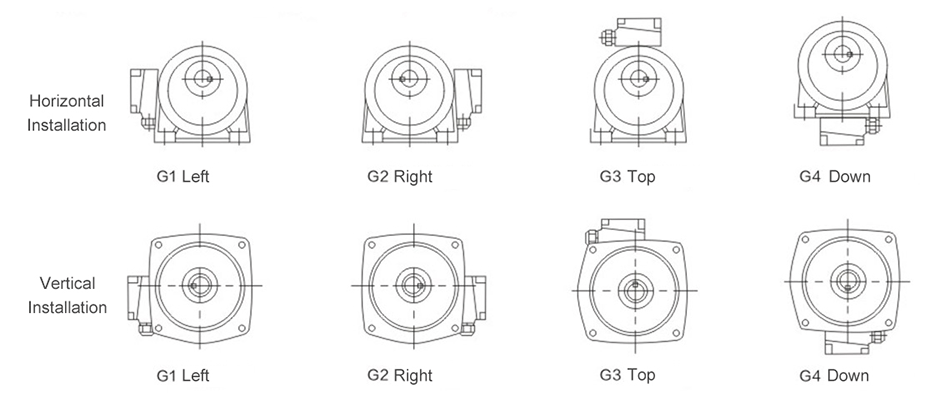

Terminal Box Direction (From Output Shaft)

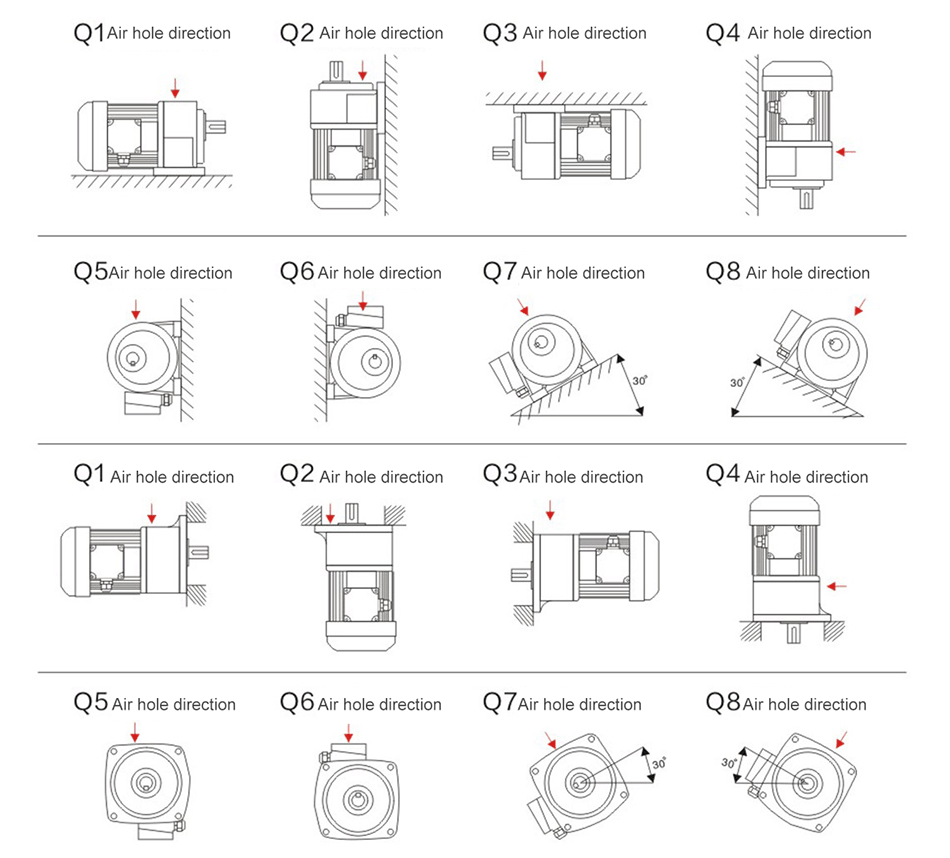

AC Gear Motor Standard Installation
- All the SOCOJE 3-phase AC gear motors are suitable for this installation method, as shown in the following diagram.
- In the diagram, Q1, Q4, Q7, Q8 are the standard types of oil hole direction. If you need the air hole be on a special position, please contact us to modify the air hole direction.
- In actual use, it is recommended to pull out the oil plug in the air hole to balance the pressure in gearbox.

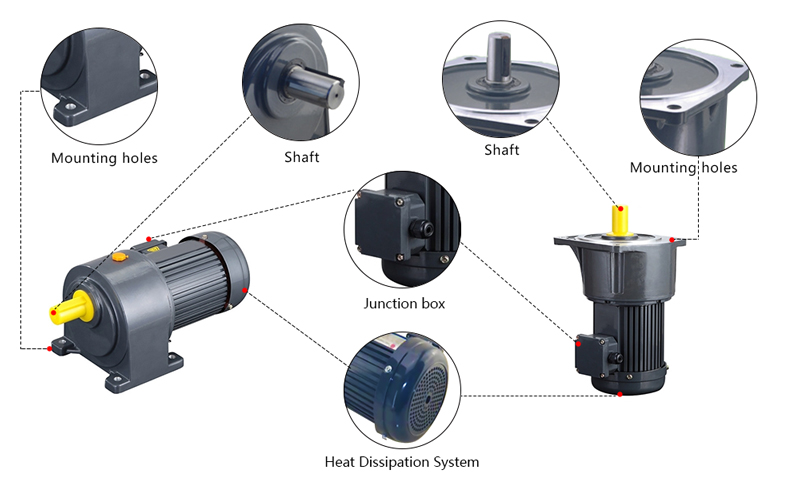

Details
Tips: Precautions for using 3-phase AC gear motor.
- Do not use 3-phase AC gear motor outside the specifications specified on the gearbox and motor nameplate or product catalog to avoid electric shock, injury and damage to the device.
- Do not put your fingers or objects into the opening of gear box or the 3-phase AC gear motor.
- Do not use a damaged gearbox or gear motor to avoid injury, fire, etc.
- Do not remove the nameplate. If users modify the 3-phase AC gear motor privately, the damage will not be covered by the warranty.
- When moving the 3-phase AC gear motor, avoid dangerous actions such as falling off or overturning.
- It is strictly forbidden to place combustibles around the gearbox and motor to avoid fire.
- Do not place objects around the 3-phase AC gear motor to avoid affecting the ventilation and cooling of the motor, or even burns or fire due to excessive heat.
- Do not touch the wheel, the end of motor shaft, and the key groove of gear without gloves to avoid injury.
- In the rotating part of 3-phase AC gear motor, please install a safety cover or other devices to prevent injuries.
- Before connecting with other machinery, please confirm the rotation direction. If the rotation direction is incorrect, it may cause personal injury or damage the device.
