1000W Gear Hub Motor, 24V/ 36V/ 48V, 95 N.m
Brief
Description
This gear hub motor has 1000W working power, and rated 48 volts can ensure you ride a long distance under the speed of 45km per hour. Motor working efficiency is higher than 82%.
Specification
| Model | SCJ009576 |
| Motor type | Brushless motor |
| Max. power | 1000W |
| Rated voltage | 24V/ 36V/ 48V (optional) |
| Max torque | 95 N.m |
| Reduction ratio | 1:5.83 |
| Installation position | Rear |
| Motor structure | Gear |
| Wheel diameter | 26 inch is standard configuration (16-28 inch can be customized) |
| Rated speed | 45 km/ h |
| Spoke specification | 36H*12g/ 13g |
| Dropout | 140mm |
| Brake type | V/ Disc brake |
| Operation temperature | -20℃ - 45℃ |
| Efficiency | ≥82% |
| Color | Black |
| Cabling route | Shaft center right |
| Noise grade | ≤55 dB |
| IP grade | IP65 |
| Salt spray test standard | 24/ 96 h |
| Drive and freewheel | 6-7s |
| Weight | 5kg |

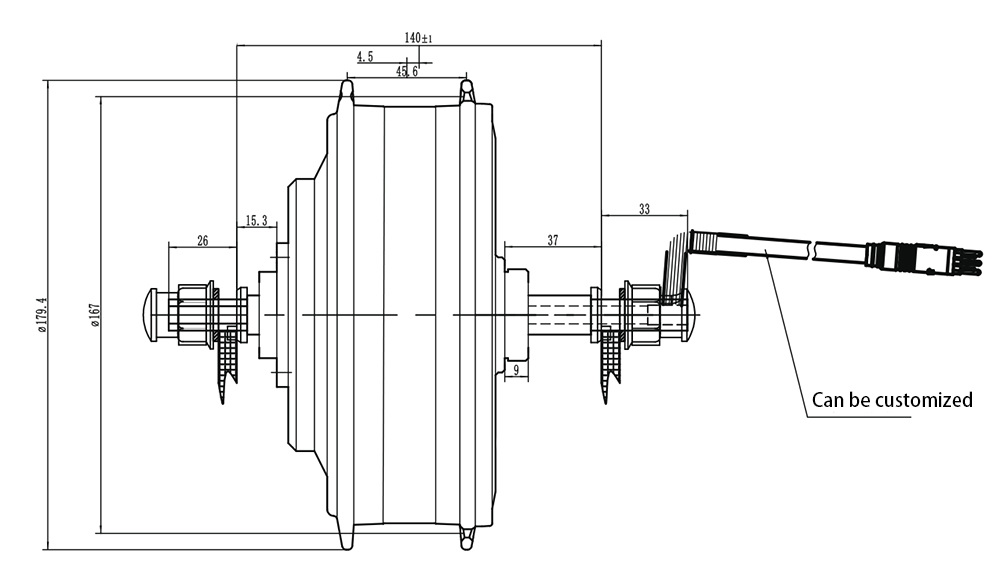

Dimention (Unit: mm)

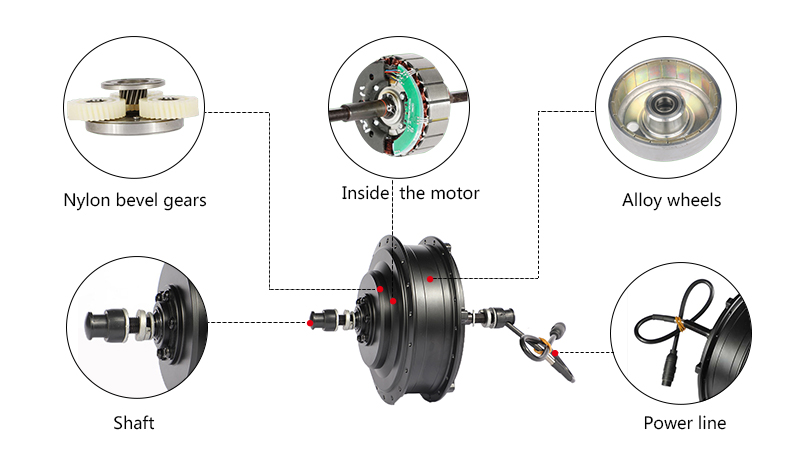

Details
Tips: What are the advantages of brushless hub motors?
Because the in wheel motor has the characteristics of independent driving of a single wheel, it can be implemented relatively easily whether it is a front drive, a rear drive or a four-wheel drive. The full-time four-wheel drive is very easy to implement on a vehicle driven by an electric hub motor. At the same time, the hub motor can realize differential steering similar to tracked vehicles through the different speeds of the left and right wheels or even reversal, which greatly reduces the turning radius of the vehicle. In special circumstances, it can almost achieve in-situ steering (but at this time, the vehicle steering mechanism and tire wear is greater), which is very valuable for special vehicles.
