- Stock: In Stock
- Model: SCJ009578
- SKU: SCJ009578
Ask a Question About This Product
- Description
1000W Gearless Hub Motor 36V/ 48V/ 60V/ 72V 95 N.m
Brief
Description
Buy best-selling brushless in wheel motor for your ebike. Rated voltage from 36V to 72V are provided. Gearless design, IP 65, 135mm dropout, 82% working efficiency.
Specification
| Model | SCJ009578 |
| Motor type | Brushless DC motor |
| Max. power | 1000W |
| Rated voltage | 36V/ 48V/ 60V/ 72V DC (optional) |
| Max torque | 45-55 N.m |
| Reduction ratio | / |
| Installation position | Rear |
| Motor structure | Gearless |
| Wheel diameter | 26 inch is standard configuration (20-28 inch can be customized) |
| Rated speed | 25-42 km/ h |
| Spoke specification | 36H*10g/ 12g/ 13g |
| Dropout | 135mm |
| Brake type | V/ Disc brake |
| Operation temperature | -20℃ - 45℃ |
| Efficiency | ≥82% |
| Color | Black |
| Cabling route | Shaft center right/ left |
| Noise grade | ≤55 dB |
| IP grade | IP65 |
| Salt spray test standard | 24/ 96 h |
| Drive and freewheel | 9s |
| Weight | 6kg |

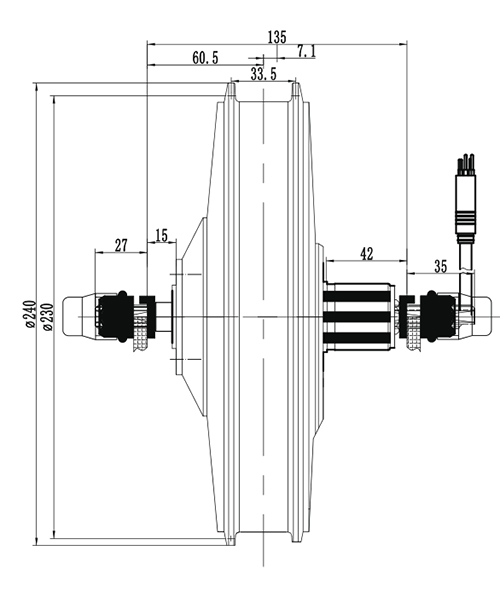

Dimention (Unit: mm)

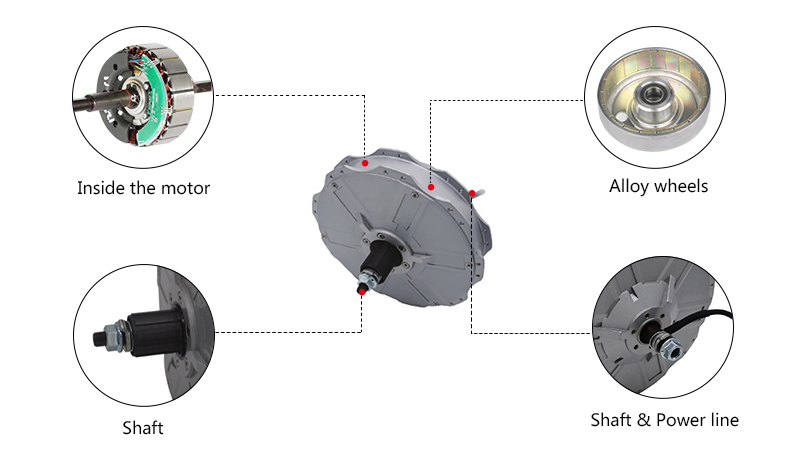

Details
Tips: How to maintain the 1kw gearless hub motor?
As the name suggests, the hub motor is a new type of drive technology that installs the motor on the wheel. Its biggest feature is that the power, transmission and braking devices are integrated into the wheel hub, thus greatly simplifying the mechanical part of the electric vehicle. Due to the harsh working environment of the in-wheel motor, it faces many aspects such as water and dust. It also has higher requirements in terms of sealing. At the same time, the design of the 1000W in wheel hub motor also needs to consider the heat dissipation problem separately. Therefore, SOCOJE recommends that the focus of the maintenance of the hub motor is to achieve timely heat dissipation, and also to pay attention to the hygiene problems in harsh environments to ensure that its sealing is intact.
