Waterproof Brushless RC Boat Motor 1200KV
from
$142.87
Ex Tax: $142.87
- Stock: In Stock
- Model: SCJ009130
- SKU: SCJ009130
Products Sold: 0
Product Views: 465
Ask a Question About This Product
- Description
Waterproof Brushless RC Boat Motor 1200KV
Brief
Small brushless RC boat motor at an affordable price for sale. RC boat motor speed at 1200KV, Max current 45A, 1600W Max. power. A waterproof brushless motor for RC boat with smoothness, reliability and maximum RPM, is ideal for RC boats.
Description
Waterproof 1200KV brushless RC boat motor with Max. speed 60000KV, 4-stage 12-slot high-torque motor design, RC boat brushless motor's excellent torque ensures long operation.
Specifications
- Model: ATO-RB-3670
- Rotational Speed: 1200KV
- Maximum Current: 45A
- Maximum Voltage: 36V
- Maximum Power: 1600W

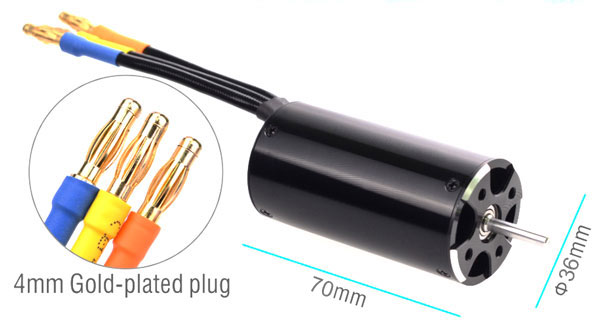

- Length: 70mm
- Diameter: 36mm
- Winding Method: WYE
- Number of Turns: 4Y
- No-load Current: 1.2A
- Max Speed: 60000KV
- Shaft: 5mm
- Number of Rotor Stages: 4
- Weight: 275g

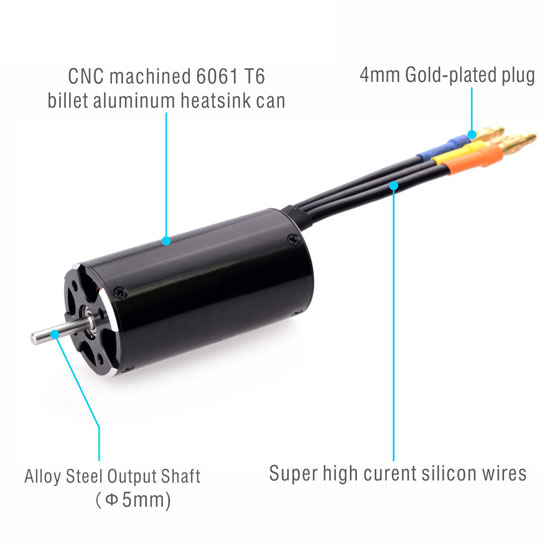

Features
- 4-stage 12-slot high-torque motor design.
- CNC machined billet, 6061-T6 aluminum heat sink.
- High-purity copper coil for maximum performance.
- High-speed ABEC5 oversized bearings.
- Highly balanced rotor, high smoothness, accuracy and high speed.
- Ultra-thin (0.2mm) stator blades.
- Removable/replaceable rotor.
- Precision design for maximum energy conversion.

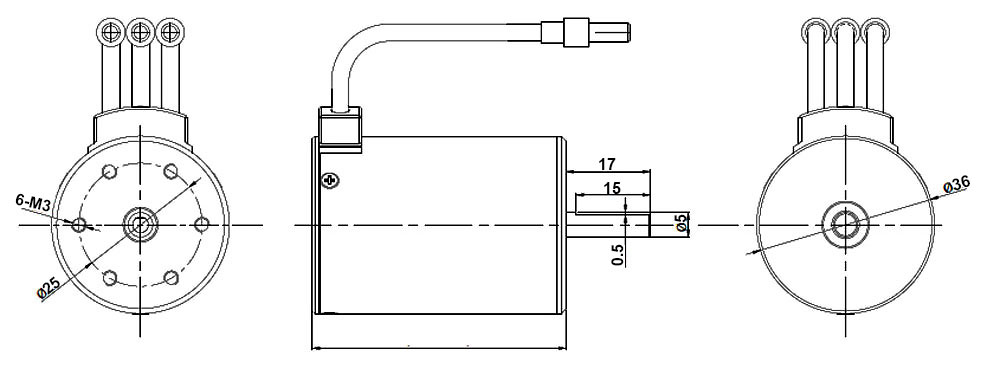

Dimension (Unit: mm)
Detail
Tips: Do brushless RC motors wear out?
Since brushless DC motors have no brushes to get worn out, they represent a huge leap forward in technology. Brushless motors have significantly higher efficiency and performance and lower susceptibility to mechanical wear than their brushed counterparts.
