Lightweight 1500KV Brushless Motor for Drone, 3S
from
$76.89
Ex Tax: $76.89
- Stock: In Stock
- Model: SCJ009142
- SKU: SCJ009142
Products Sold: 0
Product Views: 451
Ask a Question About This Product
- Description
Lightweight 1500KV Brushless Motor for Drone, 3S
Brief
3S brushless motor is designed for fixed-wing drones, with 1500KV or 1650KV speeds. Small brushless motor is more powerful than other brushless motors. Works with a 10A ESC controller to generate the thrust that your drone can fly.
Description
Lightweight 1500KV/1600KV brushless motor for fixed-wing drones. Shaft diameter 3mm, operating rated voltage (lipo) 2-3S, brushless drone motor adopts high-performance tile magnet to ensure efficient motor operation, making the flight more smooth and fast.
Specifications
| Model | SCJ009142 | SOCOJE-X2302-1650 |
| Motor KV | 1500KV | 1650KV |
| Interphase Internal Resistance | 357mΩ | 316mΩ |
| Motor Weight | 15.7g | 15.5g |
| No-Load Current | 0.3A/10V | 0.35A/10V |
| Maximum Continuous Power | 80W | 84W |
| Maximum Continuous Current | 9.5A/30s | 10A/30s |
| Recommended Propeller Specifications | GWS8043/GWS8060 | GWS8043/GWS8060 |
| Operating Rated Voltage (Lipo) | 2~3S | |
| Stator Diameter | 3mm | |
| Stator Thickness | 12 | |
| Number of Slots | 12N14P | |
| Motor Size | φ28.0*20.5mm | |
| Motor Silicone Wire Specifications | 20AWG 50mm | |
| ESC Recommended | 10A | |
Features
- Each brushless drone motor is made by strict dynamic balancing. Original NSK bearings for lower noise and smoother operation. High-precision CNC machined parts, and fine assembly process to achieve higher runout and concentricity standards.
- 1500KV/1650KV brushless motor cool magic blue rotor end cap with six contours, strong and sturdy. High-quality white metallic paint with blue end caps for a more chic layered aesthetic. The stator end caps are hollowed out around the perimeter, which also increases the heat dissipation area for better heat dissipation.

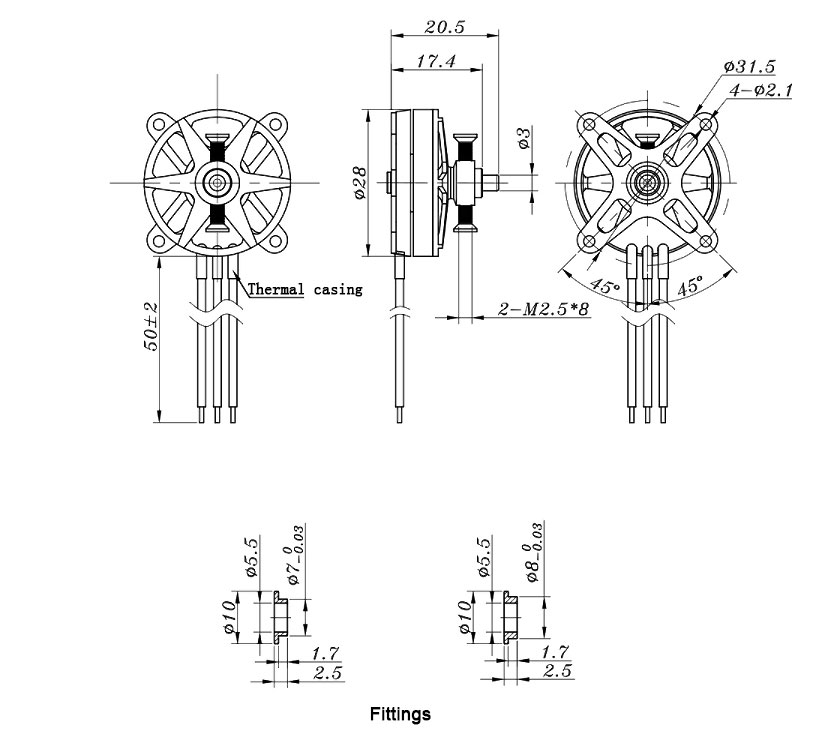

Dimensions (Unit: mm)
Tips: How can I make your 300KV brushless drone motor stronger?
- Install More Efficient Propellers. Propellers play a very crucial part when it comes to making a drone fly.
- Upgrade Your Battery.
- Practice Good Battery Care.
- Remove Unnecessary Weight.
- Install More Powerful Motors.
