Brushless Motor for Drone, 6S/12S, 170KV
from
$322.38
Ex Tax: $322.38
- Stock: In Stock
- Model: SCJ009143
- SKU: SCJ009143
Products Sold: 0
Product Views: 463
Ask a Question About This Product
- Description
Brushless Motor for Drone, 6S/12S, 170KV
Brief
Get a 170KV brushless motor for multirotor drone. 90KV/110KV/135KV heavy lift drone motors are available online. 12S/6S Brushless drone motor works with a 26~29 inch propeller that can make your drone fly. Quadcopter motors are suitable for various working environments.
Description
Cheap heavy lift drone motor features 90KV, 110KV, 135KV and 170KV. 6S/12S brushless motor is suitable for heavy lift drone position and speed control. Small drone motor works with 26/28/29 inch propellers that can generate upward thrust to make your drone fly.
Specifications
| Model | SCJ009143 | |||
| Motor KV | 90 | 110 | 135 | 170 |
| Number of Stator Slots | 36 | 36 | 36 | 36 |
| Number of Rotor Poles | 42 | 42 | 42 | 42 |
| Motor Size | φ79.0*27.0mm | φ79.0*27.0mm | φ79.0*27.0mm | φ79.0*27.0mm |
| Shaft Diameter | 12.0mm | 12.0mm | 12.0mm | 12.0mm |
| Motor Silicone Wire | 20AWG 100mm | 20AWG 100mm | 20AWG 100mm | 20AWG 100mm |
| Phase-to-Phase Internal Resistance | 253mΩ | 173mΩ | 125mΩ | 76mΩ |
| Motor Weight (Including Wires) | 236g | 240g | 237g | 240g |
| Rated Voltage (Lipo) | 12S | 12S | 6S | 6S |
| No-Load Current | 0.4A/10V | 0.5A/10V | 0.6A/10V | 0.8A/10V |
| Maximum Continuous Power | 1150W | 1500W | 750W | 950W |
| Maximum Continuous Current | 23A/30s | 30A/30s | 30A/30s | 38A/30s |
| Recommended ESC | 40A | 40A | 50A | 50A |
| Recommended Propeller | CN26*8/CN28*9.5/C28*9.5/CL28*9.5 | CN26*8/CN28*9.5/C28*9.5 | C28*9.5/CN28*9.5 | C28*9.5/CL28*9.5/CN28*9.5 |
Features
- High-efficiency 90KV/110KV/135KV/170KV brushless motor is designed for multi-rotor drones.
- The brushless drone motor adopts an IP54 motor structure to prevent dust and rain.
- It has manual winding, the ultimate full slots rate, and a new optimized magnetic circuit to make the power more potent.

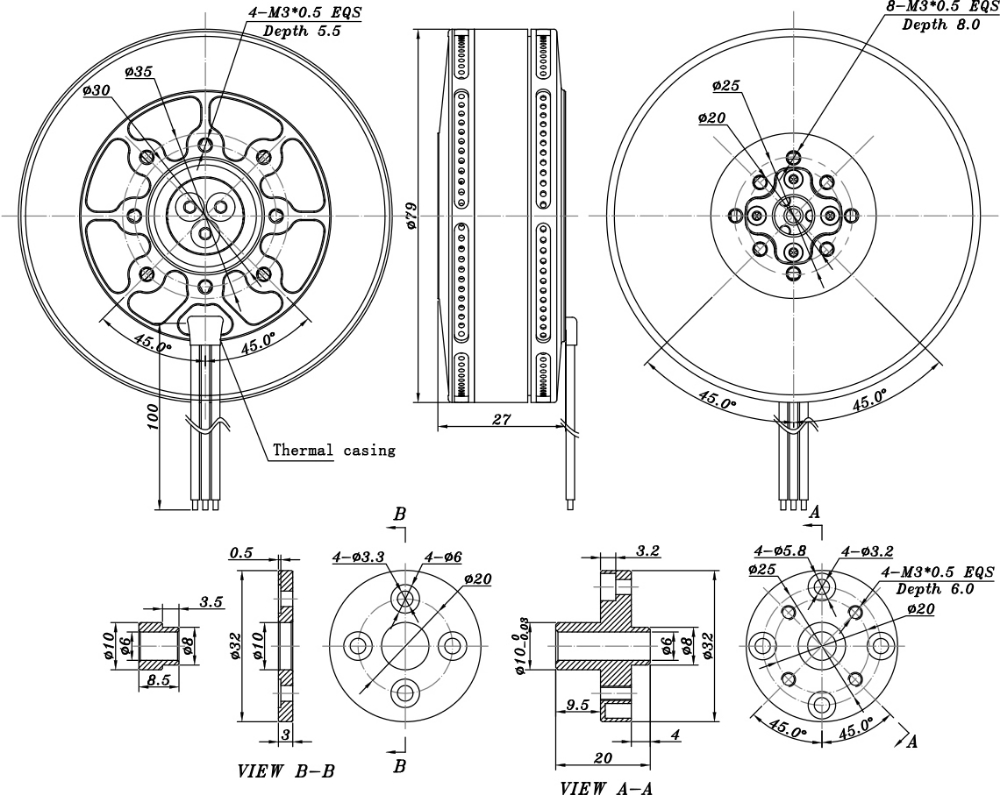

Dimensions (Unit: mm)
Tips: Which motor is suitable for drones?
Generally, brushed motors are used for the smallest drones, while larger drones and UAVs will use brushless motors because they can carry the extra weight of additional electronics. Brushless drone motors also require an electronic speed controller (ESC) to operate.
