2/3/5 hp 200mm Long Shaft Induction Motor, 2900 rpm
from
$548.31
Ex Tax: $548.31
- Stock: In Stock
- Model: SCJ009445
- SKU: SCJ009445
Products Sold: 0
Product Views: 269
Ask a Question About This Product
- Description
Brief
Competitive price long shaft induction motor for sale. Shaft length 200mm, working power 2/3/5 hp for selection, speed 2/4/6 poles, maximum 2900 rpm, max output torque 2.3 N.m, single phase/3-phase power supply 100-380V. High temperature long shaft induction electric motor, works under 200℃, small size and easy assembly.
Description
200mm long shaft induction motor has 200℃ high temperature resistance feature, optional rated power 2/3/5 hp, rated voltage single phase/3-phase 100~380V, speed 2/4/6 poles, 940~2900 rpm. AC induction electric motor is ideal for high temperature uses such as oven, low temperature quick freezing, constant temperature box, glass machinery, tunnel furnace, etc.
Specification
| Model | SCJ009445 | ||||||||
| Rated Voltage | Single Phase 100-120V, 50/60Hz Single Phase 220-230V, 50/60Hz 3-Phase 220V, 50/60Hz 3-Phase 380V, 50/60Hz | ||||||||
| Working Temperature | ≤ 200℃ | ||||||||
| Output Power | Speed (rpm) | Current (A) | Power Factor (cos Φ) | Efficiency (%) | Rated Torque (N.m) | Start Current (A) | Locked-Rotor Torque (N.m) | Max Torque (N.m) | |
| 2 Poles | |||||||||
| 2 hp (1500W) | 2840 | 3.4 | 0.85 | 78 | 5.04 | 7 | 2.2 | 2.3 | |
| 3 hp (2200W) | 2840 | 4.8 | 0.86 | 80.5 | 7.40 | 7 | 2.2 | 2.3 | |
| 5 hp (4000W) | 2900 | 8.2 | 0.87 | 85.5 | 13.22 | 7 | 2.2 | 2.3 | |
| 4 Poles | |||||||||
| 2 hp (1500W) | 1400 | 3.7 | 0.79 | 79 | 10.25 | 6.5 | 2.3 | 2.3 | |
| 3 hp (2200W) | 1430 | 5 | 0.82 | 81 | 14.69 | 7 | 2.2 | 2.3 | |
| 5 hp (4000W) | 1440 | 8.8 | 0.87 | 85.5 | 26.53 | 7 | 2.2 | 2.3 | |
| 6 Poles | |||||||||
| 2 hp (1500W) | 940 | 4 | 0.74 | 77.5 | 15.24 | 6 | 2 | 2.2 | |
| 3 hp (2200W) | 940 | 5.6 | 0.74 | 80.5 | 22.35 | 6 | 2.2 | 2.2 | |
| 5 hp (4000W) | 960 | 9.4 | 0.77 | 84 | 39.79 | 6.5 | 2 | 2.2 | |
Features
- Long shaft induction motor adopts IEC international standard size, which is internationally interchangeable and universal.
- The rotating part of long shaft AC induction motor has small inertia, large acceleration torque and short start-stop time. Frequent starting and stopping the machine can improve work efficiency.
- Long shaft induction motor has low vibration and low noise. The mechanical structure is perfectly designed, and the processing and assembly techniques are excellent. 100% dynamic balance correction, uses high-quality bearings to reduce noise and vibration.
- Long shaft induction motor is easy to maintain. High-grade oil-sealed bearings do not need to add or replace lubricating grease.
- Long shaft induction motor is small in size and light in weight. The shell is made of ABB and CPG materials, and the shell is stretched, which saves space, is convenient to install, design and construction.
- Long shaft AC induction motor uses class F insulation material. The stator coil and insulation materials adopt F grade which is heat-resistant, temperature-resistant and chemical-resistant. Safe and durable, long lifespan. The maximum working temperature can reach 200℃. Vacuum dipping paint treatment prevents the stator coil from regaining moisture.
- Protection grade is IP55, dustproof and waterproof, in line with international standards.

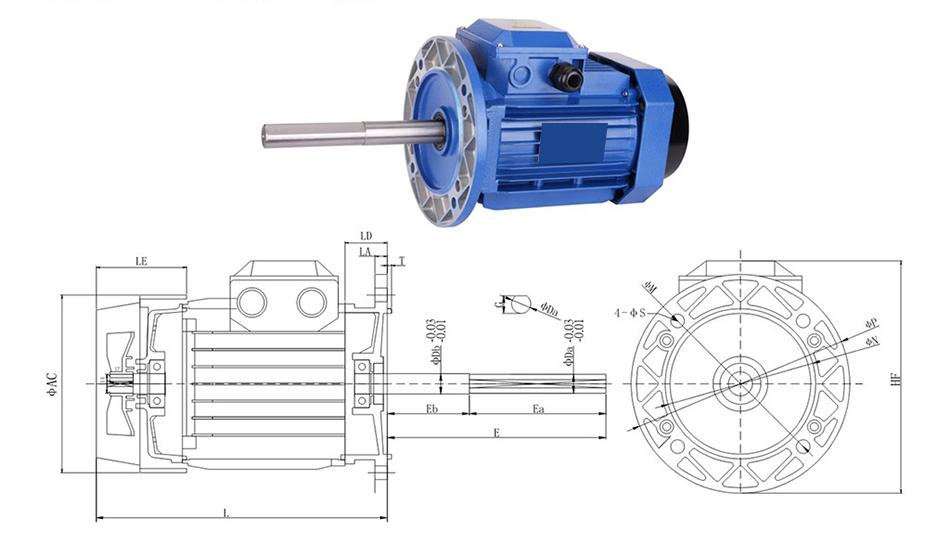

2/3/5 hp 200mm Long Shaft Induction Motor Dimensions (Unit: mm)
| Motor Base Center Height | Insulation Class | Flange Mounting Dimension | LA | LD | LE | L | Φ AC | HF | Shaft Dimension | Bearing | ||||||||||
| Φ M | Φ N | Φ P | Φ S | T | Φ Da | Φ Db | Ea | Eb | E | G | L.S. | O.S. | ||||||||
| 100 | F | 215 | 180 | 250 | 15 | 4 | 12 | 34 | 80 | 288 | 181 | 263 | 28 | 30 | 100 | 100 | 200 | 27 | 6206 | 6206 |
| 112 | F | 215 | 180 | 250 | 15 | 4 | 13 | 33 | 97 | 301 | 204 | 277 | 28 | 30 | 100 | 100 | 200 | 27 | 6206 | 6206 |
| 132 | F | 265 | 230 | 300 | 15 | 4 | 14 | 39 | 106 | 432 | 245 | 336 | 38 | 40 | 100 | 100 | 200 | 27 | 6208 | 6208 |
