2 hp (1.6 kW) 12V Hydraulic Pump Motor, 2600rpm
from
$489.86
Ex Tax: $489.86
- Stock: In Stock
- Model: SCJ009549
- SKU: SCJ009549
Products Sold: 0
Product Views: 437
Ask a Question About This Product
- Description
2 hp (1.6 kW) 12V Hydraulic Pump Motor, 2600rpm
Brief
2600RPM 12V hydraulic pump motor is 1.6 kW (2 hp), 12V DC motor, high rated torque of 5.4Nm, current with 200A. It can be used in dump trailer and lippert leveling systems, high quality.
Description
2 hp DC motor at a, high torque motor rated speed is 2600rpm, 5.4Nm, 12V hydraulic pump motor for dump trailer, SOCOJE hydraulic pump motors for a wide range of hydraulic applications and systems.
Specifications
| Model | SCJ009549 |
| Rated Voltage | 12V DC |
| Power | 1.6 kW |
| Rated Current | 200A |
| Ratation Speed | 2600 RPM |
| Ratation Direction | CW |
| Torque | 5.4 Nm |
| Protection Degree | IP54 |
| Duty | S2=2 MIN S3=7.5%ED |
| Weight | 8 kg |
| Warranty | 12 Months |

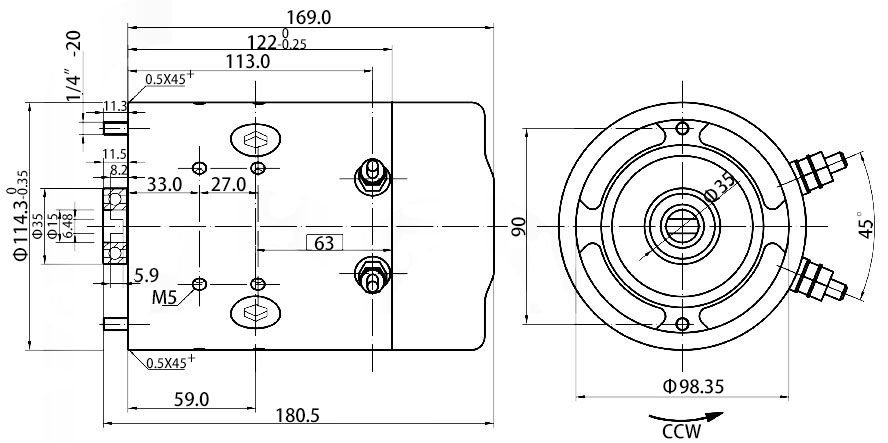

Dimension (Unit=mm)

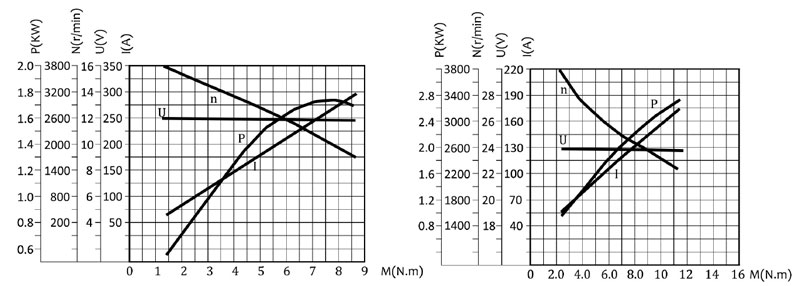

Torque Curve
Applications

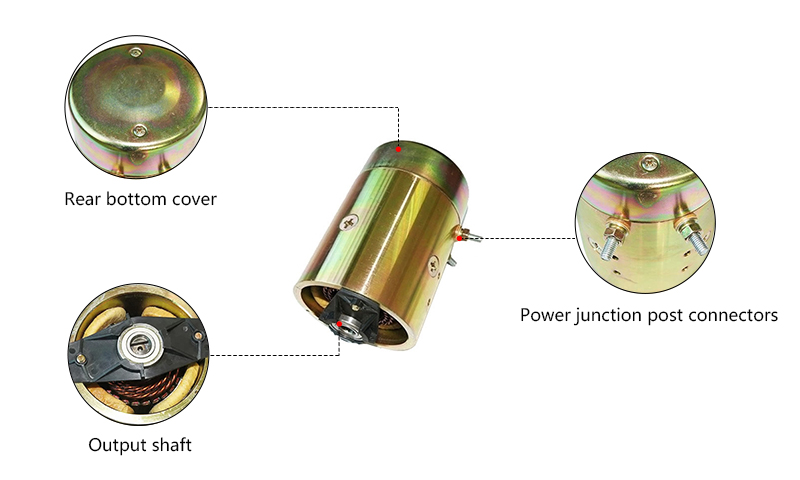

Details
Tips: What is Hydraulic Pump Motor?
The hydraulic pump motor is an actuator of the hydraulic system, which converts the liquid pressure energy provided by the hydraulic pump into the mechanical energy (torque and speed) of its output shaft. Liquids are agents of transfer and motion.
