200 W DC Gear Motor, 3000 rpm, 12V/24V/48V
Brief
Description
The rated speed of this 200W DC gear motor is 3000 rpm, and the peak torque up to 1.91 Nm, gear ratio ranging from 3:1 to 200:1, available in 12V, 24V, 48V, is a perfect solution for motion control applications where high accuracy, maximum efficiency and a small package are required.
200W DC gear motor specifications
| Model | SCJ009275 | SOCOJED5BLD200-24 | SOCOJED5BLD200-48 |
| Power | 200W | 200W | 200W |
| Voltage | 12V | 24V | 48V |
| Rated Speed | 3000 rpm | 3000 rpm | 3000 rpm |
| No-load Speed | 3300 rpm | 3300 rpm | 3300 rpm |
| Rated Current | 20.83A | 10.42A | 5.21A |
| Rated Torque | 0.64 N.m | 0.64 N.m | 0.64 N.m |
| Peak Torque | 1.91 N.m | 1.91 N.m | 1.91 N.m |
| No-load Current | < 6.2A | < 4.13A | < 1.61A |
| Compatible Driver Model | BLD-750 (Click it to the product page) | BLD-300B (Click it to the product page) | |
| Protection Grade | IP54 | ||
| Motor Lead Length | 300mm | ||
| Temperature | 0~50℃ | ||
| Weight | 3 Kg | ||
| Gear Head Motor | 2GN□K, Enter the gear ratio into the box (□) within the model name | ||
| Gear Ratio | 3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200 | ||
Note: Motor length, power, voltage and speed can be customized according to your requirements under the allowed circumstance of adoptable dimension.
The allowable torque with a gearbox
| Gear Ratio | 3 | 5 | 7.5 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
| Speed (r/min) | 1000 | 600 | 400 | 300 | 240 | 200 | 167 | 150 | 120 | 100 | 83.33 | 75 | 60 | 50 | 40 | 33 | 30 | 25 | 20 | 17 | 15 |
| Allowable Torque (N.m) | 1.55 | 2.58 | 3.87 | 5.16 | 5.81 | 6.97 | 8.37 | 8.4 | 10.51 | 12.61 | 15.13 | 16.81 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Allowable Torque (kgf.cm) | 15.47 | 25.79 | 38.68 | 51.57 | 58.1 | 69.72 | 83.66 | 84.04 | 105.1 | 126.1 | 151.3 | 168.1 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
Note:
- The values colored "Red" indicate that the gearbox and the DC motor are running in the same direction, and the other values are in the opposite direction.
- When it is desired to reduce the speed further than the gear ratio in the table above, an intermediate speed reducer with a gear ratio of 10 can be installed between the motor and the gearbox.
Wiring Definition

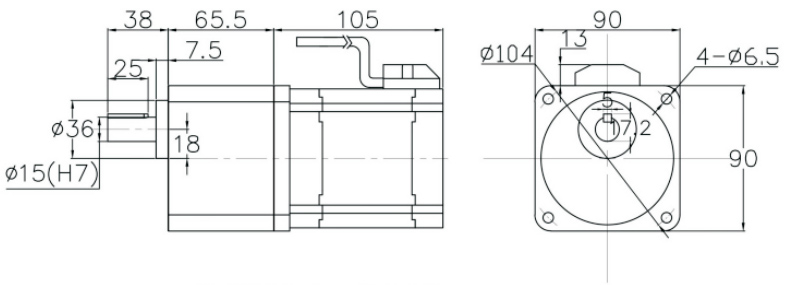

Dimension (Unit: mm)
*Mounting screws are included with gearbox
Details
Tips: What are the inspection contents for gear motor before use?
The gear motor shall be inspected before it works, we can check whether there's hidden danger or it's properly installed. Then what are the inspection contents for gear motor before use?
- Please confirm the appearance of gear motor before use, check if there's oil leakage.
- Please confirm in advance whether the specifications of the gear motor are in accordance with the design specifications.
- Please confirm the service voltage of the gear motor, a voltage regulator can be added if the voltage is unstable.
- Please confirm the seat is fixed, in case of loosening when running and transmission.
