20W 12V 3000rpm DC Brushed Vibration Motor with Speed Controller
from
$377.48
Ex Tax: $377.48
- Stock: In Stock
- Model: SCJ009304
- SKU: SCJ009304
Products Sold: 0
Product Views: 290
Ask a Question About This Product
- Description
20W 12V 3000rpm DC Brushed Vibration Motor with Speed Controller
Brief
Small size 20W brushed vibration motor, light weight speed controller, rated current 2A, force 0.2 kN, 12 volt, 3000rpm, aluminum alloy shell, sturdy and shockproof, high waterproof and dustproof grade, easy to carry out.
Description
Light weight DC brushed vibration motor, power 12W, easy to operate speed controller, 12V, other voltages can be customized. The brush vibration motor can be used to aid flow, installed on the silo or hopper to speed up the unloading of materials.
Specification
| Model | SCJ009304 |
| Volatge | 12V |
| Current | 2A |
| Power | 20W |
| Speed | 3000 rpm |
| Force | 20 Kg, 0.2 kN |
| Frame No | 3 |
| Protection Level | IP65 |
| Insulation Grade | F |
| Weight | 3kg |
| Certificate | CE |

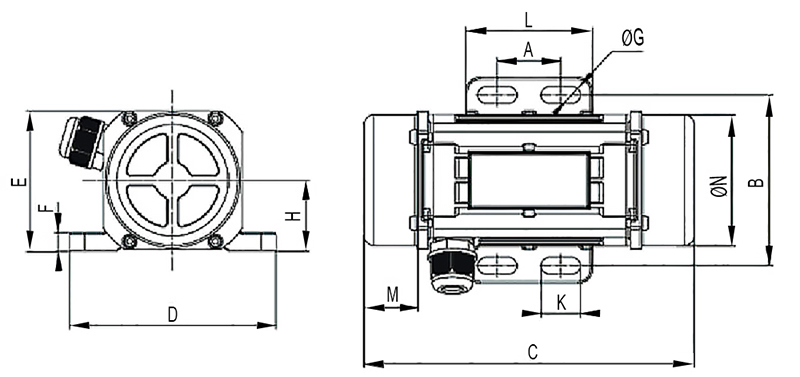

20W DC Brushed Vibration Motor Dimension (unit: mm)
| A | B | C | D | R | F | G | H | L | K | M | N | Cable Gland |
| 27.5 | 91.5 | 166 | 110 | 69 | 9 | 9 | 35 | 55 | 17.5 | 33.5 | 66 | M16*1.5 |
12V 20W DC Brushed Vibration Motor Internal Structure
Tips: Classification of vibration motors by working power supply
According to the different working power of the motor, it can be divided into DC vibration motor and AC vibration motor. Among them, AC vibration motors are also divided into single-phase vibration motors and three-phase vibration motors.
