3000W Gearless BLDC Hub Motor 72V 80 N.m
from
$518.92
Ex Tax: $518.92
- Stock: In Stock
- Model: SCJ009579
- SKU: SCJ009579
Products Sold: 0
Product Views: 544
Ask a Question About This Product
- Description
3000W Gearless BLDC Hub Motor 72V 80 N.m
Brief
SOCOJE economical price BLDC hub motor is used for the bike rear wheel. It has 3000W working power, 72V rated voltage, and 25-70 km/ h running speed. This motor is a gearless motor on a 28 inch bike. 170-190mm dropout, 80 N.m maximum torque.
Description
3 kw in wheel electric hub motor has the protection grade of IP 65, and the noise grade under 55 dB. The working efficiency of 82% is unmatched by other hub motors.
Specification
| Model | SCJ009579 |
| Motor type | Brushless DC motor |
| Max. power | 3000W |
| Rated voltage | 72V |
| Max torque | 80 N.m |
| Reduction ratio | / |
| Installation position | Rear |
| Motor structure | Gearless |
| Wheel diameter | 26 inch is standard configuration (20-28 inch can be customized) |
| Rated speed | 25-70 km/ h |
| Spoke specification | 36H*10g/ 12g/ 13g |
| Dropout | 170-190mm |
| Brake type | V/ Disc brake |
| Operation temperature | -20℃ - 45℃ |
| Efficiency | ≥82% |
| Color | Black |
| Cabling route | Shaft center right/ left |
| Noise grade | ≤55 dB |
| IP grade | IP65 |
| Salt spray test standard | 24/ 96 h |
| Drive and freewheel | 6-9s |
| Weight | 7kg |

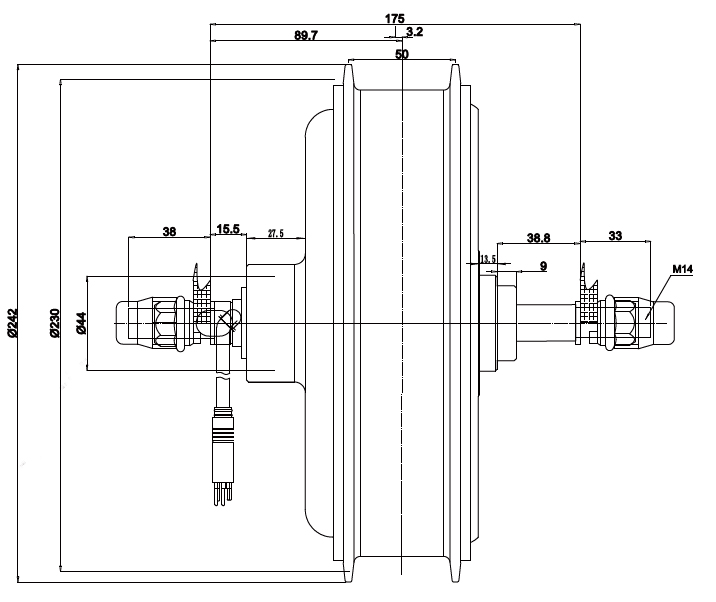

Dimention (Unit: mm)

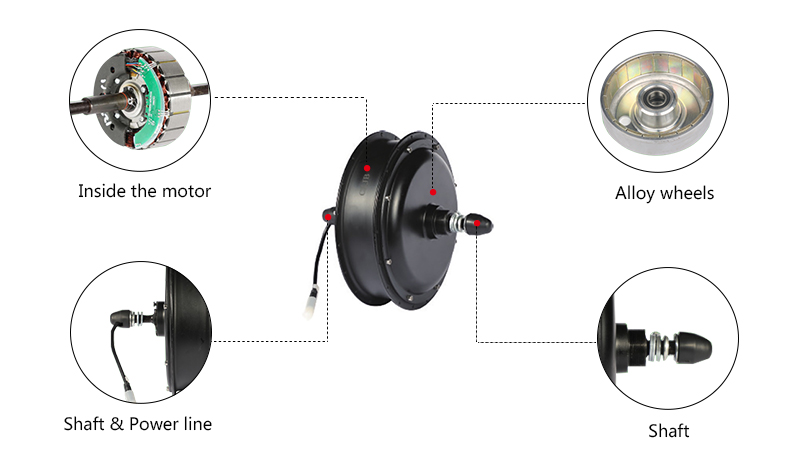

Details
Tips: Brushed hub motor vs. Brushless hub motor
The energization principles of brushed hub motors and brushless hub motors are different, and their internal structure is also different. For the hub motor, the output mode of the motor torque (whether it is decelerated by a gear reduction mechanism) is different, and its mechanical structure is also different.
- The internal mechanical structure of a common high-speed brush motor. This kind of in wheel motor consists of a built-in high-speed brushed motor core, reduction gear set, overrunning clutch, hub end cover and other components. High-speed brushed and gear hub motors are internal rotor motors.
- The internal mechanical structure of a common low-speed brush motor. This type of hub motor is composed of carbon brushes, phase converters, motor rotors, motor stators, motor shafts, motor end covers, bearings and other components. Low-speed brushless gearless hub motors are external rotor motors.
- The internal mechanical structure of common high-speed brushless motors. This kind of in wheel motor consists of a built-in high-speed brushless motor core, planetary friction roller, overload clutch, output flange, end cover, hub shell and other components. High-speed brushless gear hub motors are internal rotor motors.
- The internal mechanical structure of common low-speed brushless motors. This kind of hub motor is composed of motor rotor, motor stator, motor shaft, motor end cover, bearing and other components. Low-speed brushless gear hub motors are external rotor motors.
