320KV/420KV/580KV Brushless Motor for Drone, 4S/6S
from
$211.04
Ex Tax: $211.04
- Stock: In Stock
- Model: SCJ009147
- SKU: SCJ009147
Products Sold: 0
Product Views: 468
Ask a Question About This Product
- Description
320KV Brushless Motor for Drone, 4S/6S
Brief
4S/6S brushless motor is a quadcopter motor that connects with 15/16/17 inch propellers to make a drone fly. Heavy lift drone motor features lightweight, high efficiency, wide speed range and strong torque capability. 320KV/420KV/580KV BLDC motor speed control is perfect for heavy lift drone position and speed control.
Description
The provided 320KV/420KV/580KV brushless motor is designed for multirotor drone. Heavy lift drone motor comes with 4S/6S rated voltage to spin 15/16/17 inch propeller and generate the thrust that your drone can fly. The drone motor rpm is optional, suitable for various working environments.
Specifications
| Model | SCJ009147 | ||
| Motor KV | 320 | 420 | 580 |
| Number of Stator Slots | 12 | 12 | 12 |
| Number of Rotor Poles | 14 | 14 | 14 |
| Motor Size | φ47.5*37.3mm | φ47.5*37.3mm | φ47.5*37.3mm |
| Shaft Diameter | 4.0mm | 4.0mm | 4.0mm |
| Motor Silicone Wire | 20AWG 600mm | 20AWG 600mm | 20AWG 600mm |
| Motor Weight (Including Wires) | 197g | 199g | 200g |
| Rated Voltage (Lipo) | 6S | 6S | 4S |
| No-Load Current | 0.5A/10V | 0.7A/10V | 1.1A/10V |
| Maximum Continuous Power | 825W | 1000W | 1020W |
| Maximum Continuous Current | 33A/30s | 40A/30s | 62A/30s |
| Recommended ESC | 40A | 40A | 50A |
| Recommended Propeller | CN17*6.2 | CN15*5.5/C15*5.5 | CN17*6.2/CN15*5.5 |
Features
- High-efficiency 320KV/420KV/580KV brushless motor is designed for drones.
- The brushless drone motor adopts an IP54 motor structure to prevent dust and rain.
- It has manual winding, the ultimate full slots rate, and a new optimized magnetic circuit to make the power more potent.

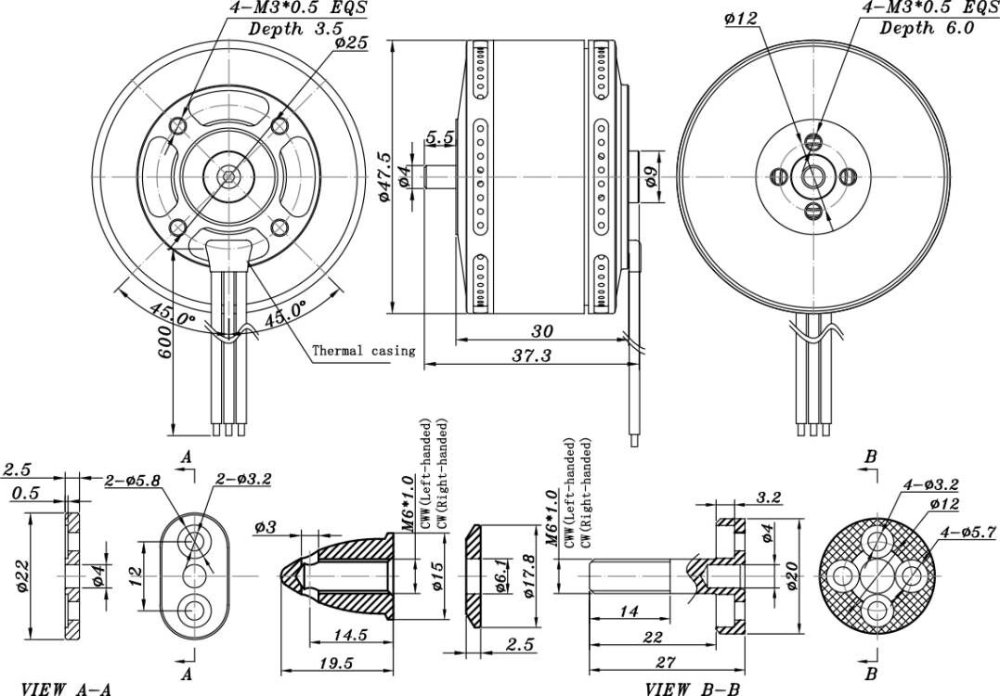

Dimensions (Unit: mm)
Tips: What is KV in Brushless Drone Motors?
"KV" (not to be confused with “kV” the abbreviation for kilovolt) talks about the constant speed of the motor. The KV rating indicates the RPM a particular motor can produce when a given voltage is applied. Typically, the applied voltage is 1 volt of current. This voltage is usually used without any load connected to the motor.
