330KV/600KV Brushless Motor for Drone, 4S/6S
Brief
Whoseslae price brushless motors for multirotor drones with rotating speeds at 330KV or 600KV. 4S/ 6S brushless drone motor works with a maximum continuous power of 500W/ 480W. Small brushless motor has the characteristics of high efficiency, stable structure, lightweight and high consistency.
Description
Factory price 4~6S brushless motor for a rotary-wing drone with a propeller, shaft diameter 4 mm, 330KV/ 600KV speed, good insulation and heat resistance, widely used in RC aircraft and drones.
Specifications
| Model | SCJ009148 | |
| Motor KV | 330 | 600 |
| Number of Stator Slots | 18 | 18 |
| Number of Rotor Poles | 24 | 24 |
| Motor Size | φ44.3*28.5mm | φ44.3*28.5mm |
| Shaft Diameter | 4.0 mm | 4.0 mm |
| Motor Silicone Wire | 20AWG 600mm | 20AWG 600mm |
| Phase-to-Phase Internal Resistance | 131mΩ | 75mΩ |
| Motor Weight (Including Wires) | 105g | 104g |
| Rated Voltage (Lipo) | 4-6S | 4S |
| No-Load Current | 0.5A/10V | 0.8A/10V |
| Maximum Continuous Power | 500W | 480W |
| Maximum Continuous Current | 20A/30s | 30A/30s |
| Recommended ESC | 30-40A | 40A |
| Recommended Propeller | CN12*5/CN13*5/C15*5.5/CN17*6.2 | CN13*5/CN15*5.5 |
Features
- 330KV/600KV brushless motor is designed for long-flight time multi-rotors. These motors can produce enough torque at low RPM and work at peak efficiency during flight.
- With the guarantee of strength, the caps of brushless motors are highly hollow-cutted to save weight, so these motors can reach the maximum thrust-to-weight ratio and gain more flight time.
- The brushless drone motor series uses a patented Stepped and knurled design that not only efficiently prevents motors from getting loose, but also reduces the probability of malfunction and unstable output power.

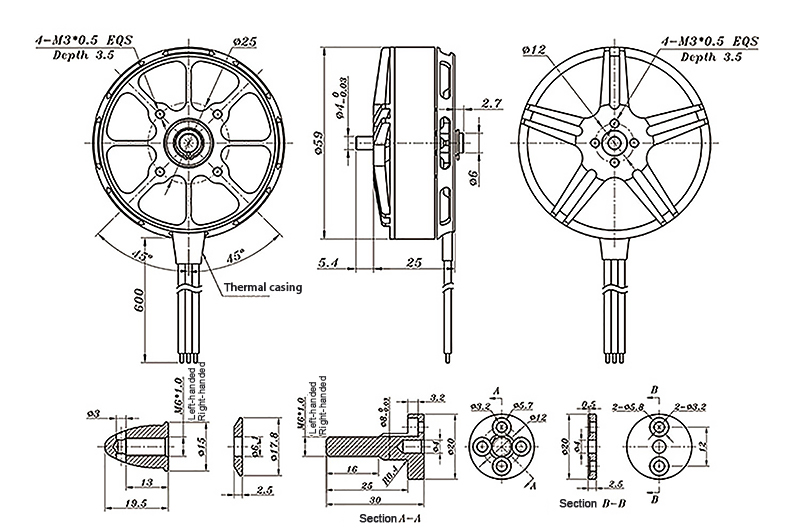

Dimensions (Unit: mm)
Tips: Why do drones use a 330KV brushless drone motor?
Drones use 330KV brushless DC motors because they produce higher torque for the same weight compared to brushed motors. Or the thrust-to-weight ratio is more like a brushless motor than a brushed motor.
