4 kW CNC ATC Spindle, Water cooled ISO20, 40000 rpm
from
$3,246.15
Ex Tax: $3,246.15
- Stock: In Stock
- Model: SCJ009537
- SKU: SCJ009537
Products Sold: 0
Product Views: 405
Ask a Question About This Product
- Description
4 kW CNC ATC Spindle, 40000 rpm
Brief
Water cooled ISO20 ATC spindle motor with 4000W high power, 40000 rpm high speed, works at 3 phase 220V AC, frequency up to 1333Hz and torque 1.19 Nm, spindle tool changer equipped with VFD, high precision and efficiency, used for milling, engraving, and CNC router machines.
Description
4000W automatic tool changer spindle motor with 40000rpm for sale online. Three phase 380 V AC at 1333 high frequency, ISO20 tool holder and torque 1.19 Nm, water cooling, matched with high quality VFD, used for CNC router machines.
Features
- Reasonable structure design, simple and compact configuration, easy to take apart.
- High precision, inflexibility and efficiency, long operation life.
- With high grade size, shape, position precision, and quality of the surface.
- Enough abrasive resistance, vibration resistance, suitable size.
- Work stable, low noise, enough fatigue strength.
Specifications
| Model | SCJ009537 |
| Motor power | 4000 W |
| Rated voltage | 220V AC |
| Phase | Three phase |
| Max speed | 40000 rpm |
| Max current | 17 A |
| Max frequency | 1333 Hz |
| Torque | 1.19 N·M |
| Cone at the end of the shaft pulsates | ≤0.001 mm |
| Tooling releasing air pressure | 5.6-6.0 Kgf/cm² |
| Tooling change method | Automatic tool changer |
| Tooling pulling force | ≥1100 N |
| Tooling back air pressure | 5.6-6.0 Kgf/cm² |
| Tooling connection | ISO20 tool holder |
| Cooling | Water cooling |
| Encoder | Sine and cosine 1Vpp (choice) |
| Coolant pressure | ≥2.5 Kgf/cm² |
| Approach switch | PNPON |
| Bearing lubrication method | Grease |
| Balance level | G1 |
| Install method | Clamp |
| Vibration Value | ≤0.8 mm/s |
| Weight | 7.65 Kg |
Note: The spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor. Otherwise, it will burn the spindle motor if the settings are not correct.

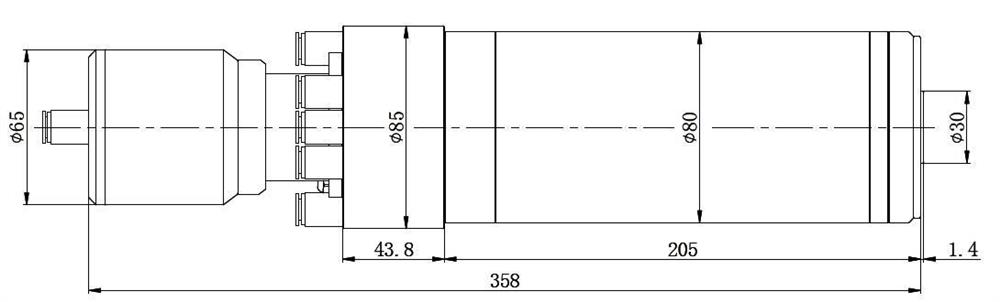

Dimension (Unit: mm)

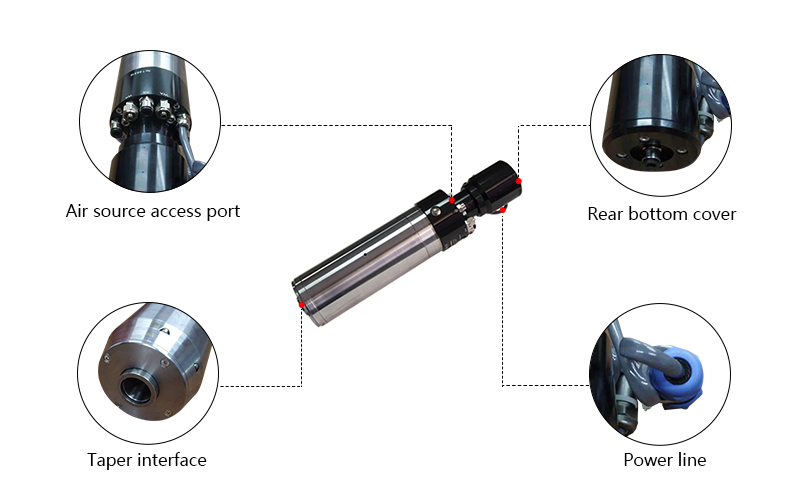

Details
Tips: Maintenance of the ATC spindle
- Clean the dust in the environment near the work area.
- Regular accessories clean the front chuck of the spindle.
- The side sealing air pressure of the automatic tool change spindle and the top tool change air pressure should maintain the three-stage filtering effect, and the side sealing air pressure must be open.
- The tool change air pressure at the top of the automatic tool change spindle is turned on to a certain value, and the self-cleaning function of the spindle can be turned on.
