4300W 110KV 6-18S Outrunner Brushless Motor for Skateboard
from
$381.71
Ex Tax: $381.71
- Stock: In Stock
- Model: SCJ009126
- SKU: SCJ009126
Products Sold: 0
Product Views: 402
Ask a Question About This Product
- Description
4300W 110KV 6-18S Outrunner Brushless Motor for Skateboard
Brief
4300W outrunner BLDC motor with 4 mm bullet connector and 110 KV rotation speed for sale online. Brushless DC motor uses multi-winding to make heat dissipation better. Hall sensors are installed at the core of the outrunner brushless motor for precise positioning and smooth start. This type of brushless DC motor used in electric skateboard and robot.
Description
4300W outrunner BLDC motor at affordable for sale. Double bearing at the bottom and single bearing at the top make the structure of the BLDC motor more stable. 9.5 N.m torque and 4300W power outrunner brushless motor widely used in elecrtic skateboard.
Specification:
| Model | SCJ009126 |
| Rated Voltage | 36V |
| Max Power | 4300W |
| Max Current | 100A |
| Motor Wire | 320 mm 12 AWG |
| Battery Model | 6-18S |
| Shaft Length | 10 mm D-shaft |
| Max Torque | 9.5 N.m |
| Bullet Connector | 4 mm |
| Rotation Speed KV (RPM/V) | 110 KV |
| Internal Resistance | 0.055 OHM |
| Motor Size | 70*70 mm |
| Motor Weight | 1.2 kg |

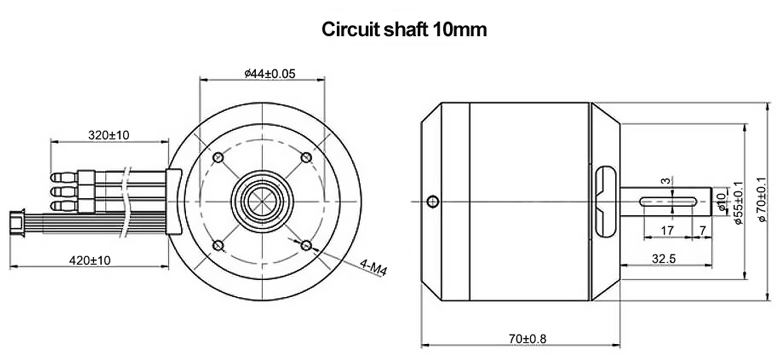

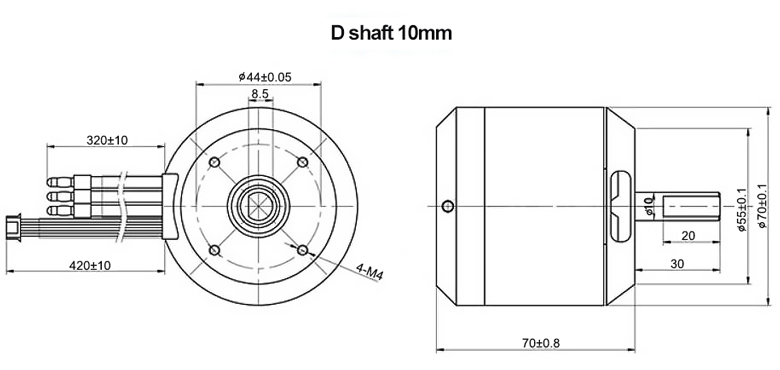

Structure:
ESC (Electronic Speed Controller) Selection for Waterproof BLDC Motor
- The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
- Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs. - The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM. - If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.
ESC (Electronic Speed Controller) Specification
| Model | Current Value | Number of Batteries (Input Voltage) |
| FSESC 4.12 | Continuous 50A, peak 240A | 3S-12S (8V-60V) |
| FSESC 4.20 | Continuous 50A, peak 240A | 3S-12S (8V-60V) |
| VESC 6.6 mini dual drive | 1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A | 3S-12S (8V-60V) |
| VESC6.6 integrated switch dual drive version | 1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A | 3S-12S (8V-60V) |
| FSESC6.7 VESC6.6 single drive integration* | Continuous 70A, peak 200A | 3S-12S (8V-60V) |
| VESC4 dual drive integration | 50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel | 3S-12S (8V-60V) |
| ODESC3.6 single drive/dual drive | 50A continuous 1-channel, peak 120A 1-channel | 3S-12S (8V-60V) |
| VESC6 dual drive | 1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A | 3S-12S (8V-60V) |
| Single drive V6 75200 | Continuous 200A | 3S-12S (8V-60V) |
| Single drive VESC6 waterproof version | Continuous 60A, peak 150A | 3S-12S (8V-60V) |
*Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.
Tips: Why Use Phenolic Epoxy Resin in Outrunner BLDC Motor?
- Strong adhesion, high mechanical strength. Because there are many polar groups in the molecule, such as hydroxyl (-OH) and ether group (-O-). Due to the polarization of these groups, the epoxy resin molecules and adjacent surfaces produce electromagnetic suction, and the epoxy group and the metal surface containing active hydrogen form a chemical bond bond is very strong, therefore, the bonding force is particularly strong.
- Good corrosion resistance. Phenolics and polyesters are not alkali resistant, while epoxy resins are better alkali resistant, and have good corrosion resistance to acids and organic solvents.
- Good heat resistance. The thermal deformation temperature is higher than polyester. Especially for hot curing products, by changing the curing agent, the hot deformation temperature can be greatly increased.
- Good electrical insulation. It has good electrical properties in different temperature range, and can be used as F class insulating material in motor.
