450 W DC Gear Motor, 3000 rpm, 12V/24V/48V
from
$326.35
Ex Tax: $326.35
- Stock: In Stock
- Model: SCJ009277
- SKU: SCJ009277
Products Sold: 0
Product Views: 447
Ask a Question About This Product
- Description
450 W DC Gear Motor, 3000 rpm, 12V/24V/48V
Brief
DC gear motor which has 450W, 3000 rpm, offers 46.88A current at 12 volt, 23.44A at 48 volt, 11.71A at 48 volt. Rated torque is 1.43 Nm, peak torque up to 4.3 Nm, its compact structure and light weight for you easy to install.
Description
This is a high torque DC gear motor providing 4.3 Nm peak torque, gear ratio is avialable with 3:1 to 200:1. 450W 3000 rpm DC motor with 90 mm size gearbox, designed for 12V, 24V, 48V DC voltage.
450W DC gear motor specifications
| Model | SCJ009277 | SOCOJED5BLD450-24 | SOCOJED5BLD450-48 |
| Power | 450W | 450W | 450W |
| Voltage | 12V | 24V | 48V |
| Rated Speed | 3000 rpm | 3000 rpm | 3000 rpm |
| No-load Speed | 3300 rpm | 3300 rpm | 3300 rpm |
| Rated Current | 46.88A | 23.44A | 11.71A |
| Rated Torque | 1.43 N.m | 1.43 N.m | 1.43 N.m |
| Peak Torque | 4.3 N.m | 4.3 N.m | 4.3 N.m |
| No-load Current | < 10.2A | < 7.13A | < 5.61A |
| Compatible Driver Model | BLD-100 (Click it to the product page) | BLD-100 (Click it to the product page) | BLD-750 (Click it to the product page) |
| Protection Grade | IP54 | ||
| Motor Lead Length | 300mm | ||
| Temperature | 0~50℃ | ||
| Weight | 3.5 Kg | ||
| Gearbox Model | 2GN□K, Enter the gear ratio into the box (□) within the model name | ||
| Gear Ratio | 3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200 | ||
Note: Motor length, power, voltage and speed can be customized according to your requirements under the allowed circumstance of adoptable dimension.
The allowable torque with a gearbox
| Gear Ratio | 3 | 5 | 7.5 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
| Speed (r/min) | 1000 | 600 | 400 | 300 | 240 | 200 | 167 | 150 | 120 | 100 | 83.33 | 75 | 60 | 50 | 40 | 33 | 30 | 25 | 20 | 17 | 15 |
| Allowable Torque (N.m) | 3.48 | 5.8 | 8.7 | 11.6 | 13.07 | 15.69 | 18.82 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Allowable Torque (kgf.cm) | 34.81 | 58.02 | 87.02 | 116 | 130.7 | 156.9 | 188.2 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
Note:
- The values colored "Red" indicate that the gearbox and the DC motor are running in the same direction, and the other values are in the opposite direction.
- When it is desired to reduce the speed further than the gear ratio in the table above, an intermediate speed reducer with a gear ratio of 10 can be installed between the motor and the gearbox.
Wiring Definition

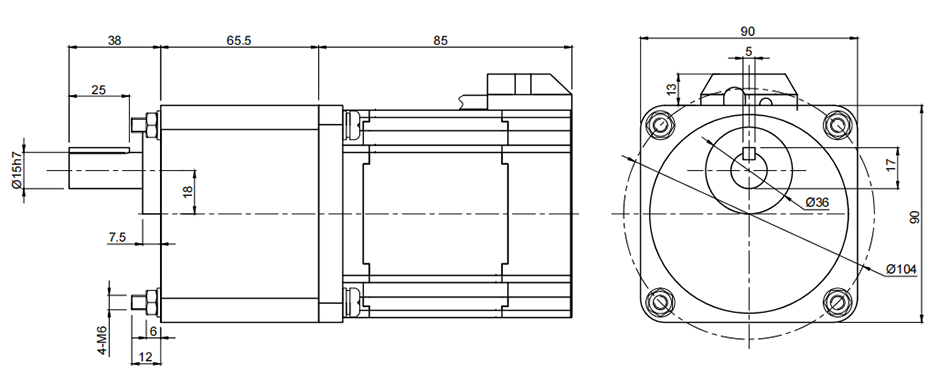

Dimension (Unit: mm)
*Mounting screws are included with gearbox
Details
Tips: Advantages of SOCOJE Gear Motors
Gear motor is used to reduce the speed, its application is closely related with its advantages. What are the advantages of SOCOJE gear motors?
- Less space, more reliable and durable and higher overload capacity.
- Low energy consumption and superior performance, high working efficiency.
- Small vibration and low noise, high energy saving, high quality materials and long service life.
- Precision machining ensures its positioning accuracy, product quality is guaranteed.
