480KV/550KV/650KV Brushless Motor for Drone, 5S/6S
Brief
brushless motor is designed for a drone. It comes with 480KV/550KV/650KV speed, (lipo) 5~6S operating rated voltage and12N14P high torque motor design. Small brushless drone motor has maximum efficiency, low noise, and higher thrust, suitable for RC aircraft, airplanes, helicopters, fixed-wing drones and robotic arms.
Description
Cheap 480KV/550KV/650KV brushless motor features a 6mm shaft diameter, NSK precision bearings, and responsive and extremely smooth flight. 5~6S brushless motor mentions high power and high-speed design to provide longer running time for fixed wing drones.
Specifications
| Model | SCJ009151 | SOCOJE-X4120-550 | SOCOJE-X4120-650 | |
| Motor KV | 880KV | 950KV | 1100KV | |
| Number of Slots | 12N14P | |||
| Shaft diameter | 6mm | |||
| Motor Size | φ49.7*70.0mm | |||
| Shaft Diameter | 3.175mm | |||
| Motor Silicone Wire Specifications | 20AWG 110mm | |||
| Interphase Internal Resistance | 22.5mΩ | 18.5mΩ | 11.7mΩ | |
| Motor Weight | 292g | 293g | 290g | |
| Operating Rated Voltage (Lipo) | 6S | 6S | 5-6S | |
| No-Load Current | 1.5A/10V | 1.9A/10V | 2.1A/10V | |
| Maximum Continuous Power | 2425W | 2500W | 2750W | |
| Maximum Continuous Current | 97A/30s | 100A/30s | 110A/30s | |
| ESC Recommended | 100A | 100-120A | 100-120A | |
| Recommended Propeller Specifications | 6S(EOLO15*8/15*10/16*8) | 6S(EOLO14*7/14*8/15 | 5S(EOLO15*8/15*10) | |
Features
- Each brushless drone motor is made by strict dynamic balancing. Original NSK bearings for lower noise and smoother operation. High-precision CNC machined parts, and fine assembly process to achieve higher runout and concentricity standards.
- 480KV/550KV/650KV brushless motor cool magic blue rotor end cap with six contours, strong and sturdy. High-quality white metallic paint with blue end caps for a more chic layered aesthetic. The stator end caps are hollowed out around the perimeter, which also increases the heat dissipation area for better heat dissipation.

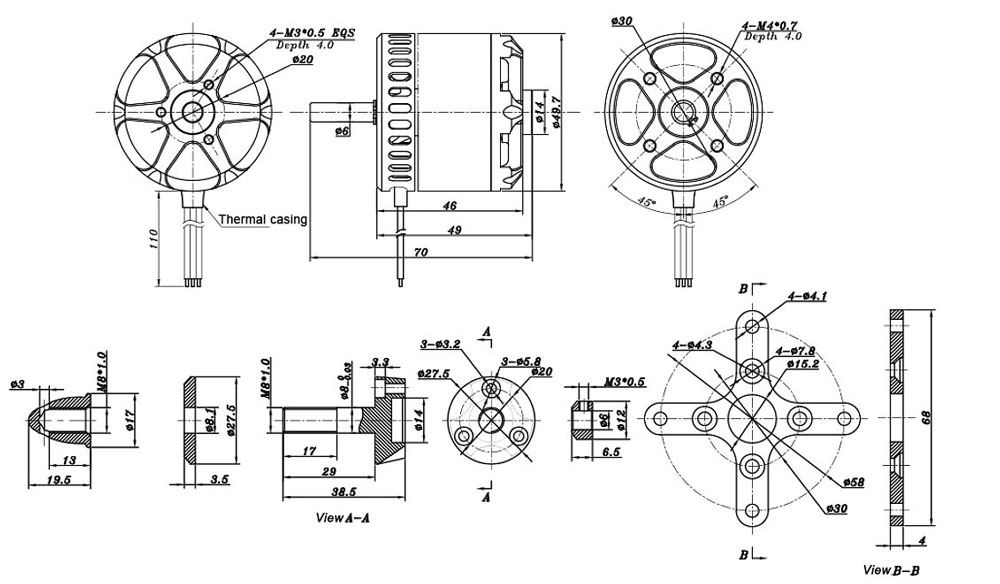

Dimensions (Unit: mm)
Tips: How are drone motors controlled?
The ESC is responsible for controlling the speed of each motor, so the most common drone architectures involve using a dedicated ESC for each motor. All ESCs must be able to communicate with each other directly or indirectly through the flight controller in order to control the drone easily.
