5 kW Water Cooling BLDC Motor For Electric Vehicle 3000-5000rpm
from
$1,375.68
Ex Tax: $1,375.68
- Stock: In Stock
- Model: SCJ009170
- SKU: SCJ009170
Products Sold: 0
Product Views: 579
Ask a Question About This Product
- Description
5 kW Water Cooling BLDC Motor For Electric Vehicle
Brief
Buy 5 kW water cooled brushless motor online at, rated speed 3000-5000rpm, rated torque 13Nm, peak torque 45 torque, high power water-cooled motor rated voltage 24V/36V/48V optional, ideal for electric cars, electric boats, forklifts.
Description
5000W DC brushless water-cooled motor for electric vehicles, rated speed 3000~5000rpm, rated voltage can choose 48V/72V/96V, brushless motor with built-in water-cooling system, no additional equipment needed.
Specifications
- Model: ATO-HPM5000W
- Voltage: 24V/36V/48V/72V
- Rated Power: 5 kW
- Peak Power: 10 kW
- Rated Current: 125A/85A/60A
- Max Phase Current: 300A/260A/200A
- Protection Class: IP54
- Rated Speed: 3700rpm
- Rated Torque: 13Nm
- Peak Torque: 45Nm
- Efficiency: >90%
- Diameter: 21cm
- Height: 18cm
- Weight: 11kg
- Cooling Method: Water-cooled
Features
- 5 kW brushless dc motor has a compact design, water resistant, stainless steel shaft, and self-cooling fan.
- Water-cooled brushless motors are easy to build and require no additional equipment.
- If you want to build an electric motorcycle with plenty of air to provide cooling air, the cooling system will be your best choice
Dimensions (Unit: mm)

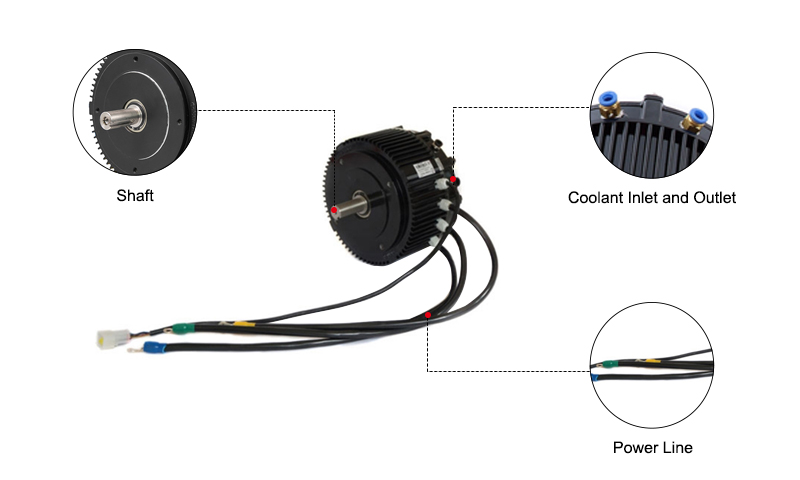

Details
Applications
5 kW brushless DC motors are suitable for cars, motorcycles, golf carts, ATVs, UTVs and yachts.
Tips: Can 5 kW water-cooled brushless DC motors be used in electric vehicles?
Water-cooled brushless DC (BLDC) motors are popular motors for industrial and automotive applications. In the automotive sector, these motors are often used in electric vehicles (EVs) due to their high efficiency.
