50 W DC Worm Gear Motor, 12V/24V, 2000 rpm
from
$459.36
Ex Tax: $459.36
- Stock: In Stock
- Model: SCJ009259
- SKU: SCJ009259
Products Sold: 0
Product Views: 478
Ask a Question About This Product
- Description
50 W DC Worm Gear Motor, 12V/24V
Brief
Low noise 50 W DC worm gear motor for electric car, renewable energy systems and industrial equipment, works with 2000 rpm high speed and 0.16N·m rated torque, selectable 12V, 24V or 36V power supply, gear ratio from 7.5:1 to 60:1.
Description
50 W 3 phase BLDC motor is equipped with worm gearbox providing high torque and high efficiency at 12V, 24V or 36V power supply. Its power, voltage, speed, shaft, motor length and lead can be customized.
Specification
| Motor Model | SOCOJED2BLD50-12GN | SOCOJED2BLD50-24GN | SOCOJED2BLD50-36GN | |
| Motor Type | BLDC Motor | |||
| Power | 50W | |||
| Voltage | 12V DC | 24V DC | 36V DC | |
| Rated Current | 5.21A | 2.60A | 1.74A | |
| No Load Current | ＜0.8A | ＜0.4A | ＜0.3A | |
| No Load Speed | 2800 rpm | |||
| Rated Speed | 2000 rpm | |||
| Rated Torque | 0.16N·m | |||
| Peak Torque | 0.48N·m | |||
| Motor Dimension | 57mm | |||
| Shaft Diameter | 11mm | |||
| Construction | Permanent Magnet | |||
| Direction of Rotation | CW/CCW | |||
| Certificate | CCC, CE, ROSH, LVD, EMC | |||
| Gear Ratio | 7.5, 10, 15, 20, 30, 40, 50, 60 | |||
| Recommended Drive Model | SCJ009259 | SOCOJE-BLD300B | SOCOJE-BLD120A | |
| What Parameters of SOCOJE Worm Gear Motors Can Be Customized? | ||||
| Power | Yes | |||
| Voltage | Yes | |||
| Speed | Yes | |||
| Shaft | Yes | |||
| Motor Length | Yes | |||
| Motor Lead | Yes | |||
Allowable Torque with Gear Head
| Gear Ratio | 7.5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 |
| Rated Output Speed (rpm) | 267 | 200 | 133 | 100 | 67 | 50 | 40 | 33 |
| Rated Output Torque (Nm) | 1.4 | 1.9 | 2.9 | 3.7 | 5.3 | 6.7 | 7.8 | 9.3 |
Note:
- This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
- The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

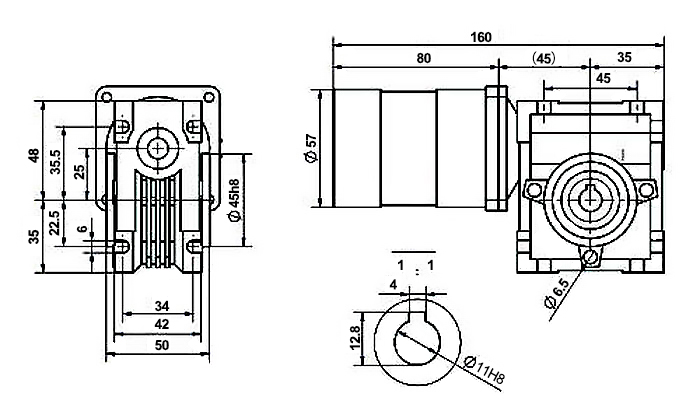

Dimensions (Unit: mm)
Mounting screws are included with gearhead

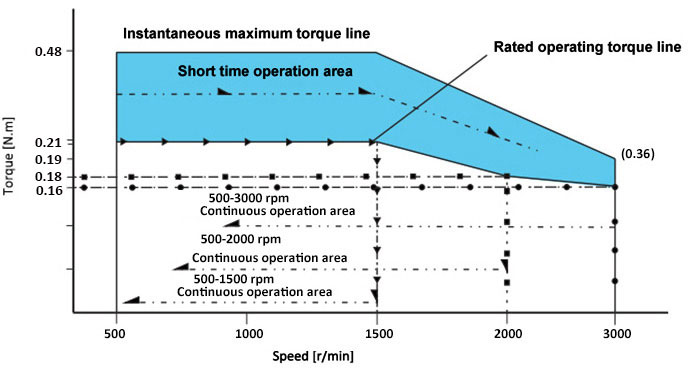

Speed-Torque Curve
- Instantaneous maximum torque line
The maximum torque momentarily impacts the load when the motor is started.
Beyond this torque, the over-current protection of the driver will cause the motor to stop. - Short time operation area
The motor can run at a short time within this torque range at different speeds.
If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn. - Rated operating torque line
The rated torque of motor running at different speeds, and the motor can run for a long time at this torque. - Continuous operating area
When the motor rotates at different speeds, it runs continuously in this corresponding zone.
Details
Tips: Advantages of DC worm gear motor
- DC worm gear motor has compact mechanical structure, light volume, small and efficient.
- Good heat exchange performance, fast heat dissipation.
- Simple installation, flexible and light, superior performance, easy maintenance.
- Large driving speed ratio, large torque, high overload capacity.
- Smooth operation, low noise, durable.
- Strong applicability, safety and reliability.
- Long service life, allowing input speed range is very low, deceleration range is large.
- It is with self-locking function suitable for lifting operations.
