5hp (3.9kW) Pneumatic Vane Air Motor, 14.4 Nm, 2500 rpm

5hp (3.9kW) Pneumatic Vane Air Motor, 14.4 Nm, 2500 rpm
5hp (3.9kW) Pneumatic Vane Air Motor, 14.4 Nm, 2500 rpm
5hp (3.9kW) Pneumatic Vane Air Motor, 14.4 Nm, 2500 rpm
5hp (3.9kW) Pneumatic Vane Air Motor, 14.4 Nm, 2500 rpm
5hp (3.9kW) Pneumatic Vane Air Motor, 14.4 Nm, 2500 rpm
5hp (3.9kW) Pneumatic Vane Air Motor, 14.4 Nm, 2500 rpm
5hp (3.9kW) Pneumatic Vane Air Motor, 14.4 Nm, 2500 rpm
from
$890.31
Ex Tax: $890.31
  • Stock: In Stock
  • Model: SCJ009599
  • SKU: SCJ009599
Products Sold: 0
Product Views: 387

Available Options

  • Description

5hp (3.9kW) Pneumatic Vane Air Motor

Brief

Vane air motor at affordable price which with 5hp, 14.4 Nm rated power, 2500 rpm rotate speed, 175 cfm air consumption, it provides high torque with smooth startup.

Description

3900 watt pneumatic vane air motor offers three installation methods to choose, maximum torque 300 rpm rotate speed, it is widely used in rock drilling of mine, drilling, ship, metallurgy, chemical engineering, and papermaking etc.

Specification

ModelOperation DataMaximum TorqueWeightInstallation MethodColorCertificationWarranty
PowerTorqueRotate SpeedAir ConsumptionRotate SpeedTorque
hpkWNmlb.inrpmm³/ hcfmrpmNmlb.inkg

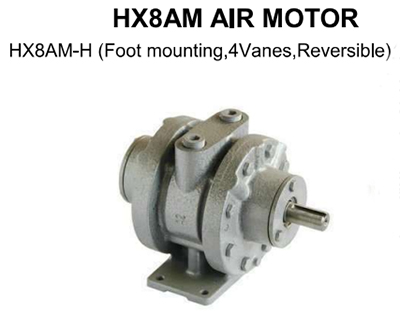

HX8AM-H5.253.914.413225002931753002118510.7Foot MountingGrayCE12 months

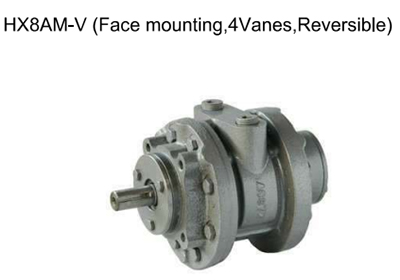

HX8AM-V10.4Face Mounting

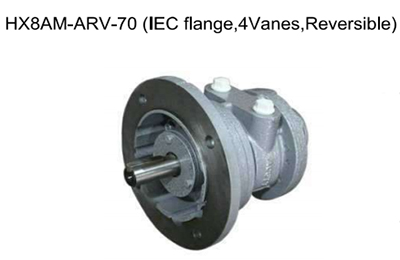

HX8AM-ARV-7013.2IEC Flange

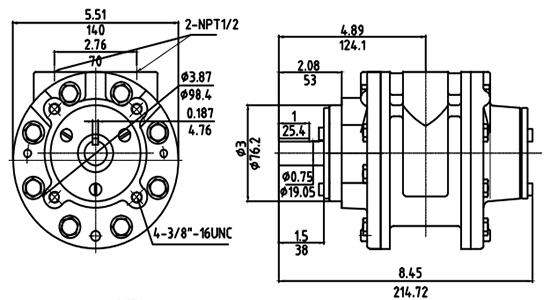

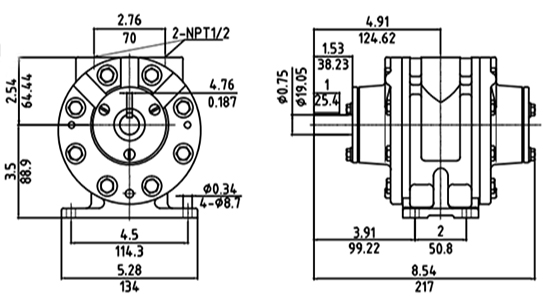

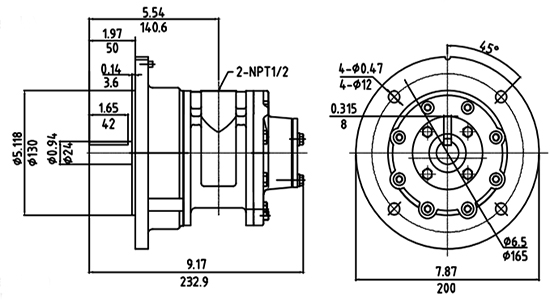

Dimension (unit=inch/mm)

5hp (3.9kW) Pneumatic Vane Air Motor              5hp (3.9kW) Pneumatic Vane Air Motor

5hp (3.9kW) Pneumatic Vane Air Motor               5hp (3.9kW) Pneumatic Vane Air Motor

5hp (3.9kW) Pneumatic Vane Air Motor                5hp (3.9kW) Pneumatic Vane Air Motor

Details

5hp (3.9kW) Pneumatic Vane Air Motor

Tips: The Characteristics of Pneumatic Vane Air Motor.

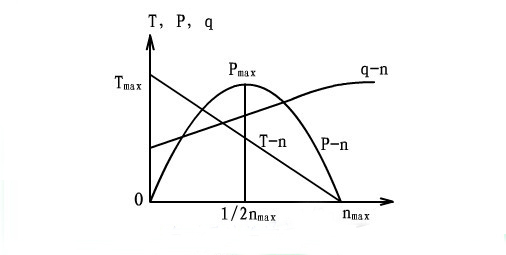

The figure below is the characteristic curve of a vane air motor made under a certain working pressure. It can be seen from the figure that the air motor has the characteristics of soft characteristics. When the applied torque T is equal to zero, it is idling. At this time, the speed reaches the maximum value, and the power output of the air motor is equal to zero; when the applied torque is equal to the maximum torque of the air motor, the motor stops rotating, and the power is also equal to zero at this time; When the applied torque is equal to half of the maximum torque. The rotation speed of the motor is also 1/2 of the maximum rotation speed. At this time, the output power P of the motor is the largest, which is indicated by.

5hp (3.9kW) Pneumatic Vane Air Motor
