60W Single Phase AC Gear Motor, Speed Control
Brief
Description
60W single phase adjust speed AC gear motor with easy to use speed controller, adopts pure copper coil for smooth running and long service life, metal gear with good wear resistance can provide large transmission torque, widely applicable for automatic machinery, small scale assembly line, food machinery, packaging machinery and more.
Specifications
| Model | SCJ009231 | SOCOJE-5IK60R-E | SOCOJE-5IK60R-C | SOCOJE-5IK60R-H | |||||
| Shaft Type | Pinion shaft or Round shaft (Optional) | ||||||||
| Output Power | 60W | ||||||||
| Phase | Single Phase | ||||||||
| Voltage | 100V | 110V | 120V | 220V | 230V | 220V | 230V | ||
| Frequency | 50Hz | 60Hz | 60Hz | 50Hz | 60Hz | ||||
| Current | 1.0A | 1.1A | 0.8A | 0.85A | 0.5A | 0.55A | 0.5A | 0.55A | |
| Speed Control Range | 90-1350r/min | 90-1650r/min | 90-1650r/min | 90-1350r/min | 90-1650r/min | ||||
| Allowance Torque | 1200r/min | 460mN.m | 490mN.m | 490mN.m | 490mN.m | 490mN.m | |||
| 90r/min | 140mN.m | 160mN.m | 160mN.m | 140mN.m | 140mN.m | ||||
| Starting Torque | 265mN.m | 265mN.m | 265mN.m | 265mN.m | |||||
| Capacitor | 20μF | 12μF | 4μF | 4μF | |||||
| Weight | Motor: 2.8kg, Gearhead: 1.35kg | ||||||||
| Gearbox Model | 5GN[]K | ||||||||
| Gear Ratio | 3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180,200 Enter the gear ratio into the box ([]) within the model name | ||||||||
Allowance Torque Unit: Upside (N.m) / Belowside (kgf.cm)
| Model | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
| Speed r/min | 50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 144 | 120 | 100 | 72 | 60 | 50 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
| SCJ009231 SOCOJE-5IK60R-E SOCOJE-5IK60R-C SOCOJE-5IK60R-H | Gearbox 5GN[]K | 50Hz | 1.1 | 1.4 | 1.9 | 2.3 | 2.9 | 3.4 | 4.8 | 5.7 | 6.8 | 8.6 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| 11.2 | 14.2 | 19.3 | 23.4 | 29.6 | 34.7 | 48.9 | 58.1 | 69.3 | 87.7 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |||
| 60Hz | 0.92 | 1.1 | 1.5 | 1.8 | 2.3 | 2.8 | 3.8 | 4.6 | 5.5 | 6.9 | 8.3 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | ||
| 9.38 | 11.2 | 15.3 | 18.3 | 23.4 | 28.5 | 38.7 | 46.9 | 56.1 | 70.1 | 84.7 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |||

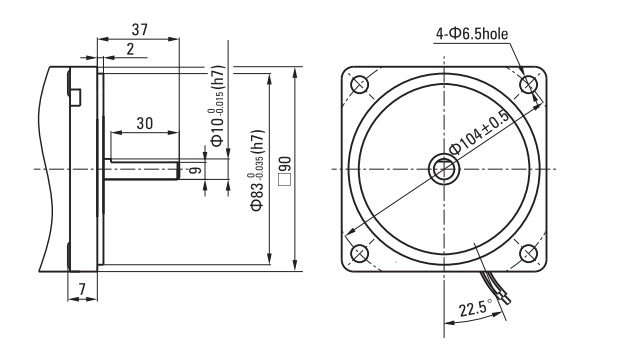

Gear Motor Dimension (Unit: mm)
(Note: Gear ratio of 3~18, L=42mm; Gear ratio of 25~200, L=60mm)

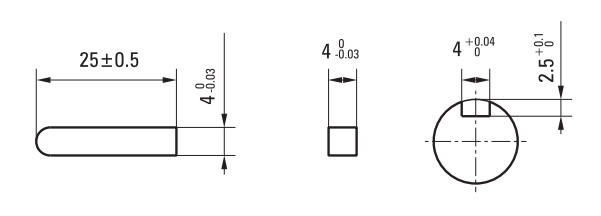

Keyway Dimension of Gearhead (Unit: mm)
Shaft Section Dimension of Round Shaft Type (Unit: mm)
(Note: For the round shaft type gear motor, the shape are the same as those of the pinion shaft type except the shaft section)
Speed Controller Dimension (Unit: mm)
Wiring Diagram
Details
Tips: What is a speed controller?
