Brushed DC Motor with Gearbox, 2800rpm 12V/24V, 70mm
Brief
Low cost brushed DC motor with 70mm diameter gearbox, 120W, 12V or 24V, 2800rpm rated speed, 3600rpm no load speed, peak torque 352.94mN•m, can select 1/3.7 to 1/139 gear ratio.
Description
BDC motor for sale online, 12V or 24V DC, comes with 70mm diameter gearbox. It has wide industrial applications, such as food processing machine, sealing equipment, textile machine, etc.
Features
- BDC motor with gearbox has compact structure and strong overload capacity.
- The gear ratio is finely graded, which provides you wide selections for different applications.
- BDC gear motor is low energy consumption, low vibration and low noise. The efficiency of the gearbox is up to 96%.
- It adopts a new type of sealing device, which can work continuously in harsh environments such as corrosion and humidity.
Specification
| Model | SCJ009572 | |||||||||||||||||||
| Working Temperature (Motor & Gearbox) | -30 ~ 150°C | |||||||||||||||||||
| DC Motor Technical Parameter | Rated Voltage | 12V DC | 24V DC | |||||||||||||||||
| No Load | Speed | 3600rpm | 3600rpm | |||||||||||||||||
| Current | 1.20A | 0.75A | ||||||||||||||||||
| At Max Efficiency | Speed | 2800rpm | 2800rpm | |||||||||||||||||
| Current | 11.7A | 5.4A | ||||||||||||||||||
| Torque | 348.04mN·m | 352.94mN·m | ||||||||||||||||||
| 3550g·cm | 3600g·cm | |||||||||||||||||||
| Power | 117W | 120W | ||||||||||||||||||
| Stall | Torque | 1254.9mN·m | 1274.5mN·m | |||||||||||||||||
| 12800g·cm | 13000g·cm | |||||||||||||||||||
| Current | 36.3A | 18.5A | ||||||||||||||||||
| Gearbox Technical Parameter | Gear Ratio | 1/3.7 | 1/5.2 | 1/13.7 | 1/19.2 | 1/27 | 1/51 | 1/71 | 1/100 | 1/139 | 1/3.7 | 1/5.2 | 1/13.7 | 1/19.2 | 1/27 | 1/51 | 1/71 | 1/100 | 1/139 | |
| Gearbox Diameter (mm) | 70 | 62 | ||||||||||||||||||
| Gearbox Length (mm) | 37.8 | 51 | 64.4 | 37.8 | 51 | 64.4 | ||||||||||||||
| Rated Torque (kg·cm) | 11.8 | 16.6 | 38.9 | 54.5 | 76.7 | 126.7 | 176.4 | 248.5 | 345.4 | 12.0 | 16.8 | 39.5 | 55.3 | 77.8 | 128.5 | 178.9 | 252.0 | 350.3 | ||
| Rated Speed (rpm) | 757 | 538.5 | 204.4 | 145.8 | 103.7 | 54.9 | 39.4 | 28.0 | 20.1 | 757 | 538.5 | 204.4 | 145.8 | 103.7 | 54.9 | 39.4 | 28.0 | 20.1 | ||
| Stall Torque (kg·cm) | 47.9 | 67.3 | 157.6 | 330.8 | 310.6 | 513.3 | 714.6 | 1000.0 | 1000.0 | 48.6 | 68.2 | 159.8 | 223.9 | 314.9 | 520.5 | 724.6 | 1000.0 | 1000.0 | ||

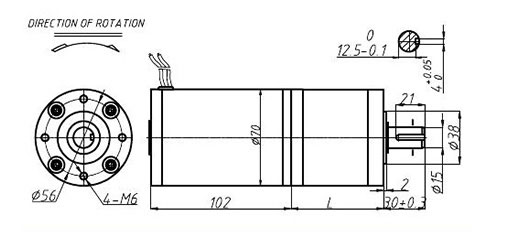

Dimensions
Units:mm

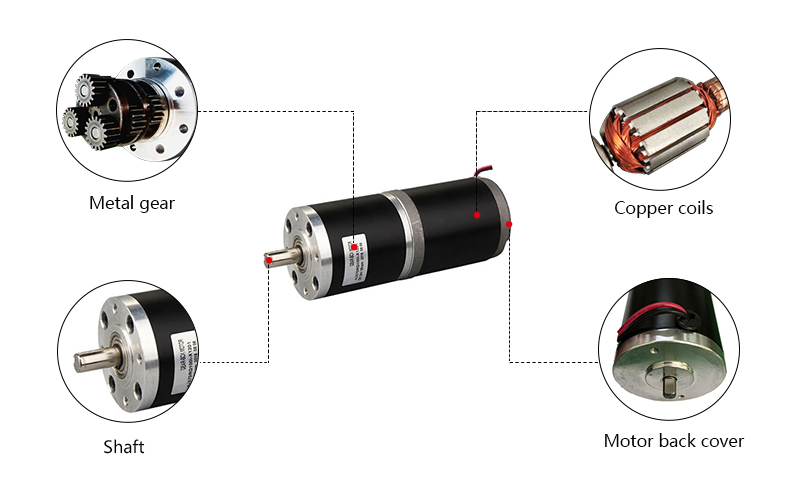

Details
Tips: Advantages of brushed DC motor
- Because the brushed DC gear motor has a simple structure, it is easy to maintain and control. The DC motor also has a fast response, large starting torque, from zero speed to rated speed with the performance of providing rated torque.
- DC brushed motor is almost no vibration from zero to the maximum speed, and can drive greater load when starting.
- DC brushed motor runs steadily and has good starting and braking effect. It is regulated by voltage regulation, so the speed operation is stable.
- DC brushed motor has high control precision. It is usually used together with gearbox and decoder, which makes the motor output power larger and the control precision higher. The control precision can reach 0.01 mm, which can make the moving parts stop at almost any desired place.
- DC brush motor is low cost and easy maintenance. Due to the simple structure of DC brush motor produced by many manufacturers with mature technology, the application is relatively wide, such as factories, processing machine tools, precision instruments. If the motor failure, only need to replace the carbon brush, each one only costs very little.
