- Stock: In Stock
- Model: SCJ009571
- SKU: SCJ009571
Ask a Question About This Product
- Description
Brushed DC Motor with Gearbox, 3200rpm, 12V/24V, 62mm
Brief
Description
Buy 12V/24V brushed DC motor online. It comes with 62mm diameter gearbox, which has wide industrial applications, such as food processing machine, sealing equipment, textile machine, etc.
Features
- Brushed DC motor with gearbox has compact structure and strong overload capacity.
- The gear ratio is finely graded, which provides you wide selections for different applications.
- Brushed DC gear motor is low energy consumption, low vibration and low noise and the efficiency of the gearbox is up to 96%.
- It adopts a new type of sealing device, which can work continuously in harsh environments such as corrosion and humidity.
Specification
| Model | SCJ009571 | |||||||||||||||||||
| Working Temperature (Motor & Gearbox) | -30 ~ 150°C | |||||||||||||||||||
| DC Motor Technical Parameter | Rated Voltage | 12V DC | 24V DC | |||||||||||||||||
| No Load | Speed | 4000rpm | 4000rpm | |||||||||||||||||
| Current | 0.95A | 0.50A | ||||||||||||||||||
| At Max Efficiency | Speed | 3200rpm | 3200rpm | |||||||||||||||||
| Current | 6.8A | 3.400A | ||||||||||||||||||
| Torque | 245.1mN·m | 254.9mN·m | ||||||||||||||||||
| 2500g·cm | 2600g·cm | |||||||||||||||||||
| Power | 66W | 68W | ||||||||||||||||||
| Stall | Torque | 882.4mN·m | 931.4mN·m | |||||||||||||||||
| 9000g·cm | 9500g·cm | |||||||||||||||||||
| Current | 23.7A | 12.0A | ||||||||||||||||||
| Gearbox Technical Parameter | Gear Ratio | 1/3.7 | 1/5.2 | 1/13.7 | 1/19.2 | 1/27 | 1/51 | 1/71 | 1/100 | 1/139 | 1/3.7 | 1/5.2 | 1/13.7 | 1/19.2 | 1/27 | 1/51 | 1/71 | 1/100 | 1/139 | |
| Gearbox Diameter (mm) | 62 | 62 | ||||||||||||||||||
| Gearbox Length (mm) | 37.8 | 51 | 64.4 | 37.8 | 51 | 64.4 | ||||||||||||||
| Rated Torque (kg·cm) | 8.3 | 11.7 | 27.4 | 38.4 | 54.0 | 89.3 | 124.3 | 175.0 | 243.3 | 8.7 | 12.2 | 28.5 | 39.9 | 56.2 | 92.8 | 129.2 | 182.0 | 253.0 | ||
| Rated Speed (rpm) | 865 | 615.4 | 233.6 | 16637 | 118.5 | 62.7 | 45.1 | 32.0 | 23.0 | 865 | 515.4 | 233.6 | 166.7 | 118.5 | 62.7 | 45.1 | 32.0 | 23.0 | ||
| Stall Torque (kg·cm) | 37.5 | 52.7 | 123.3 | 172.8 | 243.0 | 401.6 | 559.1 | 787.5 | 800.0 | 39.0 | 54.8 | 128.2 | 179.7 | 252.7 | 417.7 | 581.5 | 800.0 | 800.0 | ||

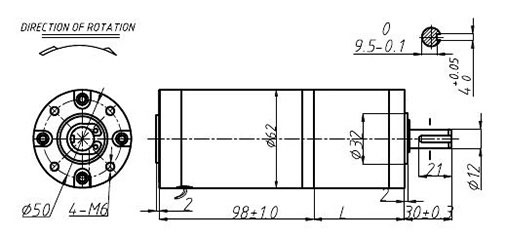

Dimensions
Units: mm

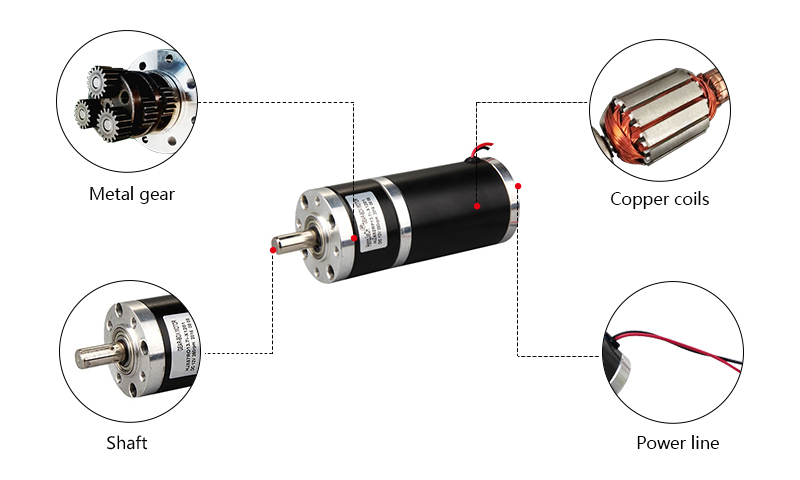

Details
Tips: What is the brushed DC motor?
Brushed DC gear motor is a built-in brush device. The fixed main pole and brush are installed on the stator of the BDC motor, and the armature winding and commutator are installed on the rotor. The electric energy from the DC power supply enters the armature winding through the brush and commutator, generating armature current. The magnetic field generated by the armature current interacts with the main magnetic field to generate electromagnetic torque, which makes the motor rotate and drive the load. BDC motor is the basis of all motors, it has the characteristics of fast start, timely braking, relatively simple control circuit and so on.
