Brushed DC Motor with Gearbox, 4000rpm, 12V/24V, 36mm
from
$145.66
Ex Tax: $145.66
- Stock: In Stock
- Model: SCJ009567
- SKU: SCJ009567
Products Sold: 0
Product Views: 347
Ask a Question About This Product
- Description
Brushed DC Motor with Gearbox, 4000rpm, 12V/24V, 36mm
Brief
Buy brushed DC motor with 36mm diameter gearbox online, 12V or 24V rated voltage, 23.5 or 25.4mN•m peak torque, 4000rpm rated speed, gear ratio from 1/3.7 to 1/139 to get different rated torque and speed.
Description
4000rpm brushed DC motor with 36mm gearbox is suitable for a lot of industrial applications such as food processing machine, sealing equipment, textile machine, etc.

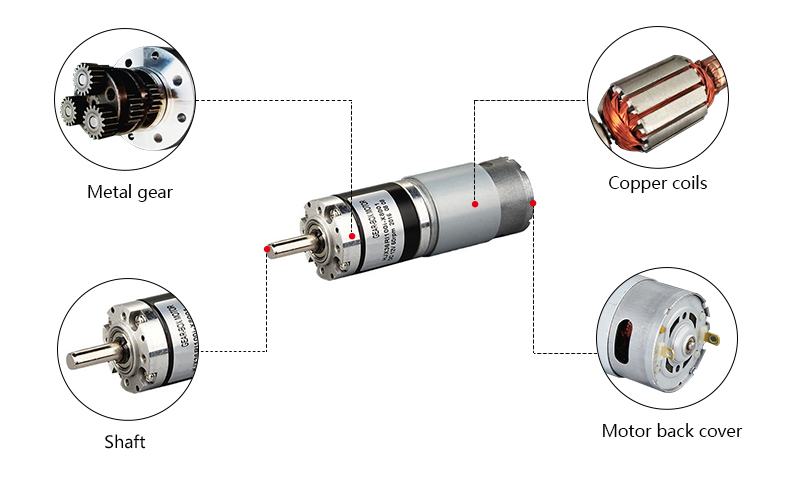

Features
- Brushed DC motor with gearbox has compact structure and strong overload capacity.
- The gear ratio is finely graded, which provides you wide selections for different applications.
- BDC gear motor is low energy consumption, low vibration and low noise. The efficiency of the gearbox is up to 96%.
- It adopts a new type of sealing device, which can work continuously in harsh environments such as corrosion and humidity.
Specification
| Model | SCJ009567 | |||||||||||||||||||||
| Working Temperature (Motor & Gearbox) | -30 ~ 150°C | |||||||||||||||||||||
| DC Motor Technical Parameter | Rated Voltage | 12V DC | 24V DC | |||||||||||||||||||
| No Load | Speed | 5000rpm | 5000rpm | |||||||||||||||||||
| Current | 0.38A | 0.2A | ||||||||||||||||||||
| At Max Efficiency | Speed | 4000rpm | 4000rpm | |||||||||||||||||||
| Current | 1.45A | 0.726A | ||||||||||||||||||||
| Torque | 24.5mN·m | 25.4mN·m | ||||||||||||||||||||
| 250g·cm | 260g·cm | |||||||||||||||||||||
| Power | 10W | 10.5W | ||||||||||||||||||||
| Stall | Torque | 115.4mN·m | 134.3mN·m | |||||||||||||||||||
| 1380g·cm | 1500g·cm | |||||||||||||||||||||
| Current | 5.8A | 2.884A | ||||||||||||||||||||
| Gearbox Technical Parameter | Gear Ratio | 1/3.7 | 1/5.2 | 1/13.7 | 1/19.2 | 1/27 | 1/35 | 1/51 | 1/71 | 1/100 | 1/139 | 1/3.7 | 1/5.2 | 1/13.7 | 1/19.2 | 1/27 | 1/35 | 1/51 | 1/71 | 1/100 | 1/139 | |
| Gearbox Diameter (mm) | 36 | 36 | ||||||||||||||||||||
| Gearbox Length (mm) | 28.2 | 37 | 46 | 28.2 | 37 | 46 | ||||||||||||||||
| Rated Torque (kg·cm) | 0.8 | 1.2 | 2.7 | 3.8 | 5.4 | 7.0 | 8.9 | 12.4 | 17.5 | 24.7 | 0.9 | 1.2 | 2.8 | 4.0 | 5.6 | 7.2 | 9.3 | 9.4 | 13.3 | 18.4 | ||
| Rated Speed (rpm) | 1081 | 769.2 | 292.0 | 208.3 | 148.1 | 114.0 | 78.4 | 56.3 | 40.0 | 28.8 | 1081 | 769.2 | 292.0 | 208.3 | 148.1 | 114.0 | 78.4 | 56.3 | 40.0 | 28.8 | ||
| Stall Torque (kg·cm) | 3.7 | 5.3 | 12.3 | 17.3 | 24.3 | 30.0 | 40.2 | 55.9 | 78.8 | 111.0 | 3.9 | 5.5 | 12.8 | 18.0 | 25.3 | 36.0 | 41.8 | 42.4 | 59.7 | 82.9 | ||

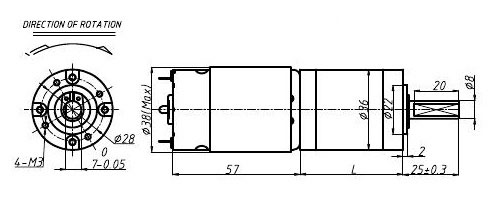

Dimensions
Units: mm
Details
Tips: How to select a brushed DC motor with gearbox?
- Level of protection
The level of protection of the brushed DC motor shell should be considered according to the provisions of the natural environment of the installation site.
- Rated current and frequency
The rated operating standard voltage and frequency of the BDC motor shall be consistent with the operating voltage and frequency of the applied switching power supply.
- Maximum power
The maximum power of the brushed gear motor should be consistent with the mechanical power of the drive as far as possible.
