7000W 130KV 14S Outrunner Brushless Motor for Skateboard
from
$362.46
Ex Tax: $362.46
- Stock: In Stock
- Model: SCJ009128
- SKU: SCJ009128
Products Sold: 0
Product Views: 452
Ask a Question About This Product
- Description
7000W 130KV 14S Outrunner Brushless Motor for Skateboard
Brief
7000 watt brushless DC motor operating at 14S (DC 51V) battery power supply, 130KV rotation speed, 17 N.m high torque, max current 148A, shaft diameter 12mm. BLDC motor kit (motor + ESC controller) is optional for matching, suitable for electric skateboard/longboard/mountainboard.
Description
130KV outrunner BLDC motor paired with brushless dc driver best for electric skateboard, longboard, mountainboard and other applications. 7kW high power with high torque of 17N.m, 12mm shaft, 14S (DC 51V) input voltage.
Specification
| Model | SCJ009128 |
| Max Power | 7000W (9 hp) |
| Rotation Speed KV (RPM/V) | 130KV |
| Max Current | 148A |
| Max Input Voltage* | DC 51V |
| Max Torque | 17 N.m |
| Recommend ESC | 6-14S 200A |
| Motor Length | 107mm |
| Motor Diameter | 80mm |
| Weight | 3.96 lb/1.82 kg |
| SHAFT diameter | 12mm |
| Thread Size of Shaft | M12 |
| Sensor | yes |
*Note: The motor is powered by 14S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

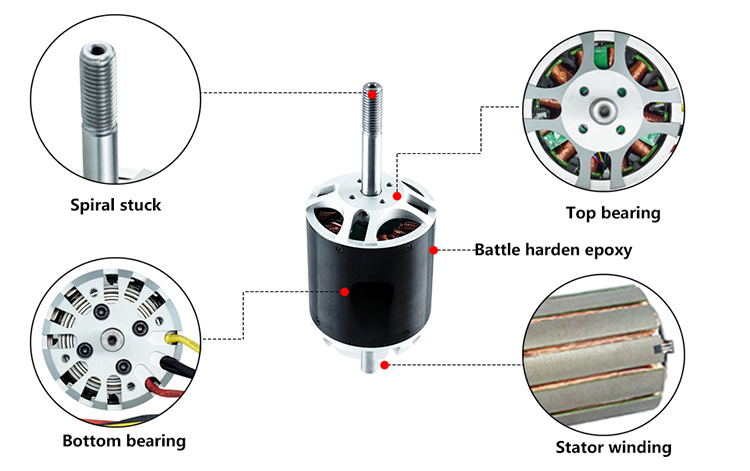

7000W Outrunner Brushless DC Motor Details

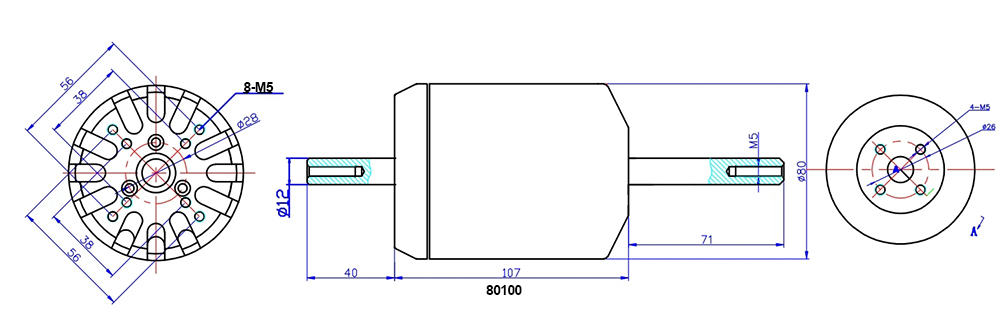

Brushless DC Motor Dimensions Drawing (Unit: mm)
ESC (Electronic Speed Controller) Selection for E-Board BLDC Motor
- The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
- Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs. - The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM. - If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.
ESC (Electronic Speed Controller) Specification
| Model | Current Value | Number of Batteries (Input Voltage) |
| FSESC 4.12 | Continuous 50A, peak 240A | 3S-12S (8V-60V) |
| FSESC 4.20 | Continuous 50A, peak 240A | 3S-12S (8V-60V) |
| VESC 6.6 mini dual drive | 1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A | 3S-12S (8V-60V) |
| VESC6.6 integrated switch dual drive version | 1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A | 3S-12S (8V-60V) |
| FSESC6.6 VESC6.6 single drive integration | Continuous 60A, peak 150A | 3S-12S (8V-60V) |
| VESC4 dual drive integration | 50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel | 3S-12S (8V-60V) |
| ODESC3.6 single drive/dual drive | 50A continuous 1-channel, peak 120A 1-channel | 3S-12S (8V-60V) |
| VESC6 dual drive | 1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A | 3S-12S (8V-60V) |
| Single drive V6 75200 | Continuous 200A | 3S-12S (8V-60V) |
| Single drive VESC6 waterproof version | Continuous 60A, peak 150A | 3S-12S (8V-60V) |
Note: If you need to learn more details about ESC controllers, please contact us.
