40 hp 400-750cc Radial Piston Hydraulic Motor, 25MPa
from
$2,063.69
Ex Tax: $2,063.69
- Stock: In Stock
- Model: SCJ009545
- SKU: SCJ009545
Products Sold: 0
Product Views: 288
Ask a Question About This Product
- Description
40 hp 400-750cc Radial Piston Hydraulic Motor, 25MPa
Brief
High torque low speed radial piston hydraulic motor for sale. Rated power 40~48 hp (30~36kW), working pressure 14/16 MPa, torque 939~1616 N.m, theoric specific torque 59~111N.m/MPa, maximum speed 220~320 rpm, displacement 400~750cc (mL/r). Radial piston engine produced by high-quality manufacturer.
Description
Radial piston hydraulic motor has high torque of 939~1616 N.m, works at power of 40~48 hp (30~36kW), displacement 400~750cc (mL/r), rated pressure 2030~2320 psi. If you need high output torque, please select a low speed.
Specification
| Model | SCJ009545 | ||||||
| Displacement (cc/r) | 400 | 450 | 500 | 600 | 700 | 750 | |
| Rated Power | (hp) | 36 | 40 | 41 | 47 | 48 | 41 |
| (kW) | 27 | 30 | 31 | 35 | 36 | 31 | |
| Rated Pressure | (MPa) | 16 | 16 | 16 | 16 | 16 | 14 |
| (psi) | 2320 | 2320 | 2320 | 2320 | 2320 | 2030 | |
| Peak Pressure (MPa) | 22 | 22 | 25 | 20 | 20 | 18 | |
| Rated Torque (N.m) | 939 | 1069 | 1162 | 1405 | 1616 | 1561 | |
| Theoric Specific Torque (N.m/MPa) | 59 | 67 | 73 | 88 | 101 | 111 | |
| Max. Speed (r/min) | 320 | 320 | 300 | 280 | 250 | 220 | |
| Weight (kg) | 63 | 63 | 63 | 63 | 63 | 63 | |
Features
- The radial piston hydraulic motor is a large torque motor with crankshaft and rod.
- The shell of radial piston hydraulic motor is extruded and nitrided, which is resistant to wear, fatigue and high temperature.
- The plunger body is nitrided, added with specially developed piston rings, and good wear resistance.
- Oil seal of the radial piston hydraulic motor uses skeleton oil seals, high temperature resistance, high pressure, and it is not easy to leakage.
- Applications of the radial piston hydraulic motor include injection molding machines, ship deck machinery, construction machinery, lifting vehicles, heavy metallurgical machinery, petroleum mine machinery, light equipment, board, drilling machines and other hydraulic transmission systems and equipment, etc.

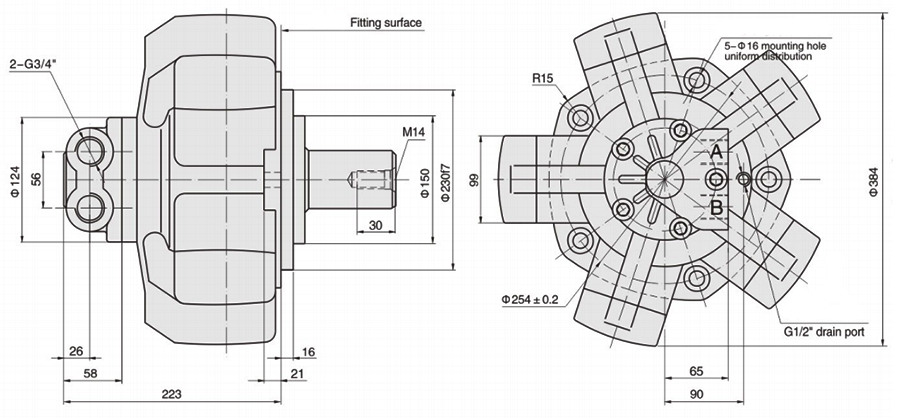

40 hp Radial Piston Hydraulic Motor Dimensions Diagram (Unit: mm)

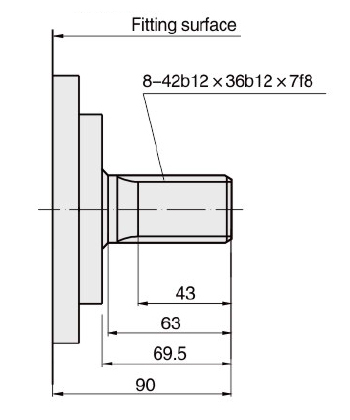

Standard Involute Spline
40 hp Radial Piston Hydraulic Motor Mounting Diagram
