Nema 23 Stepper Motor, 3 Phase, 5.8A, 1.5N·m
from
$94.69
Ex Tax: $94.69
- Stock: In Stock
- Model: SCJ009395
- SKU: SCJ009395
Products Sold: 0
Product Views: 381
Ask a Question About This Product
- Description
Nema 23 Stepper Motor, 3 Phase, 5.8A, 1.5N·m
Brief
Low cost CNC Nema 23 stepper motor online sale, 5.8A, holding torque 1.5N·m, step angle 1.2 degree, three phase three lead wires, 76mm motor length and 8mm shaft, compact size, high torque, high speed response and lightweight.
Description
3 phase bipolar stepper motor with 3 lead wires is convenient to adjust the speed, long service life and low maintenance cost. This hybrid stepper motor with 8mm shaft, is used in CNC machine, drawing equipment and sewing machine, robot arm and 3D printer.
Physical Specification
- Model Number: SOCOJE-FY56TL580A
- Flanged Size: 57 x 57mm (Nema 23)
- Motor Length: 76mm
- Shaft Diameter: 8mm
- Number of Leads: 3 wire
- Weight: 1.0kg
Electrical Specification
- Motor Type: Bipolar Stepper
- Step Angle: 1.8°
- Rated Current: 5.8A
- Holding Torque: 1.5 N·m (150 N·cm, 212.5 Oz.in)
- Phase Resistance: 0.55Ω
- Phase Inductance: 1.7mH
- Rotor Inertia: 480g·cm2

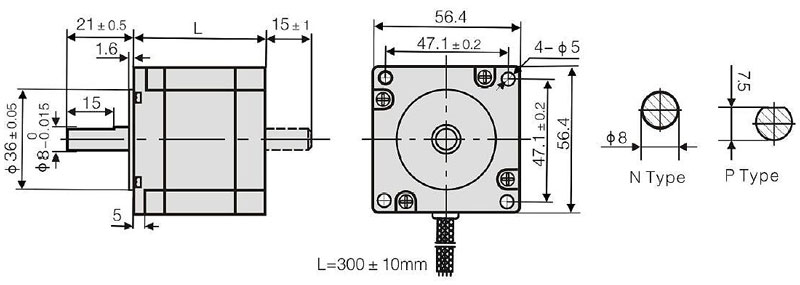

Dimensions (Unit: mm)
L=76mm

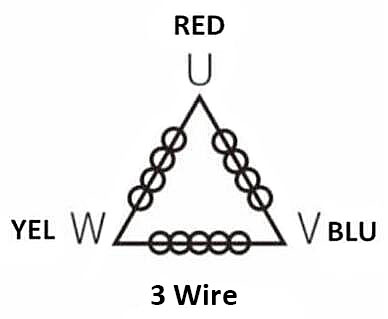

Wiring Diagram

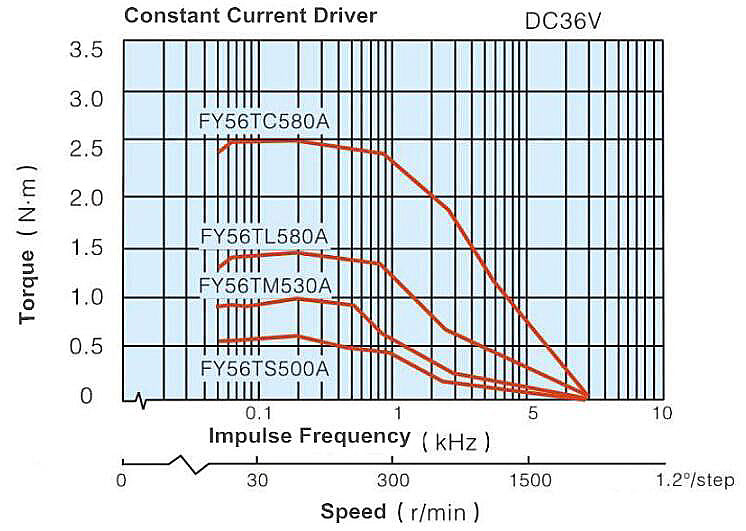

Speed-Torque Curve Diagram

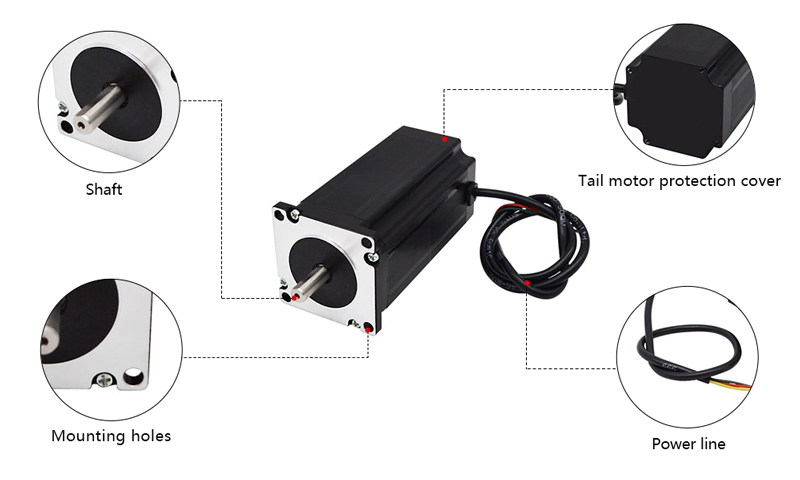

Details
Tips: The reason why stepper motor does not run after power on
Stepper motor is a kind of induction motor. Its working principle is to use electronic circuit to change direct current into time-sharing power supply. And multi-phase sequential control current. Use this kind of current to supply power to the motor to work normally. A stepper motor driver is required for power supply and multi-phase. There may be three reasons why the motor does not run after power on:
- Overload and stall.
- The motor is offline.
- The control system has a pulse signal to the stepper motor driver or there is a problem with the wiring.
