Nema 34 Stepper Motor, 2 Phase, 5A, 12N·m
from
$220.94
Ex Tax: $220.94
- Stock: In Stock
- Model: SCJ009359
- SKU: SCJ009359
Products Sold: 0
Product Views: 391
Ask a Question About This Product
- Description
Nema 34 Stepper Motor, 2 Phase, 5A, 12N·m
Brief
2 phase 4 wire hybrid stepper motor comes with holding torque up to 12N·m, 1.8 degree step angle, draws high current of up to 5A. This Nema 34 86 x 86mm bipolar stepper motor is high torque motor for CNC machine, 3D printer and robot arm.
Description
Nema 34 hybrid stepper motor has 4 wire and can be used in bipolar mode. It with high holding torque of 12 N·m is suitable for the biggest projects, such as CNC application, robotic, 3D technology and so on.
Physical Specification
- Model Number: SOCOJE-FY86EC500A
- Matched the Driver Model: ATO-FYDM808T
- Flanged Size: 86 x 86mm (Nema 34)
- Motor Length: 150mm
- Shaft Diameter: 14mm/ 12.7mm
- Number of Leads: 4 wire
- Weight: 5.2kg
Electrical Specification
- Motor Type: Bipolar Stepper
- Step Angle: 1.8°
- Rated Current: 5A
- Holding Torque: 1200 N·cm (12 N·m, 1700 Oz.in)
- Phase Resistance: 1.2Ω
- Phase Inductance: 6mH
- Rotor Inertia: 6200g·cm2

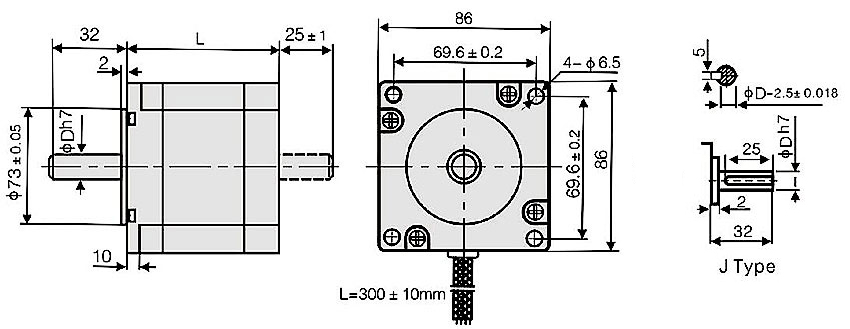

Dimensions (Unit: mm)
L=150mm

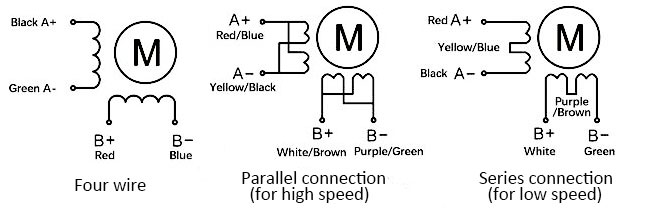

Wiring Diagram

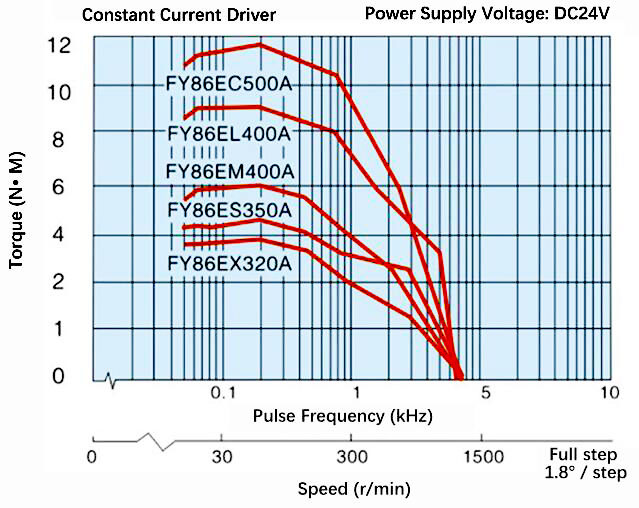

Speed-Torque Curve Diagram

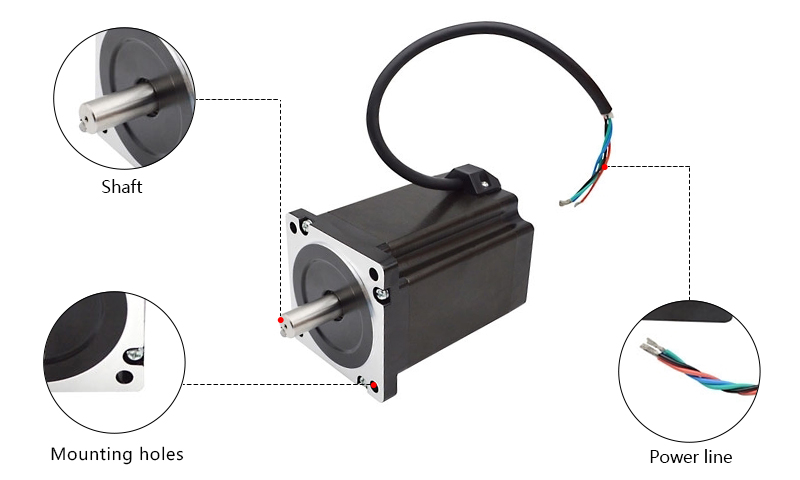

Details
Tips: The wiring method of stepper motor
There are many ways to connect permanent magnet stepper motors, mainly four wire lead and six wire lead. The difference between the two mainly lies in the flexibility of connection with the driver. 2 phase 3 wire motors can only use bipolar drivers, 2 phase 6 wire motors can use either bipolar drivers or unipolar drivers.
