Nema 6 Micro Stepper Motor, 3V/ 5V, 2 Phase, Bipolar
from
$35.69
Ex Tax: $35.69
- Stock: In Stock
- Model: SCJ009343
- SKU: SCJ009343
Products Sold: 0
Product Views: 458
Ask a Question About This Product
- Description
Nema 6 Micro Stepper Motor, 3V/ 5V, 2 Phase, Bipolar
Brief
Nema 6 micro stepper motor for sale, with metal gear. Rated voltage 3V or 5V, current 0.16~0.5A for selection, stepping angle 18 degree, resistance 10Ω/15Ω, holding torque 1.4~2.6 mN-m. 2-phase miniature stepper motor, bipolar drive.
Description
Micro stepper motor has size of Nema 6 (Ф15mm). Optional voltage DC 3V/5V, current 0.16~0.5Amp, resistance 10/15Ω, stepping angle 18°. 2 phase miniature bipolar stepper motor with metal gear, suitable for medical equipment, printer, scanner, automotive meter, gas range, sewing machine, security systems, optical fiber welding equipment, etc.
Specification Datasheet
| Model | SCJ009343 | SOCOJE-SM1566 | SOCOJE-SM1568 |
| Rated Voltage | 3V | 5V | 5V |
| Rated Current | 0.2A | 0.16A | 0.5A |
| Resistance | 15Ω | 15Ω | 10Ω |
| Phase | 2 Phase | 2 Phase | 2 Phase |
| Stepping Angle | 18° | 18° | 18 |
| Excitation Method | 2 | 2 | 2 |
| Pull-in Torque | 0.5 mN-m (200 pps) | 1.0 mN-m (500 pps) | 1.3 mN-m (300 pps) |
| Pull-out Torque | 0.6 mN-m (200 pps) | 1.4 mN-m (500 pps) | 1.6 mN-m (300 pps) |
| Holding Torque | 1.4 mN-m (0 pps) | 2.3 mN-m (0 pps) | 2.6 mN-m (0 pps) |
| Max. Continuous Response Frequency | 560 pps | 1100 pps | 1500 pps |
| Max. Starting Frequency | 500 pps | 900 pps | 1000 pps |
| Drive Mode | Bipolar Drive | ||
| Ambient Temperature | 0℃~55℃ | ||
| Insulation Resistance | 500VDC 100MΩ min | ||
| Insulation Grade | E | ||
Phase Sequence Excitation & Dimensions Diagram (Unit: mm)

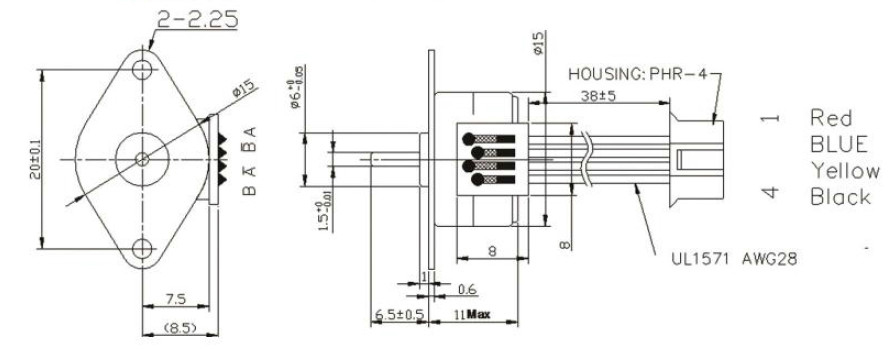

- 3V 0.2A Micro Stepper Motor (SCJ009343)
| Connector PIN Location | ||||||
| PIN No. | Color | CCW←→CW (Seen from flange side) | Phase | |||
| 1 | Red | ON | - | - | ON | A |
| 2 | Blue | - | - | ON | ON | B |
| 3 | Yellow | - | ON | ON | - | A |
| 4 | Black | ON | ON | - | - | B |

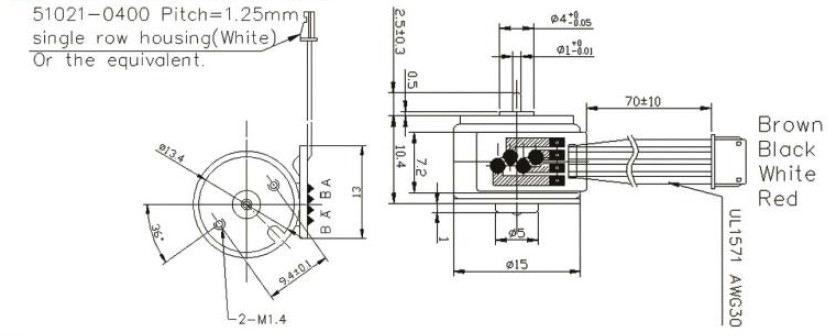

- 5V 0.16A Micro Stepper Motor (SOCOJE-SM1566)
| Connector PIN Location | ||||||
| PIN No. | Color | CCW←→CW (Seen from flange side) | Phase | |||
| 1 | Brown | - | ON | ON | - | A |
| 2 | Black | ON | - | - | ON | A |
| 3 | White | - | - | ON | ON | B |
| 4 | Red | ON | ON | - | - | B |

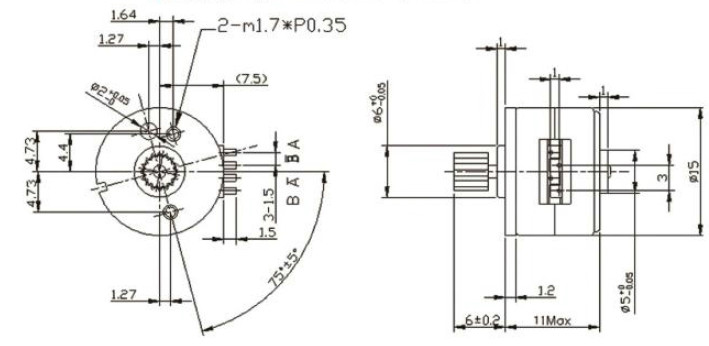

- 5V 0.5A Micro Stepper Motor (ATO-SM1568)
| Connector PIN Location | ||||||
| PIN No. | Color | CCW←→CW (Seen from flange side) | Phase | |||
| 1 | - | ON | - | - | ON | A |
| 2 | - | - | - | ON | ON | B |
| 3 | - | - | ON | ON | - | A |
| 4 | - | ON | ON | - | - | B |

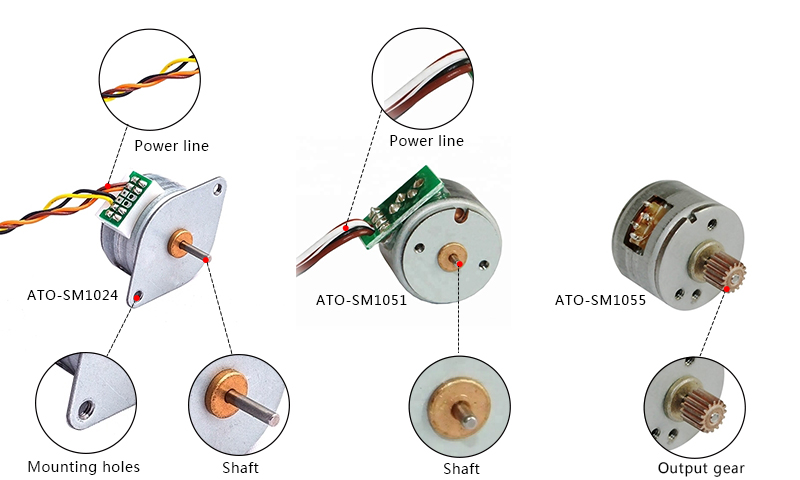

Details
Tips: How to install Nema 6 micro stepper correctly?
- Wire distribution of the Nema 6 micro stepper needs to be straightened and not bent, otherwise it will cause problems such as poor electrical conductivity inside the motor.
- In the process of installing Nema 6 micro stepper, pay attention to protect the DC motor from impact. When installing structural parts on the output shaft of DC motor, it is not allowed to directly hit or press on the output shaft.
- Do not forcefully rotate the gear from the shaft end of Nema 6 micro stepper, otherwise the gear will be damaged. When fixing the transmission structure with adhesive on the reducer output shaft, the bearing of reducer cannot be adhered.
