75 rpm AC Synchronous Gear Motor 24V/110V/220V
Brief
Description
AC PMSM electric motor is mostly used for air cooler, laminator, outdoor auto control machine and monitor, etc. It is reversible and starts by capacitor.
Specification
| Model | SCJ009586 | |||||
| Duty Type | S1 Continues | S2 (30 mins) | ||||
| Voltage (AC) | 24V | 110V | 220V-240V | 24V | 110V | 220V-240V |
| Power Frequency | 50/60 Hz | 50/60 Hz | ||||
| Output Speed | 75 rpm | |||||
| Output Torque | 6 Kgf·cm | 8 Kgf·cm | ||||
| Rated Speed | 1200 rpm | 1200 rpm | ||||
| Input Power | < 17W | < 25W | ||||
| Input Current | < 0.65A | < 0.15A | < 0.08A | < 1.5A | < 0.35A | < 0.2A |
| Rotation | CW/CCW (Reversible) | CW/CCW (Reversible) | ||||
| Operating Temperature | -15 ~ 40℃ | -15 ~ 40℃ | ||||
| Coil Temperature Rise | < 80K | < 80K | ||||
| Insulation Class | B | B | ||||
| Insulation Strength | AC 1500/ 50Hz/min | AC 1500/ 50Hz/min | ||||
| Recommended Capacitance | 47μF/ 63V | 2.2μF/ 250V | 0.56μF/ 450V | 67μF/ 63V | 3.0μF/ 250V | 0.8μF/ 450V |

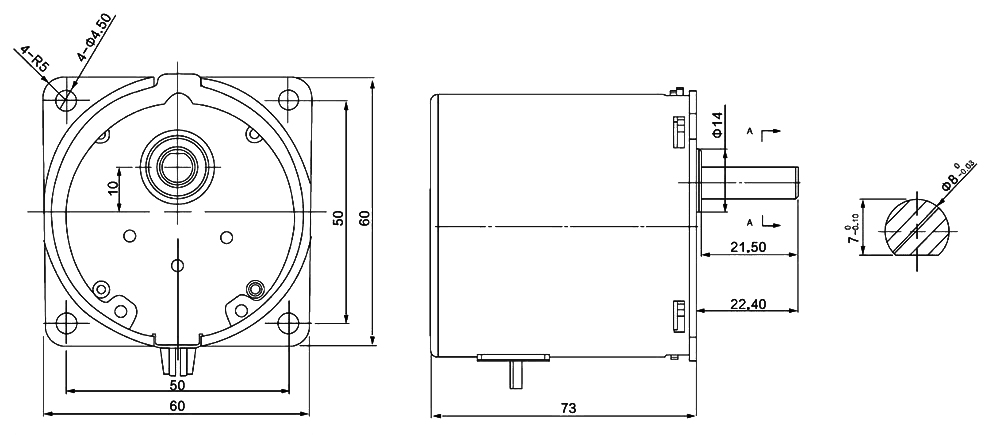

Dimensions (Units: mm)

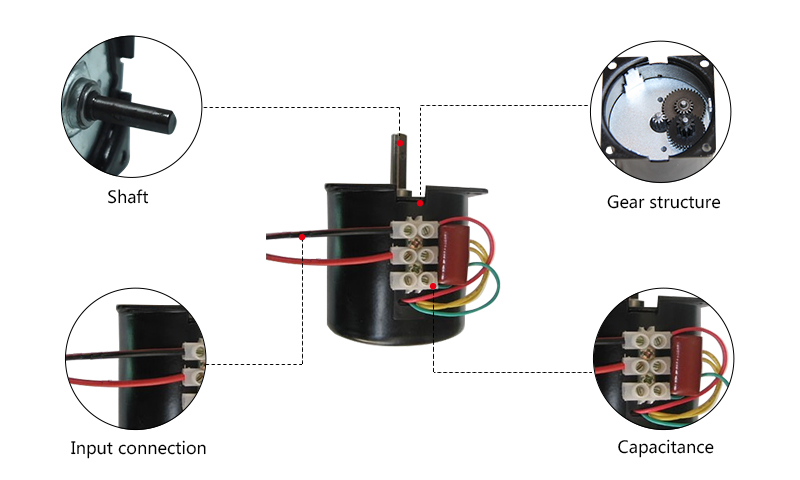

Details
Tips: Variable frequency control of AC PM synchronous motor

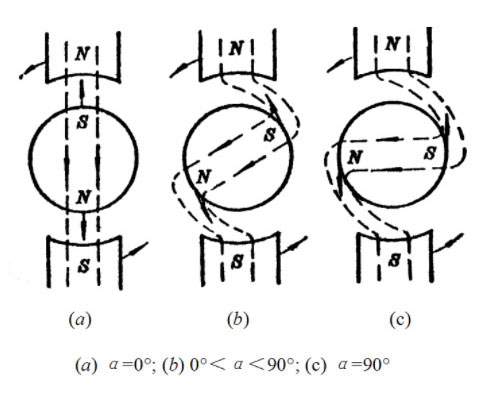

The electromagnetic torque of AC synchronous motor is related to the size of the included angle α between the stator and rotor magnetic field axis.
For permanent magnet synchronous motors with hidden pole rotor (p=1),
When α=0°, only radial force is applied to the rotor, no electromagnetic torque is formed.
When 0° < α < 90°, the force applied to the rotor can be decomposed into a radial component and a tangential component, in which the tangential component produces the electromagnetic torque.
When α=90°, the rotor is only subjected to tangential force, and the electromagnetic torque is the maximum, which is called the maximum synchronous torque.
