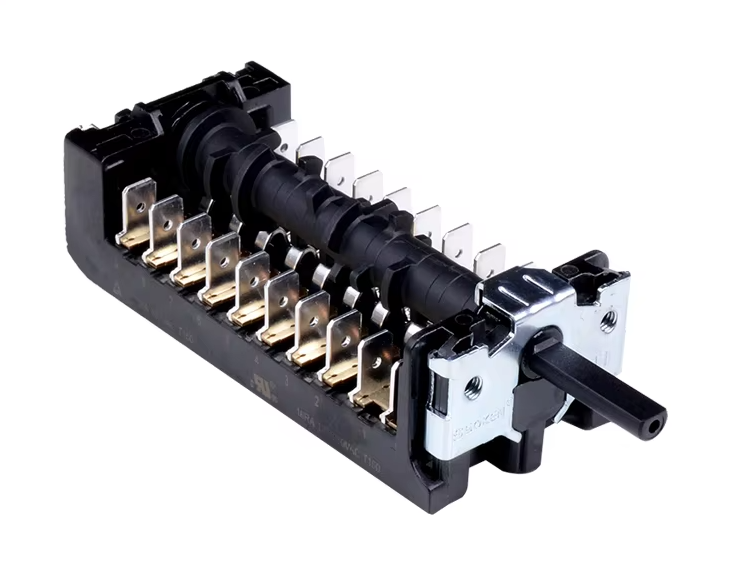

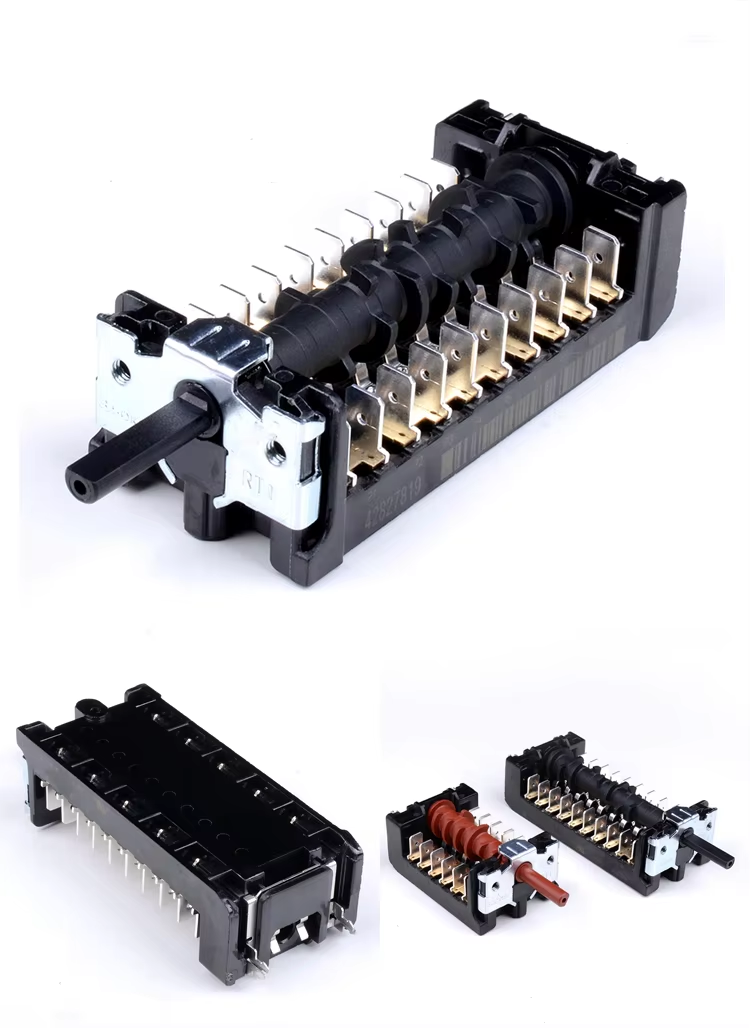

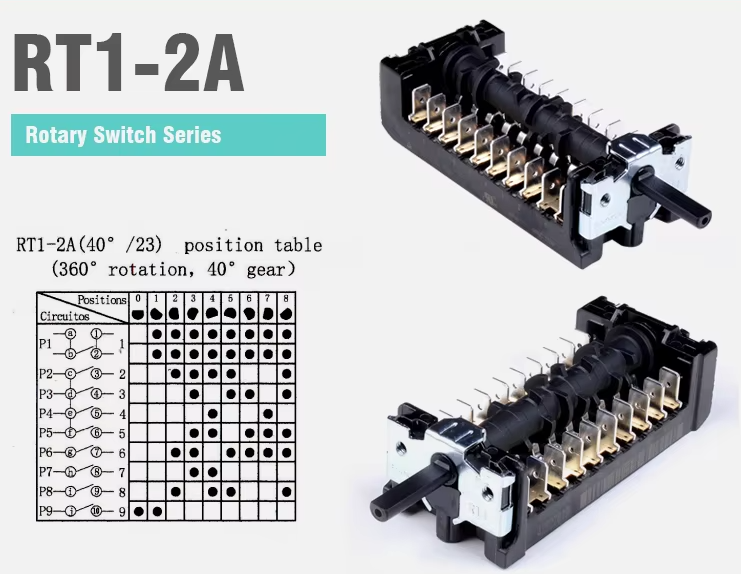

multi position oven rotary selector switch RT1-2A

0 reviews - Write a review

$2.30

Ex Tax: $2.30

Stock: In Stock
Model: SCJ2440058J
Dimensions: 11.40cm x 4.10cm x 4.10cm
SKU: SCJ2440058J

Products Sold: 0

Product Views: 32

Qty

Add to Cart

Buy Now Ask a question

Add to Wish List Compare this Product

Add to Cart

Buy Now

Technical Parameters

Contact Resistance：	100mΩ Max
Insulation Resistance：	500VDC，100MΩ Min
Dielectric Strength：	Terminal and terminal：1500VAC 5s
Dielectric Strength：	Terminal and ground：3000VAC 5s
Operating Temperature：	-25～150°C
Electrical Life：	10000 Cycles
Rating：	16A 250VAC T150(TUV);16RA 125/250VAC T150(UL+C-UL)

Contact leg	Beryllium copper alloy
Contact	Silver alloy
Terminals	Brass T=0.8mm
Case	Bakelite
Gear	Bakelite

Rating	16A 250VAC T150(TUV);16RA 125/250VAC T150(UL+C-UL)
Contact Resistance	100MΩ Max
Insulation resistance	100mΩ Max
Electrical life	10000cycles(16A 250VAC T150)
Operating Temperature	-25~150°C
Voltage proof	Between terminals in one open circuit/terminals in different circuit 1500VAC for 1 Min; Between terminals and axis 3000VAC for 1 Min;
Operating torque	0.2±0.05N · m

Description

multi position oven rotary selector switch RT1-2A
