$0.90
Ex Tax: $0.90
401 or more $0.70
801 or more $0.60
1201 or more $0.50
  • Stock: In Stock
  • Model: SCJ2600015C
  • SKU: SCJ2600015C
Products Sold: 0
Product Views: 39
This product has a minimum quantity of 5
  • Durable Construction: The Mushroom Emergency Push Button Switches are made from high-quality plastic and metal materials, ensuring a long-lasting and reliable performance.
  • Compliance with International Standards: This product has obtained certifications from CCC, CE, ROHS, and ISO9001, guaranteeing its safety and quality for use in various applications.
  • Customizable Switch Combinations: The switch offers multiple combinations, including 1NO1NC, 1NO, 2NO2NC, and 2NO, allowing for flexibility in meeting the specific needs of users.
  • Water and Dust Protection: With an IP53 rating, this switch provides protection against dust and water ingress, making it suitable for use in harsh environments.
  • Suitable for Various Applications: As a user mentioned, this product can be used in various settings, including electrical equipment, machinery, and more, thanks to its 10A current rating and 220V voltage rating.
  • Technical Parameters
LED
NO
Whether the smart
NO
IP level
IP53
Switch Combination
1NO1NC, 1NO, 2NO2NC, 2NO
Material
Plastic+Metal
Operation type
Momentary/latching
Head shape
emergency push button switch
Hole Size
22mm
Certification
CCC CE ROHS ISO9001
  • Description

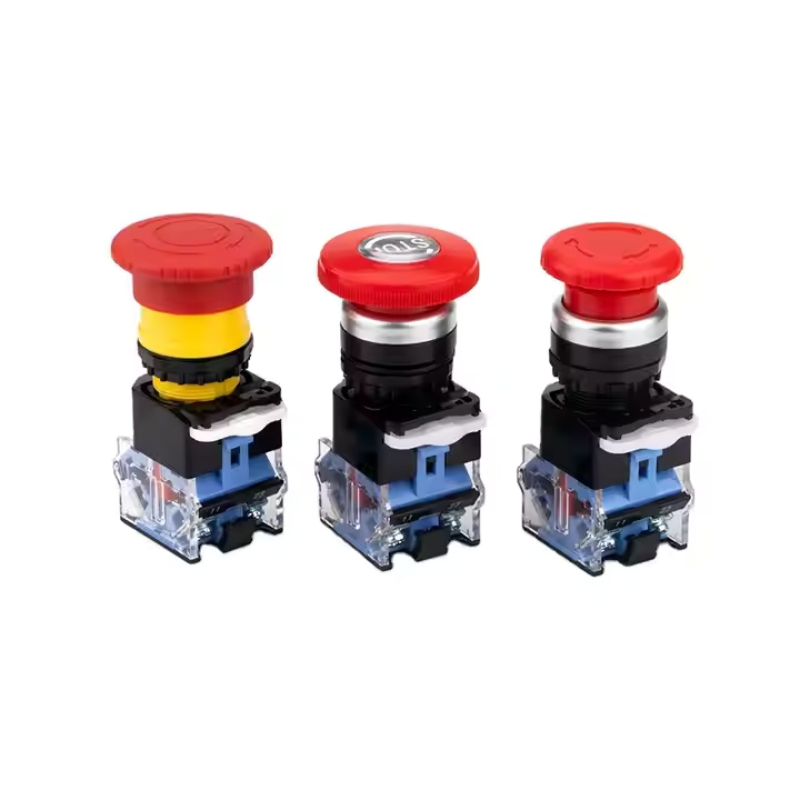

Mushroom Emergency Push Switches Mushroom Head Stop Push Button Switches


Mounting diameter
22mm
Operation type
momentary/Latching switch
Switch Combination
1NO 1NC/2NO/2NC
Switch rating
10A
Mechanical life
momentary :More than 2000,000 times / Latching:More than 1000,000 times
Electrical life
More than 500,000 times
Connection method
screw anklet connection;wire diameter: 2 * 1.5mm welded wire connection; 6.3 * 0.8mm
Max. voltage
220V
Head color
Red, Green, Blue, Yellow, White, Black

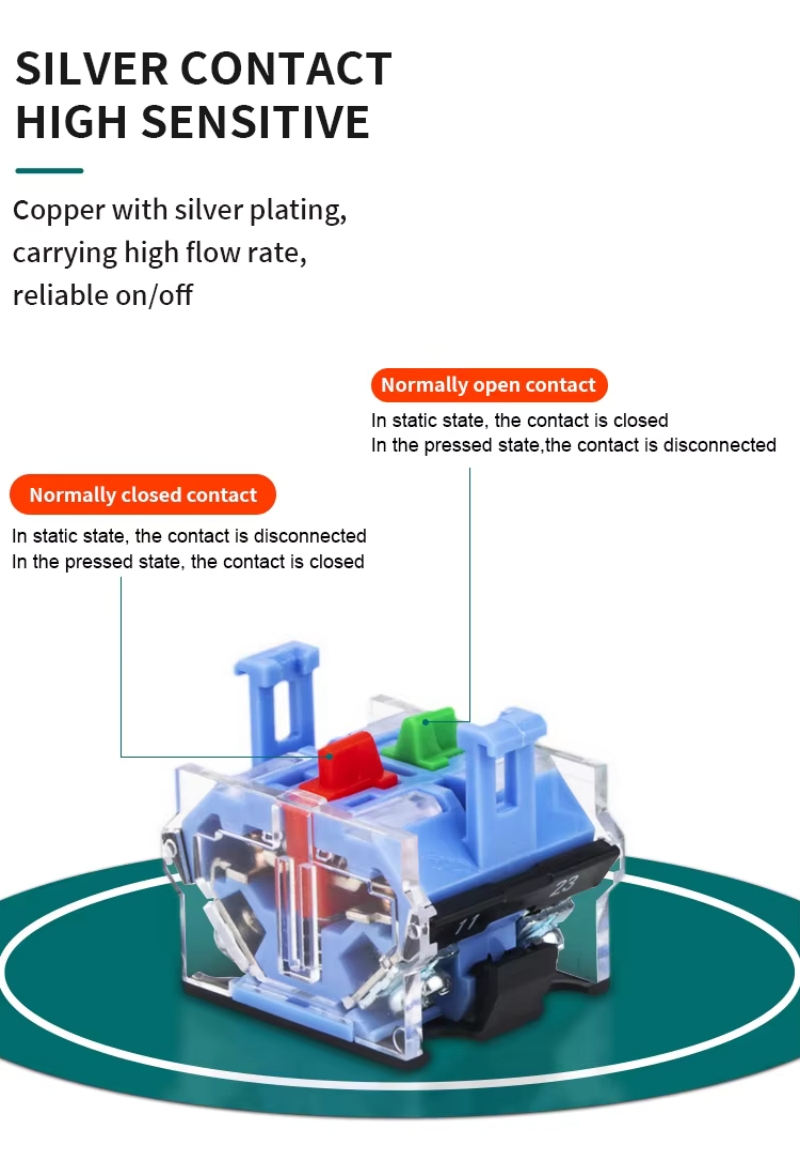

contact material
silver alloy
