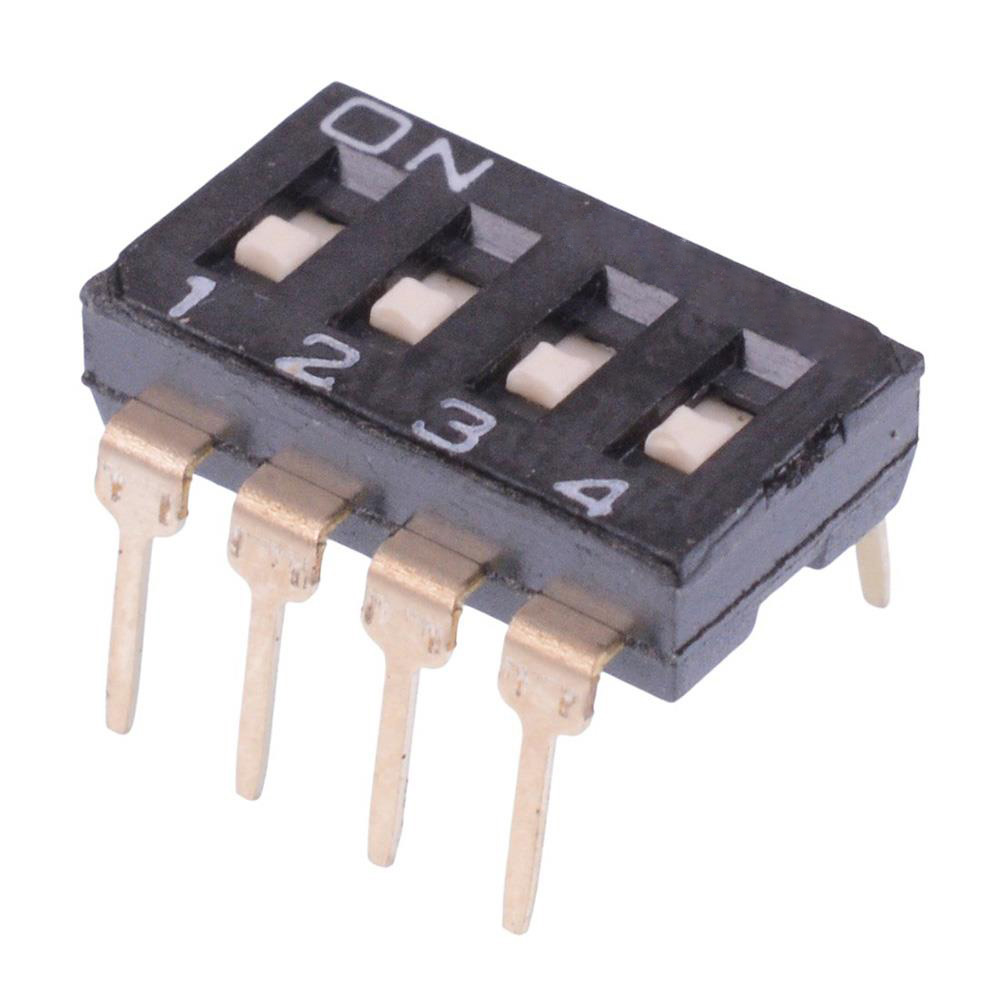

NDIR-04S 4-Way 2.54mm Low Profile PCB Through Hole DIP Switch SPST

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Black
Contact Configuration	SPST
Contact Material	Gold Plated Brass
Contact Rating	100mA 50VDC
Current Rating	25mA
Electrical Life	2,000 Cycles
Material	UL94-V0
Mounting Style	Through Hole
Number of Positions	2
Number of Ways	4
Operating Temperature	-20°C to +85°C
Pitch	2.54mm
Product Series	NDI
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	24VDC

Description

The NDIR-04S is a 4 way through hole DIP switch featuring SPST contacts and gold plated terminals. The switch features self-cleaning contacts and 25mA 24VDC rating, suitable for PCB applications.

Recessed actuator

4 ways

Switch rating: 25mA 24VDC

Contact rating: 100mA 50VDC

Gold plated brass terminals

2.54mm pitch
