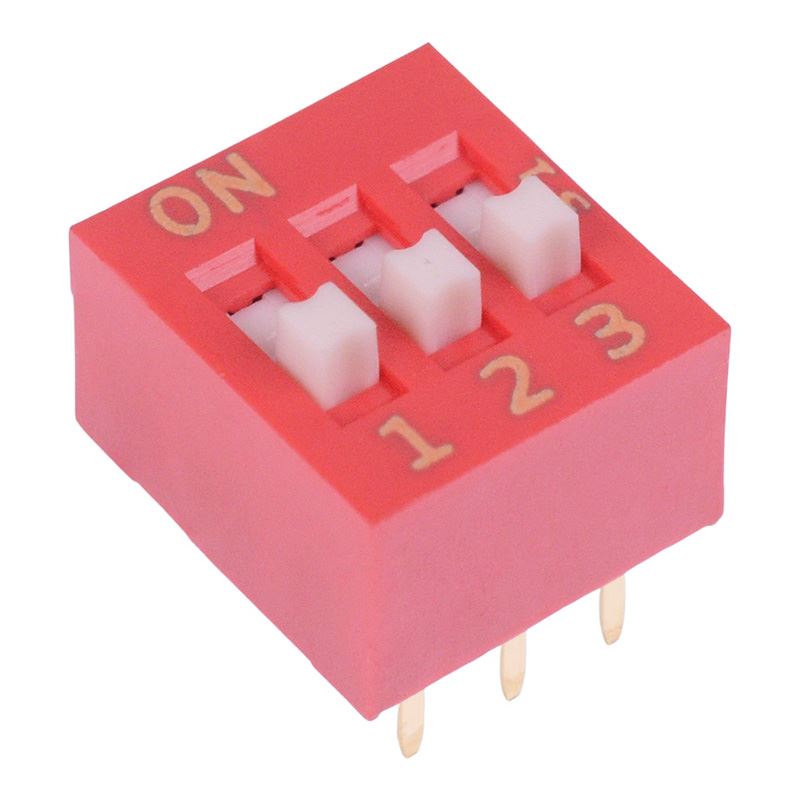

NDS-03-V 3 Way Raised Actuator DIP Switch SPST

Buy Now

Specifications

Attributes List
Actuation	Latching
Colour	Red
Contact Configuration	SPST
Contact Material	Gold Plated
Contact Rating	25mA 24VDC
Current Rating	25mA
Electrical Life	2,000 Cycles
Material	PBT
Mounting Style	Through Hole
Number of Positions	2
Number of Ways	3
Operating Force	1000g Max
Operating Temperature	-40°C to 85°C
Pitch	2.54mm
Product Series	NDS
Switch Operation	On-Off
Terminal Type	Solder
Voltage Rating	24VDC

Description

The NDS-03-V is a 3 way standard profile dual in-line switch manufactured by socoje featuring SPST contacts and 2.54mm pitch. The switch features gold plated self-cleaning contacts, making them suitable for a wide range of through hole applications.

3 way

SPST contacts

Raised actuator

2.54mm x 7.62mm pitch

Switching contact rating: 25mA 24VDC

Non-switching contact rating: 100mA 50VDC

Electrical life: 2000 cycles per switch

Contact material: gold plated
