High Torque Nema 34 Stepper Motor, 6A, 1.8 degree, 4 wires
from
$106.62
Ex Tax: $106.62
- Stock: In Stock
- Model: SCJ009371
- SKU: SCJ009371
Products Sold: 0
Product Views: 502
Ask a Question About This Product
- Description
High Torque Nema 34 Stepper Motor, 6A, 1.8 degree, 4 wires
Brief
2-phase 4-wire Nema 34 stepper motor with high torque, 4.4Nm holding torque, 4.5A phase current and 1.8 degree step angle. These are new motors in perfect working condition. Manufacturer direct sale.
Description
Nema 34 Stepper motor, 4.4Nm in 80mm, 1.8 degree.
Specification
| Basics | Model | SOCOJE280-6004A |
| Matched Driver Model | SCJ009371(Click it to see more info) | |
| Holding torque | 4.4Nm | |
| Current/phase | 6A | |
| Resistance | 0.4Ω | |
| Step angle | 1.8° | |
| Rotor inertia | 1600g.cm² | |
| Weight | 2.4kg | |
| Length | 80mm | |
| Motor leads | 4 | |
| Technical parameters | Step Angle Accuracy | ±5%(full step, no load) |
| Resistance Accuracy | ±10% | |
| Inductance Accuracy | ±20% | |
| Temperature Rise | 80℃ Max.(rated current, 2 phase on) | |
| Ambient Temperature | -10℃～+ 50℃ | |
| Insulation Resistance | 100MΩ Min 500V DC | |
| Dielectric Strength | 500V AC for one minute | |
| Shaft Radial Play | 0.06Max.(450g) | |
| Shaft Axial Play | 0.08Max.(450g) |
Dimensions
Motor Connection

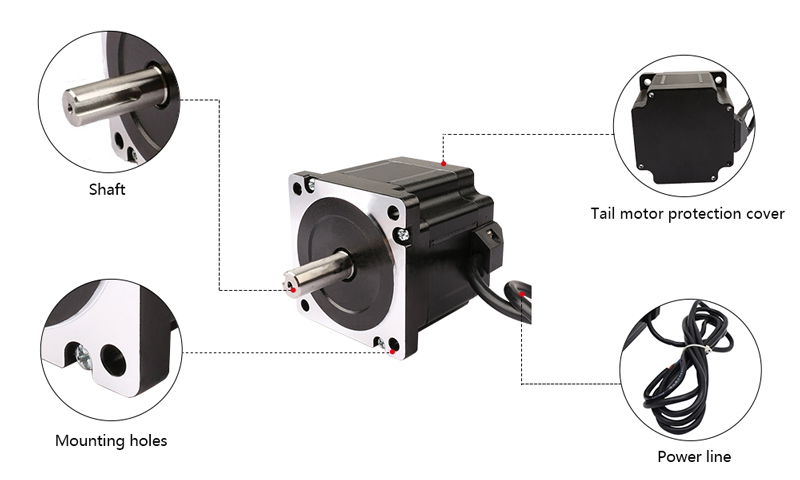

Details
Tips: Stepper motor can rotate continuously?
If the stepper motor rotates for a long time continuously, the temperature of motor will rise. When exceeding the internal heat resistance grade, the insulation performance will be deteriorated. When using the stepper motor, the motor can rotate continuously so long as the surface temperature of motor shell is below 100℃. The temperature of stepper motor can be easily reduced through following methods.
- Select motor with sufficient torque and reduce the running current.
- Heating can be effectively inhibited by reducing the running current. However, corresponding output torque will also be reduced. Therefore, it is necessary to reserve certain margin when selecting the motor.
- Select efficient stepper motor, by optimizing the material, the loss is substantially reduced and heating also can be reduced.
