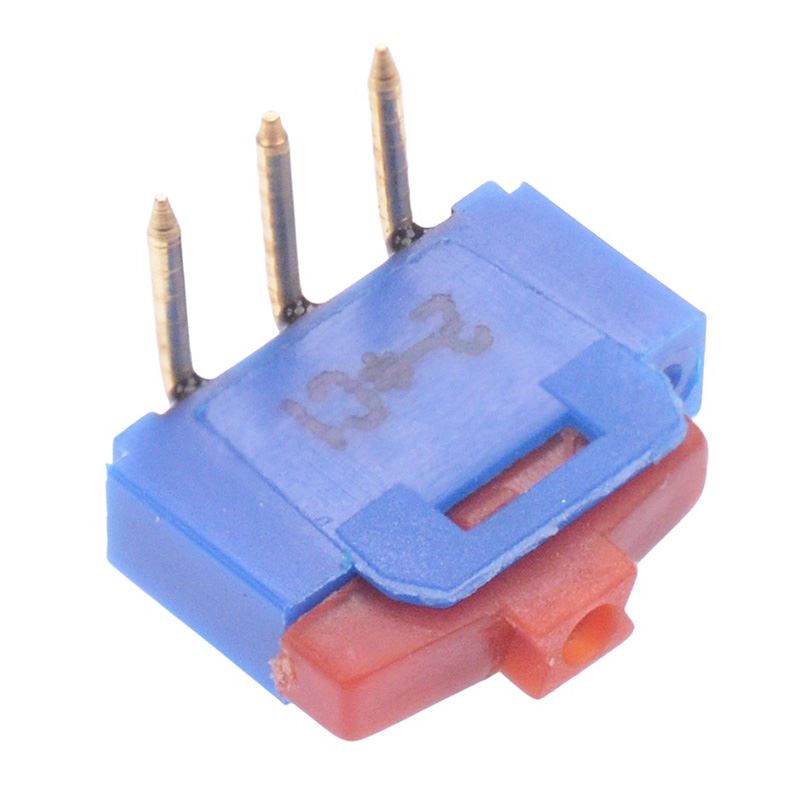

NK236WH On-On Sub-Miniature Raised Actuator Right Angle PCB Slide Switch 500mA 12V SPDT

Buy Now

Specifications

Attributes List
Actuation	Latching
Contact Configuration	SPDT
Contact Material	Gold over nickel
Contact Rating	0.5A 12V
Current Rating	0.5A
Electrical Life	2000 Cycles
Material	PA66
Mounting Style	PCB
Number of Poles	1
Number of Positions	2
Operating Temperature	-40°C to 85°C
Pitch	2.54mm
Product Series	NK
Switch Operation	On-On
Terminal Type	Solder
Voltage Rating	12V

Description

The NK236WH is a right angle sub-miniature slide switch featuring a raised actuator and SPDT contacts, manufactured by socoje. The switch features 2.54mm pitch and is suitable for a wide range of PCB applications due to its small size.

Raised actuator

SPDT contacts

On-On operation

Right angle PCB terminals

Rating: 0.5A 12V

Contact material: gold over nickel

Body dimensions: 10 x 6.5 x 2.6mm (length x height x thickness)
