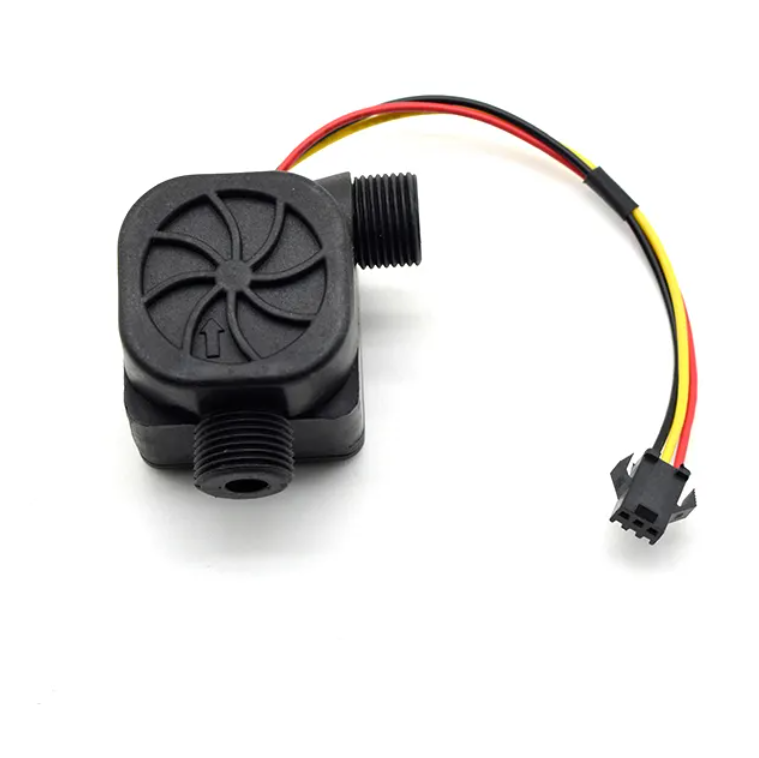

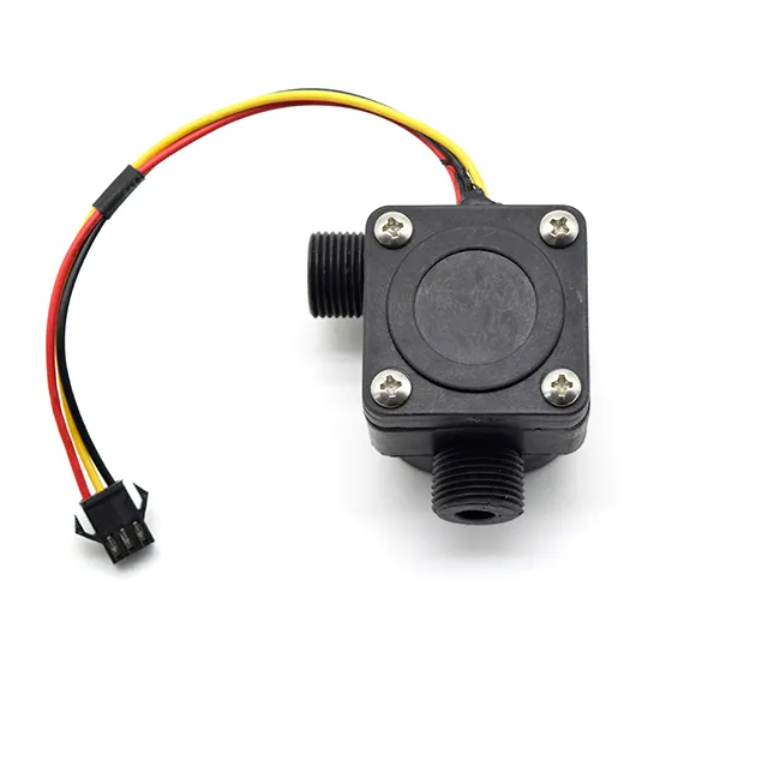

Nylon 1/2 G Thread Level Sensor Switch 0.5~20 L/MIN Hall Effect Water Liquid Plastic Flow Sensor Meter DC4.5-24V

1. Pulse signal output, Hall working principle

2, Waterproof and explosion-proof, heat-resistantand cold resistant

3. Can be used as a metering flow/water flow switch

4.L-shaped structure inlet and outlet water

5. Simple structure and convenient installation

Buy Now

Technical Parameters

Use

flow detection flowmeter

Other attributes

Mounting Type

Any direction

Description

flow rate detection

Model Number

SCJ2300128J

Type

Liquid Flow Sensor

Series

flow sensor

Place of Origin

China

Brand Name

SCJ

Theory

Hall principle

Output

Pulse signal output

Description

flow rate sensor

Using objects

Water, etc

temperature version

≤60℃

voltage range

DC4.5-18V(customizable 24V)

Rated voltage/current

DC5V,≤10mA

pulseDuty Ratio

50%

insulation resistance

>100MΩ

electric strength

AC500V,50Hz

Flow range

0.5-20L/min

pressure resistant performance

≤1.75 Mpa

Packaging and delivery

Selling Units:

Single item

Single package size:

10X10X5 cm

Single gross weight:

0.500 kg

Description

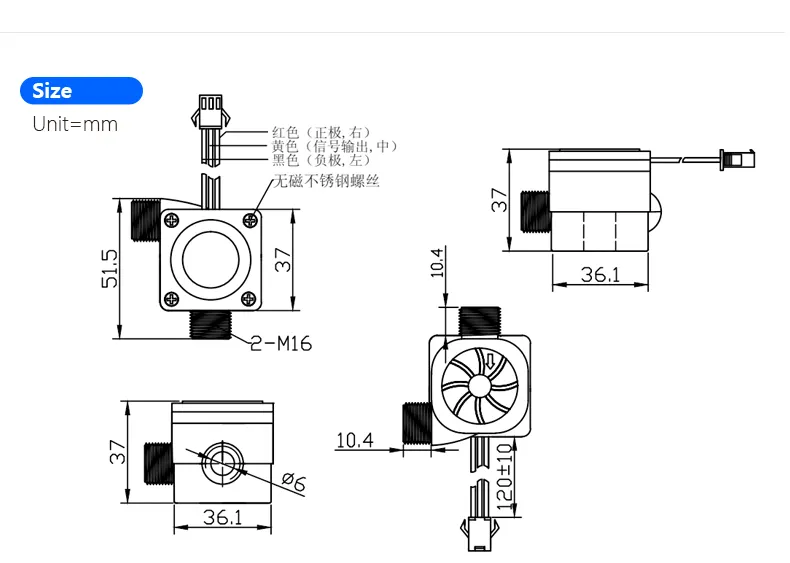

L-shaped structure, nylon with fiberglass, waterproof and explosion-proof, heat-resistant and cold resistant, equivalent to a flow rate of 3 pipes. It is a plastic water flow sensor used for instant electric water heaters and can also be used for water control and metering with other mechanical equipment. The specification is 58 * 38 * 38mm, which can be used for water flow switch and flow metering.
