Off-(On) 16mm Domed Stainless Steel Vandal Resistant Push Button Switch 2A SPST Screw

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	SPST
Contact Rating	2A 48VDC
Current Rating	2A
Illuminated	No
Electrical Life	200,000 Cycles
Illumination Colour	Non Illuminated
Material	Stainless Steel
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +55°C
Panel Cut Out	16mm
Panel Thickness	1-6mm
Switch Operation	Off-(On)
Terminal Type	Screw
Voltage Rating	48VDC

Description

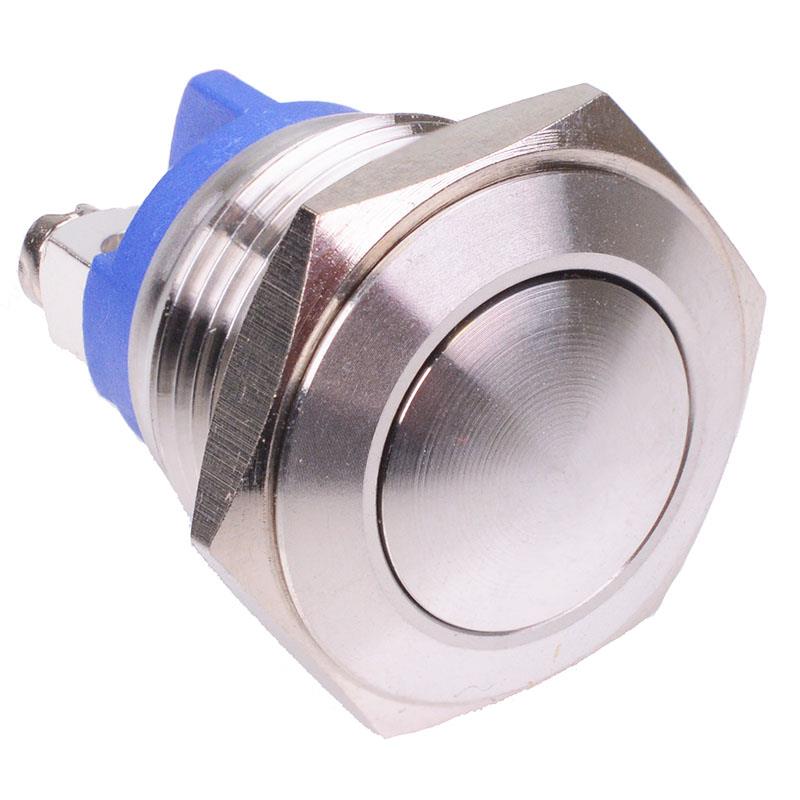

Vandal resistant 16mm push button switch manufactured from stainless steel featuring a domed button and screw terminals. The switch features NO contacts and an IP65 sealed construction, suitable for a wide range of applications.

Momentary action

SPST contacts

16mm panel cut-out

Stainless steel body

Screw terminals

2A 48VDC rating

1,000,000 cycles mechanical life
