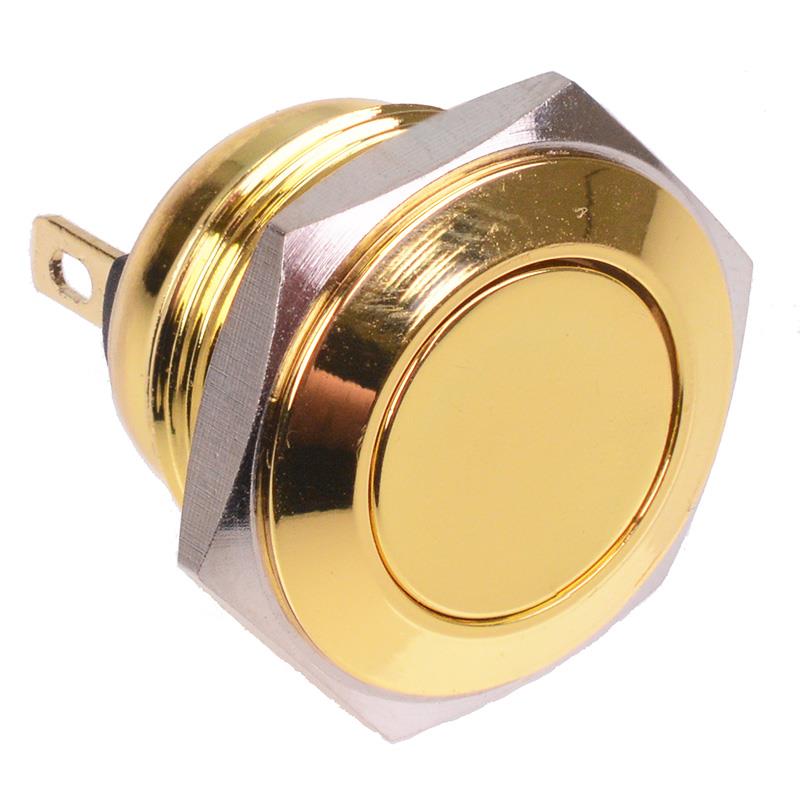

Off-(On) 16mm Gold Vandal Resistant Push Button Switch 2A SPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Colour	Gold
Contact Configuration	SPST
Contact Rating	2A 48VDC
Current Rating	2A
Illuminated	No
Electrical Life	200,000 Cycles
Illumination Colour	Non Illuminated
Material	Gold Plated Brass
Mounting Style	Panel
Number of Positions	2
Protection Level	IP65
Operating Temperature	-25°C to +55°C
Panel Cut Out	16mm
Panel Thickness	1-6mm
Switch Operation	Off-(On)
Terminal Type	Quick Connect
Voltage Rating	48VDC

Description

Vandal resistant push button switch manufactured from gold plated brass featuring a flat button and suitable for a 16mm panel cut-out. The switch features NO contacts and an IP65 sealed construction, suitable for a wide range of applications.

Momentary action

SPST contacts

16mm panel cut-out

Gold plated brass body

2.8 x 0.5mm terminals

2A 48VDC rating

1,000,000 cycles mechanical life
