Off-(On) Momentary 12mm Flat Push Button Switch

Buy Now

Specifications

Attributes List
Actuation	Momentary
MOQ	1
Contact Configuration	SPST
Contact Rating	0.05A 12VDC
Current Rating	0.05A
Illuminated	No
Electrical Life	80,000 Cycles
Material	Stainless Steel
Mounting Style	Panel
Number of Poles	1
Number of Positions	2
Protection Level	IP67
Operating Temperature	-25°C to +65°C
Panel Cut Out	12mm
Panel Thickness	4mm Max
Switch Operation	Off-(On)
Terminal Type	Solder
Voltage Rating	12VDC

Description

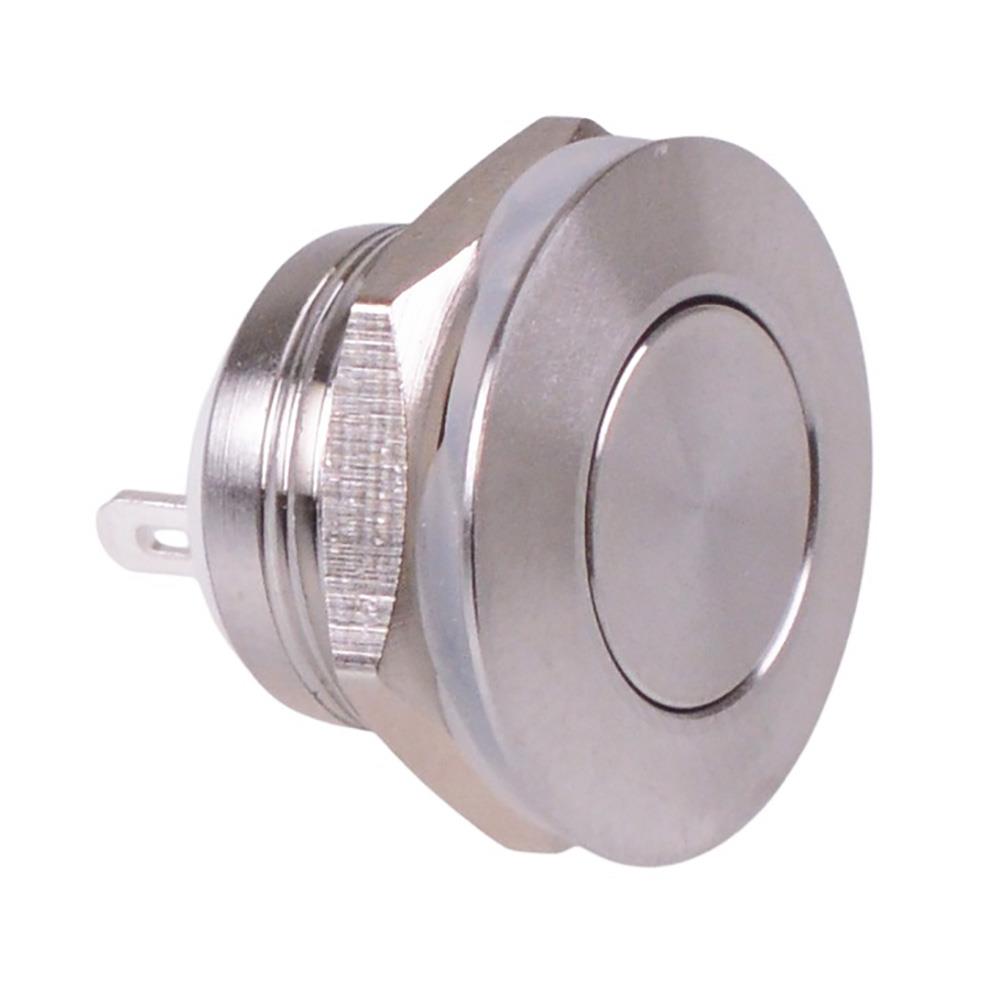

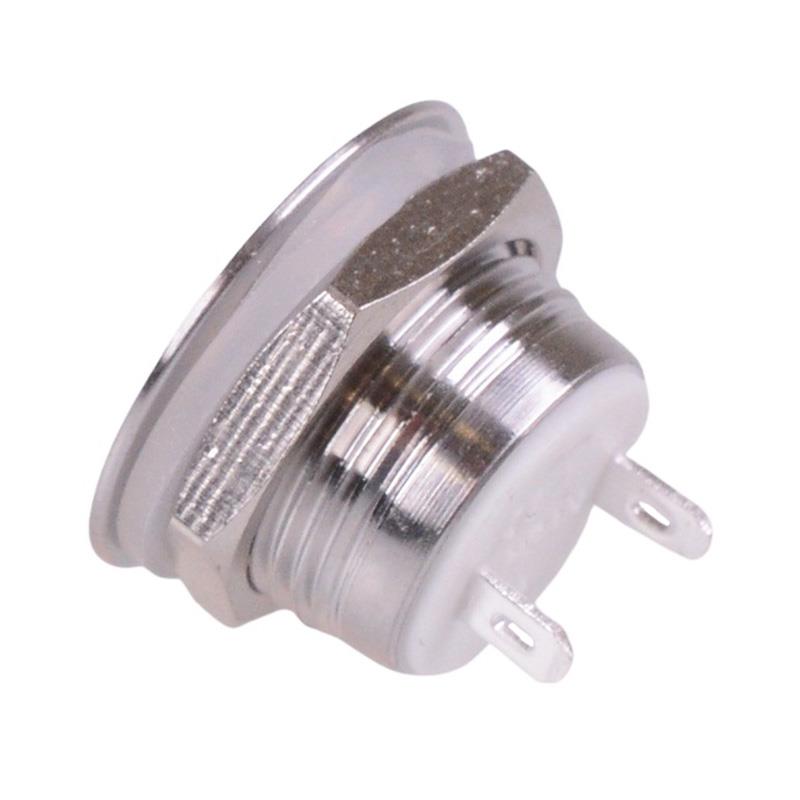

Off-(On) Momentary 12mm Flat Push Button Switch Stainless Steel IP67
Off-(On) momentary push button switch featuring SPST normally open contacts and stainless steel housing with a flat button. The switch features an IP67 protection rating and solder terminals, suitable for a wide range of applications including control panels, automotive, appliances, industrial, etc.

Off-(On) operation

SPST-NO contacts

Stainless steel housing

Solder-lug terminals

IP67 protection rating

Rating: 50mA 12VDC

Panel thickness: 4mm max

Panel cut-out: 12mm

Dimensions: 13.5 x 15.8mm (height x diameter)
