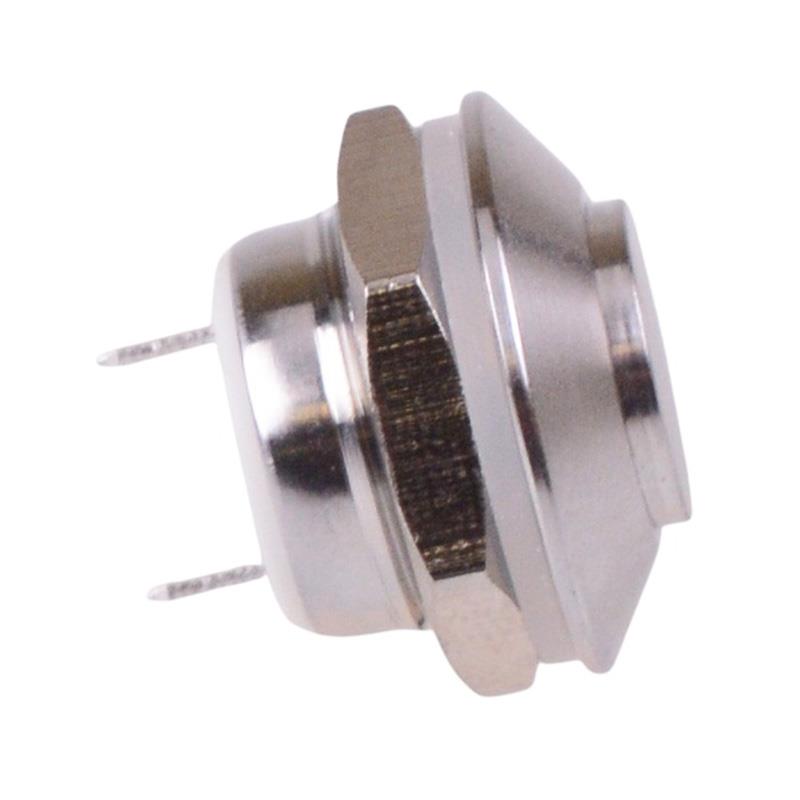

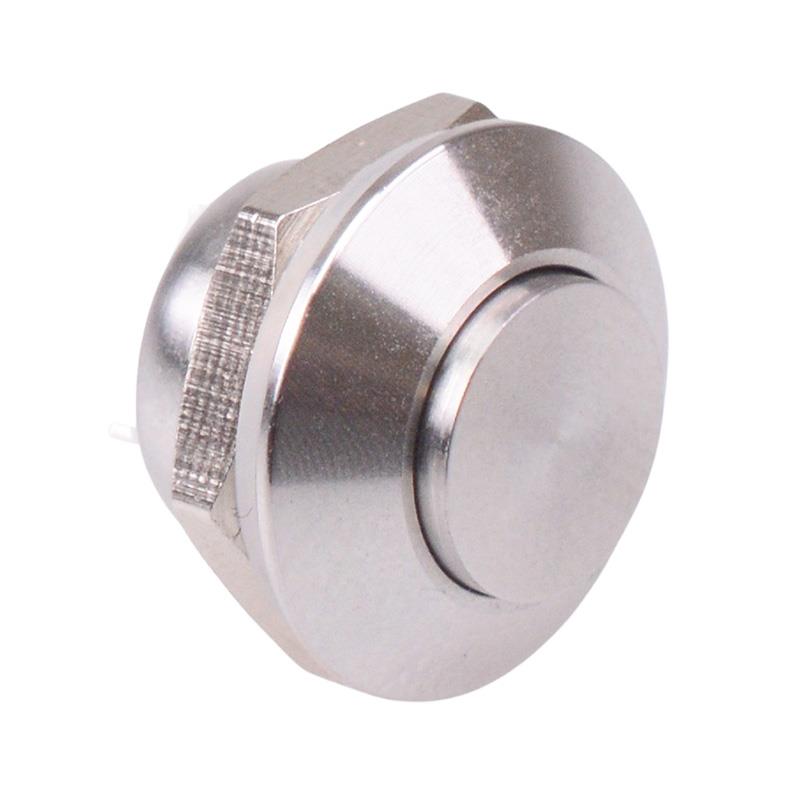

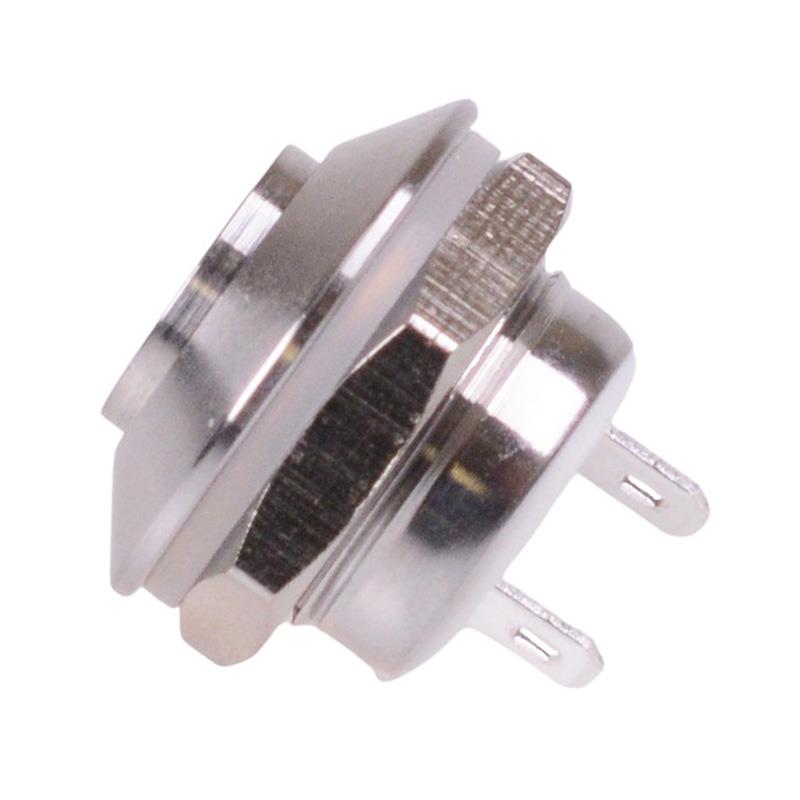

Off-(On) Momentary 12mm Push Button Switch Stainless Steel IP67

Off-(On) Momentary 12mm Push Button Switch Stainless Steel IP67
Off-(On) Momentary 12mm Push Button Switch Stainless Steel IP67
Off-(On) Momentary 12mm Push Button Switch Stainless Steel IP67
Off-(On) Momentary 12mm Push Button Switch Stainless Steel IP67
Off-(On) Momentary 12mm Push Button Switch Stainless Steel IP67
Off-(On) Momentary 12mm Push Button Switch Stainless Steel IP67
Off-(On) Momentary 12mm Push Button Switch Stainless Steel IP67
0 reviews - Write a review
from
$7.04
Ex Tax: $7.04
10 or more $6.27
25 or more $5.91
50 or more $5.56
100 or more $5.27
  • Stock: In Stock
  • Model: SCJ014334
  • SKU: SCJ014334
Products Sold: 0
Product Views: 23
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
Attributes List
ActuationMomentary
MOQ1
Contact ConfigurationSPST
Contact Rating0.05A 12VDC
Current Rating0.05A
IlluminatedNo
Electrical Life80,000 Cycles
MaterialStainless Steel
Mounting StylePanel
Number of Poles1
Number of Positions2
Protection LevelIP67
Operating Temperature-25°C to +65°C
Panel Cut Out12mm
Panel Thickness4mm Max
Switch OperationOff-(On)
Terminal TypeSolder
Voltage Rating12VDC
  • Description
Off-(On) momentary push button switch featuring SPST normally open contacts and stainless steel housing. The switch featuring IP67 protection rating and solder terminals, suitable for a wide range of applications including control panels, automotive, appliances, industrial etc.

  • Off-(On) operation
  • SPST-NO contacts
  • Stainless steel housing
  • Solder lug terminals
  • IP67 protection rating
  • Rating: 50mA 12VDC
  • Panel thickness: 4mm max
  • Panel cut-out: 12mm
  • Dimensions: 14.45 x 15.8mm (height x diameter)

    • Off-(On) Momentary 12mm Push Button Switch Stainless Steel IP67

    Off-(On) Momentary 12mm Push Button Switch Stainless Steel IP67

    Off-(On) Momentary 12mm Push Button Switch Stainless Steel IP67
