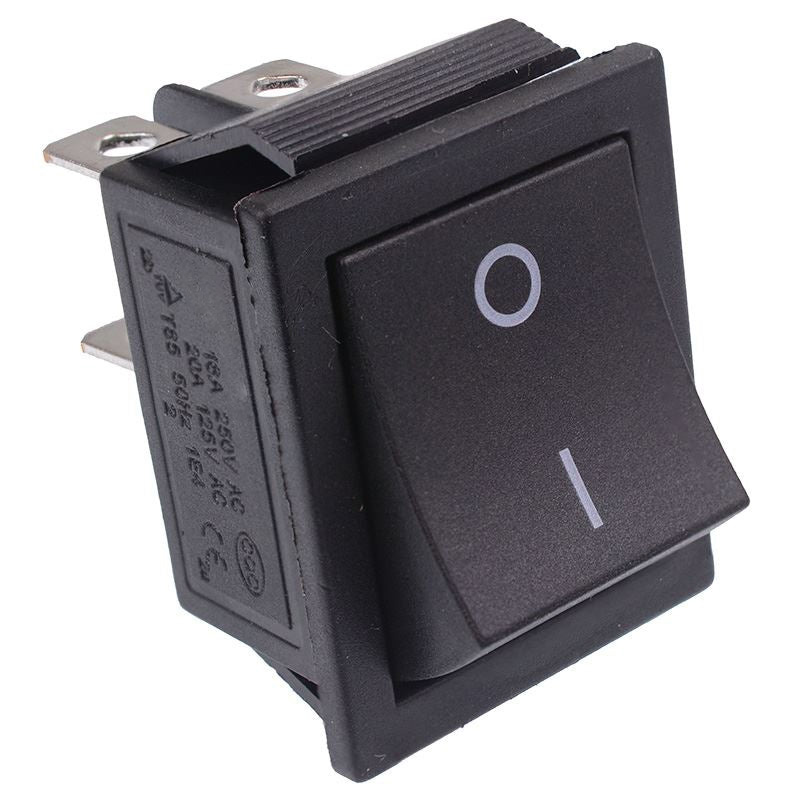

Off-(On) Momentary Rectangle Rocker Switch DPST

Buy Now

Specifications

Attributes List
Actuation	Momentary
Contact Configuration	DPST
Contact Rating	15A 250VAC
Current Rating	15A
Illuminated	No
Electrical Life	10,000+ Cycles
Mounting Style	Panel
Number of Poles	2
Number of Positions	2
Operating Temperature	-25°C to +85°C
Panel Cut Out	28.5 x 21.5mm
Switch Operation	Off-(On)
Terminal Type	Quick Connect
Voltage Rating	250VAC

Description

Momentary rectangle rocker switch with DPST contacts suitable for applications where a higher rated switch is required.

Off-(On) momentary action

DPST contacts

6.3mm quick connect terminals

28.5 x 21.5mm panel cut-out

Maximum current: 15A

Maximum voltage: 250VAC

Dimensions: 35.5 x 31 x 25.3mm (Height x Length x Width)
